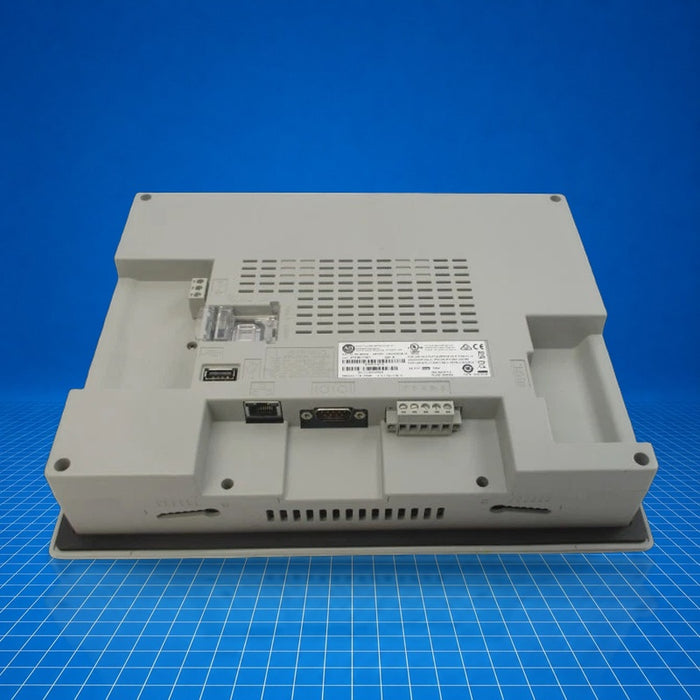

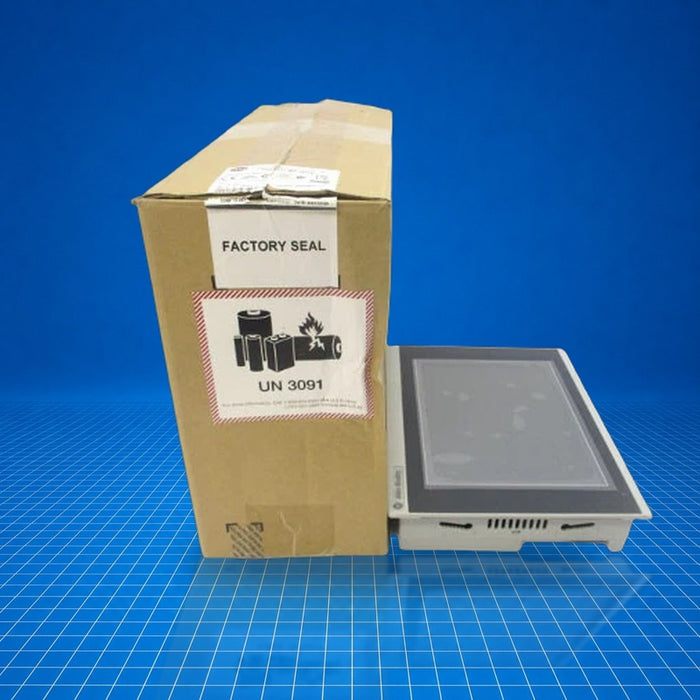

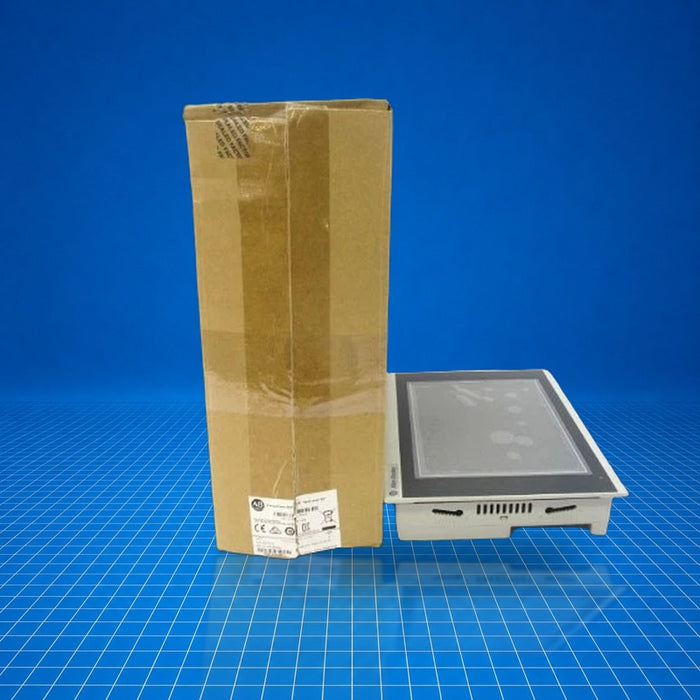

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
2711R-T10T Allen-Bradley
Original price
$1,381.25
-
Original price
$2,327.50
Original price
$1,381.25
$1,381.25
-
$2,327.50
Current price
$1,381.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

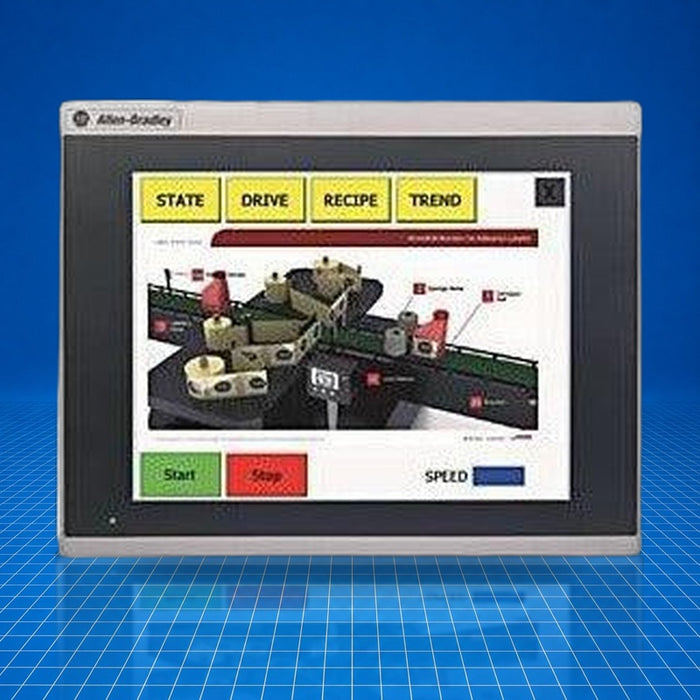

The Allen-Bradley 2711R-T10T is a PanelView 800 family graphic operator interface terminal with a 10-inch color TFT touchscreen. It serves as a human-machine interface (HMI) in industrial control systems, providing operators a graphical display and input interface for Micro800, CompactLogix, and Compact GuardLogix controllers via Ethernet and serial links. Typical installations include standalone machine panels, material handling equipment, food and beverage packaging machines, and air-handling units.
Best Suited For
- Panel-mounted operator interface with Micro800 or CompactLogix controllers
- Machine-level HMI in standalone or OEM equipment
- Applications requiring Ethernet and serial communication
- Environments with standard 24 V DC control buspower
Display resolution
800 × 600 pixels
Display size
10 in.
Power consumption (max)
14 W
Weight (approx)
1.64 kg
Cut-out dimensions (HxW)
206 × 269 mm
Technical Specifications
I/O & Electrical
Input voltage range
24 V DC (nominal; see install instructions for 18…32 V DC range)
Power consumption (max)
14 W (0.48 A @ 24 V DC)
Communication & Power
Ethernet
10/100 Mbps
Serial
RS-232 and RS-422/485 (isolated)
Physical & Environmental
Display area (WxH)
211.2 × 158.4 mm
Weight
1.64 kg (3.62 lb)
Dimensions (HxWxD)
225 × 287 × 55 mm (8.9 × 11.3 × 2.2 in.)
Cut-out dimensions (HxW)
206 × 269 mm (8.1 × 10.6 in.)
Front bezel protection
IP 65 / NEMA 4X / 12 / 13
Certifications
CEcULus ListedC-TickKCRCMRoHS
