2711T-T10R1N1 Allen-Bradley
Original price
$2,475.00
-
Original price
$7,200.00
Original price
$2,475.00
$2,475.00
-
$7,200.00
Current price
$2,475.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

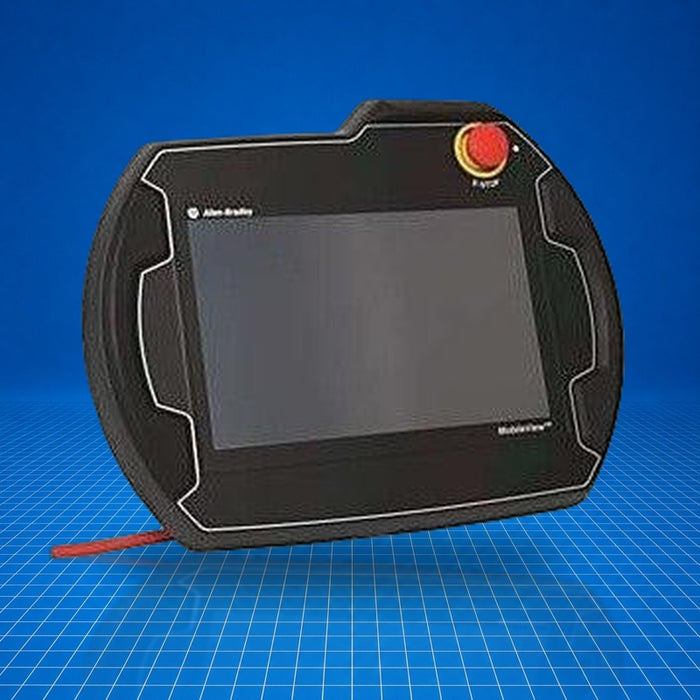

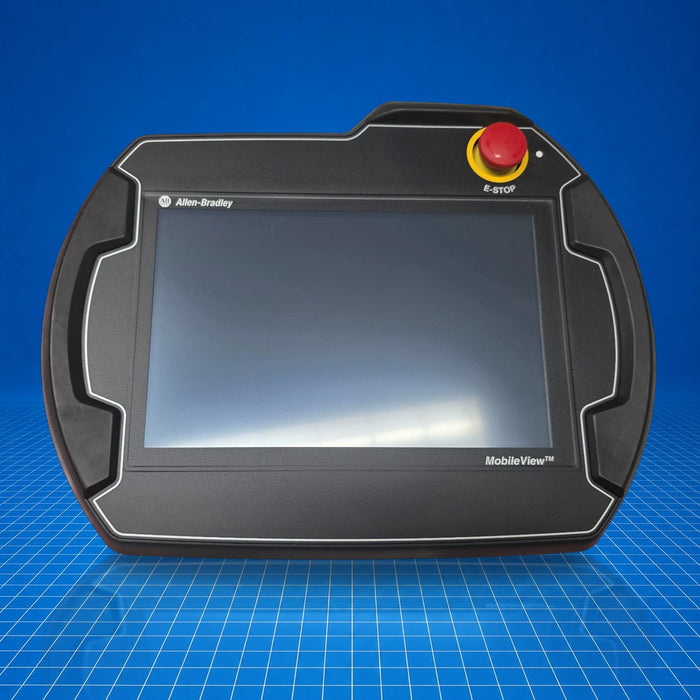

The Allen-Bradley 2711T-T10R1N1 is a MobileView Tethered Operator Terminal in the 2711T family. It functions as a handheld HMI (Human-Machine Interface) providing a 10.1-inch resistive touch screen, emergency-stop and enabling switch controls, and Ethernet communications. In a control system it serves as an operator interface for monitoring and control, particularly in mobile or on-machine applications where tethered, rugged interaction is required. The terminal supports Windows Embedded and is suited for factory automation tasks requiring portable HMI access.
Best Suited For
- On-machine operator interface
- Portable field HMI applications
- Emergency-stop and enabling switch control tasks
- Integration with FactoryTalk View ME environments
Display & Touch
10.1-in WXGA (1280 × 800), resistive touch
Memory
4 GB DRAM / 32 GB Flash
Power Input
24 V DC (19.2…30 V DC), 500 mA
Network
10/100 Ethernet
Emergency-Stop
2-circuit red E-stop + 3-position enabling switch
Technical Specifications
I/O & Electrical
Rated supply voltage
24 V DC
Supply voltage range
19.2…30 V DC
Input current
500 mA @ 24 V DC
Peak inrush current
5.6 A (max)
Communication & Power
Ethernet
10/100 Ethernet
USB drive slot
Yes (USB 2.0)
Physical & Environmental
Display size & resolution
10.1 in, 1280 × 800 WXGA
Processor & memory
Intel Atom E3815 1.46 GHz; 4 GB DRAM / 32 GB Flash
Operating temperature
0…50 °C (typical load); UL: 0…45 °C under full load
Storage temperature
-25…+70 °C
Relative humidity
5…95 % non-condensing
Vibration (operating)
5…150 Hz; 5-8.4 Hz @ 3.5 mm p-p; 8.4-150 Hz @ 1 G
Shock (operating)
15 G, ½ sine 11 ms
Altitude
0…2000 m
Dimensions (Ø×D)
349 mm Ø; 70 mm depth without handle; 110 mm with handle
Weight
1550 g (3.42 lb)
Operating system
Windows Embedded Standard 7 SP1
