Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

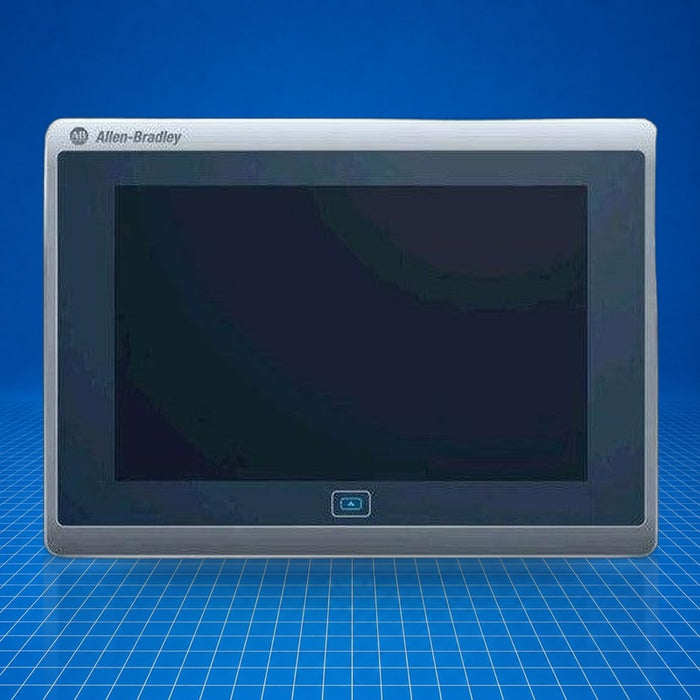

The 2713P-T12WD1 is an Allen-Bradley PanelView 5310 graphic terminal. It provides a 12.1-inch widescreen (16:10) color TFT display with resistive touch for operator interaction. It integrates with Studio 5000 View Designer and Logix Designer environments and connects to ControlLogix or CompactLogix controllers via EtherNet/IP. Typical uses include machine control panels, process monitoring, and HMIs in industrial environments.

Best Suited For

  • Visualization and control in Logix-based systems
  • Standalone operator stations with EtherNet/IP connectivity
  • Environments requiring NEMA 4X/12/13 or IP66 front-side protection
  • Applications needing 12-inch wide touch display for HMI operations
Display size
12.1 in
Display resolution
1280 × 800 (WXGA)
Power consumption (max/typ)
16 W / 12 W
EtherNet/IP port
1
Memory (RAM / storage)
1 GB RAM / 1 GB non-volatile

Technical Specifications

I/O & Electrical

Input voltage (nominal)
24 V DC (18…30 V DC), non-isolated
Max power consumption
16 W
Typical power consumption
12 W
Power dissipation
41 btu/hr

Communication & Power

EtherNet/IP port
One 10/100Base-T, Auto MDI/MDI-X
USB host port
0.5 A @ 5 V DC (Type A)
USB device port
High-speed 2.0 (Type B, future release)
SD card slot
One (supports up to 32 GB)

Physical & Environmental

Front-side rating
NEMA 4X, 12, 13; IP66
Operating temperature
0 °C to 50 °C
Non-operating temperature
-25 °C to 70 °C
Relative humidity
5…95 % non-condensing
Shock (operating)
15 g @ 11 ms
Vibration
0.012 pk-pk 10…57 Hz; 2 g 57…500 Hz
Altitude (operating)
Sea level to 2 000 m
Dimensions (W × H × D)
340 × 246 × 69.5 mm (front width × front height × overall depth)
Panel cutout (W × H)
312 × 218 mm
Weight (approx)
3.65 kg

Certifications

NEMA 4XNEMA 12NEMA 13IP66

Certified as of April 29 2026; front-side protection ratings include NEMA 4X/12/13 and IP66.
