2715P-T19CD Allen-Bradley

Name: 2715P-T19CD Allen-Bradley
Brand: Allen Bradley
SKU: 2715P-T19CD
Price: 4680.0 USD
Availability: InStock

$0.00 - $4,680.00

$4,680.00

$0.00 - $4,680.00

$4,680.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (5) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

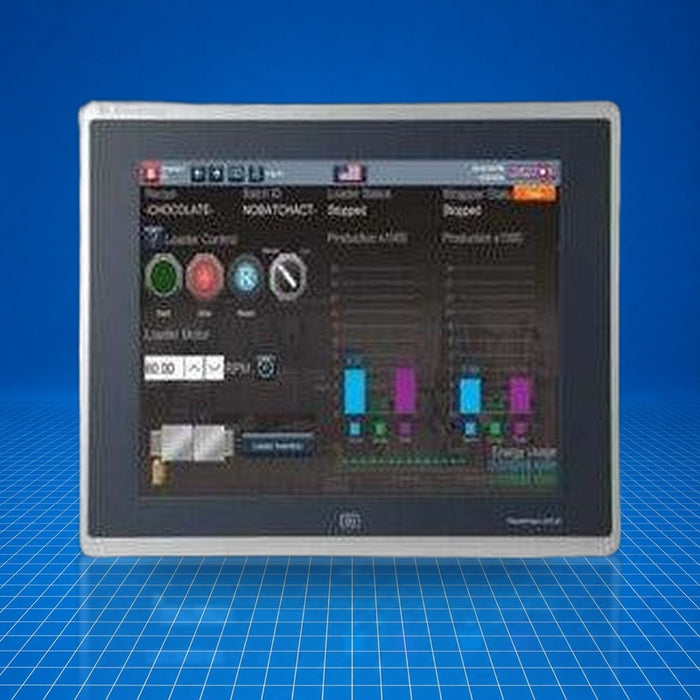

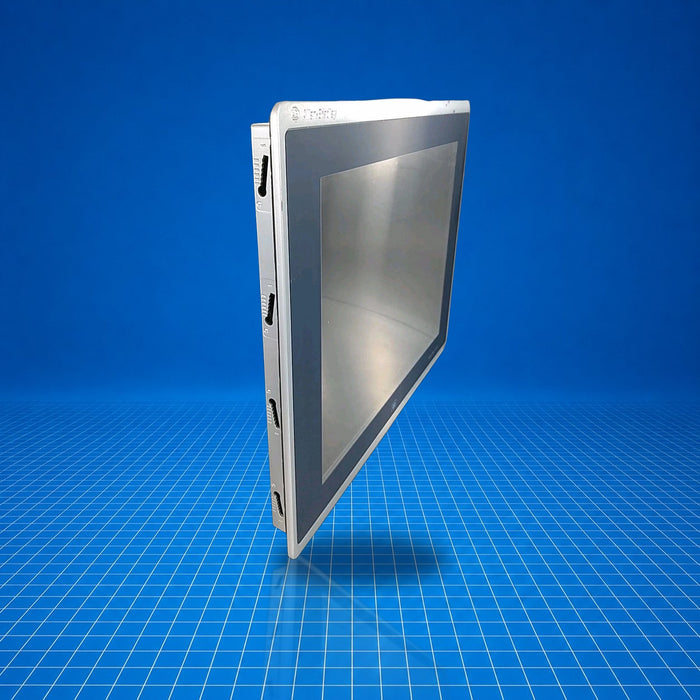

The 2715P-T19CD is an Allen-Bradley PanelView 5510 graphic terminal featuring a 19 in, 5:4-aspect-ratio TFT touch display with resistive touch input, intended for operator interface in industrial control systems. It integrates two Ethernet ports (10/100 Base-T, DLR-capable) and supports EtherNet/IP, enabling visualization and interaction within Logix-based applications. The unit includes 1 GB RAM and 1 GB nonvolatile storage for project files, and is designed for on-machine or panel mounting in moderate industrial environments. Typical applications include batch control systems, machine visualization, and discrete manufacturing HMI tasks. Part number: 2715P-T19CD.

Best Suited For

EtherNet/IP-based Logix systems
On-machine HMI stations
Panel-mounted operator interfaces
Industrial visualization in discrete/batch control

Display size & resolution

19 in, 1280 × 1024 (SXGA)

Touch technology

Analog resistive touch

Memory

1 GB RAM; 1 GB non-volatile user storage

Power consumption (typical/max)

30 W / 43 W

Ethernet ports

2 × 10/100 Base-T, Auto MDI/MDI-X (DLR-capable)

Technical Specifications

I/O & Electrical

Input voltage (nominal)

24 V DC (18…30 V DC)

Power consumption, max

43 W

Power consumption, typical

30 W

Backlight power consumption, typical

18 W

Power dissipation

41 btu/hr

Inrush current, typical

7 A

Communication & Power

Ethernet ports

2 × 10/100 Base-T, Auto MDI/MDI-X (supports DLR, linear or star)

Protocols supported

EtherNet/IP, TCP/IP

USB host ports

2 × USB 2.0 Type A (0.5 A @ 5 V DC)

USB device port

1 × USB 2.0 Type B

SD card slot

1 × SD card (supports 1784-SDx)

Touch technology

Analog resistive (actuation: 1 mon presses; operating force: < 100 g)

Physical & Environmental

Display

19 in, 1280 × 1024 SXGA, 24-bit color, 300 nits

Backlight

LED, non-replaceable, 50 000 h at 40 °C to half-brightness

Front protection

IP66, NEMA 4X/12/13

Operating temperature

0 °C to unspecified (front)

Non-operating temperature

-25 °C

Shock

15 G @ 11 ms (operating); 30 G @ 11 ms (non-operating)

Vibration

0.012 in p-p, 10-57 Hz; 2 G peak, 57-500 Hz

Relative humidity

5…95 % non-condensing

Altitude (operating)

2000 m

Conformal coating

True

Enclosure color

Dark Blue (Pantone 432C)

Dimensions (front WxH)

485 mm × 411 mm

Cutout dims (approx)

457 mm × 383 mm

Mounted depth / overall depth

64 mm / 69.5 mm

Weight (approx)

7.5 kg

Mounting

Wall/direct mounting supported; rail mounting not supported

Certifications

CEUKCAKCRoHSEtherNet/IP conformanceMarine class approvals

Conforms to CE (EMC), UKCA, KC, RoHS, marine classification approvals (ABS, BV, DNV-GL, LR, KRS, RINA) and EtherNet/IP (ODVA) conformance. See Rockwell Automation Technical Data and documentation for certificate references.
