2715P-T9WD Allen-Bradley

Name: 2715P-T9WD Allen-Bradley
Brand: Allen Bradley
SKU: 2715P-T9WD
Price: 2812.48 USD
Availability: InStock

$2,812.48 - $3,009.60

$2,812.48

$2,812.48 - $3,009.60

$2,812.48

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (5) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

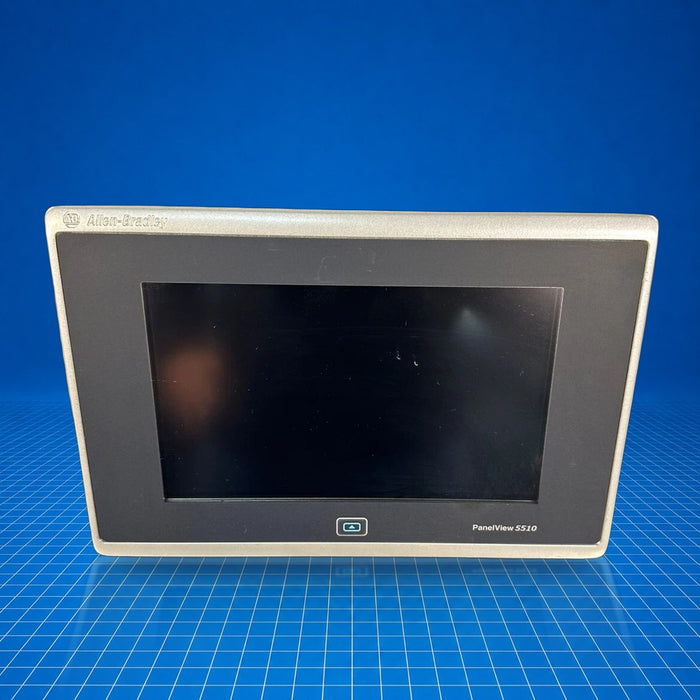

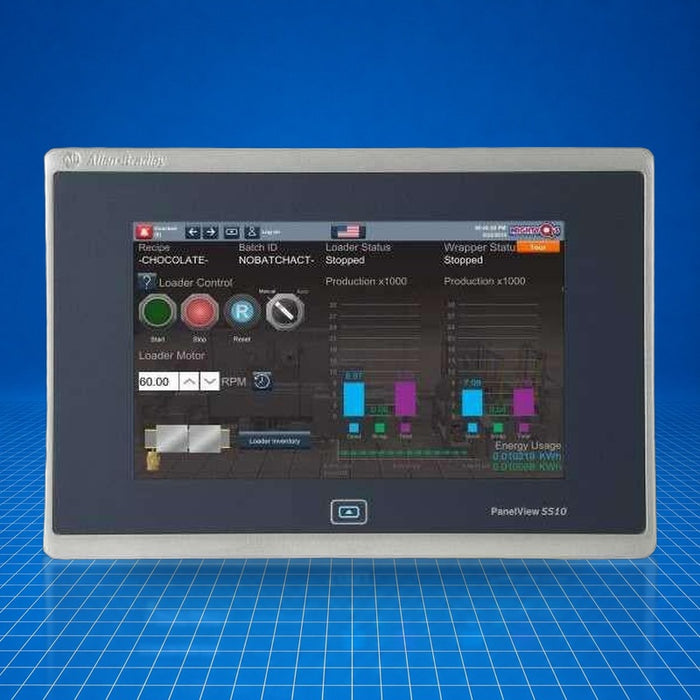

The 2715P-T9WD is an Allen-Bradley PanelView 5510 graphic terminal featuring a 9 in. wide resistive-touch color display. It functions as an operator interface in control systems, providing local monitoring and command input over EtherNet/IP networks. The module supports project storage and process visualization, commonly used in manufacturing machines and machine-level control panels. Typical applications include OEM equipment panels and integration with CompactLogix or ControlLogix controllers. Part number appears: 2715P-T9WD.

Best Suited For

Integration with ControlLogix 5570 or CompactLogix L-series controllers
Machine-level operator interface in industrial panels
Applications requiring EtherNet/IP communication
Environments needing IP66/NEMA 4X front protection

Display resolution

800 × 480 WVGA

Screen size

9 in. diagonal

Memory

1 GB RAM, 1 GB nonvolatile

Supply voltage

24 V DC (nominal 18…30 V DC)

Technical Specifications

I/O & Electrical

Supply voltage

24 V DC (nominal 18…30 V DC)

Power consumption, typical

14 W

Power consumption, maximum

24 W

Backlight power consumption, typical

4 W

Power dissipation

48 btu/hr

Communication & Power

Ethernet ports

Two 10/100 Base-T (EtherNet/IP, DLR, linear or star)

USB host port

0.5 A @ 5 V DC (Type A)

USB ports

Two USB 2.0 Type A hosts; one USB 2.0 Type B device

Physical & Environmental

Degree of protection

NEMA 4X, 12, 13; front IP66

Operating temperature

0 °C min

Non-operating temperature

-25 °C

Shock (operating/non-operating)

15 G @ 11 ms / 30 G @ 11 ms

Vibration

0.012 in peak-peak (10-57 Hz), 2 G peak (57-500 Hz)

Relative humidity

5…95 % non-condensing

Altitude, operating

2000 m

Dimensions (front WxH)

280 mm × 190 mm

Cut-out (approx)

252 mm × 162 mm

Overall depth

69.5 mm (mounted depth 64 mm)

Weight

≈ 2.42 kg

Certifications

Korean KCKorean Register of ShippingLloyd's RegisterUL Listed (Hazardous) (-K version)

Certified as of May 19, 2026 with Korean KC, Korean Register of Shipping, Lloyd's Register. Conformal-coated versions (-K suffix) include UL Listed (Hazardous), Korean Register of Shipping, Lloyd's Register as of April 29, 2026.
