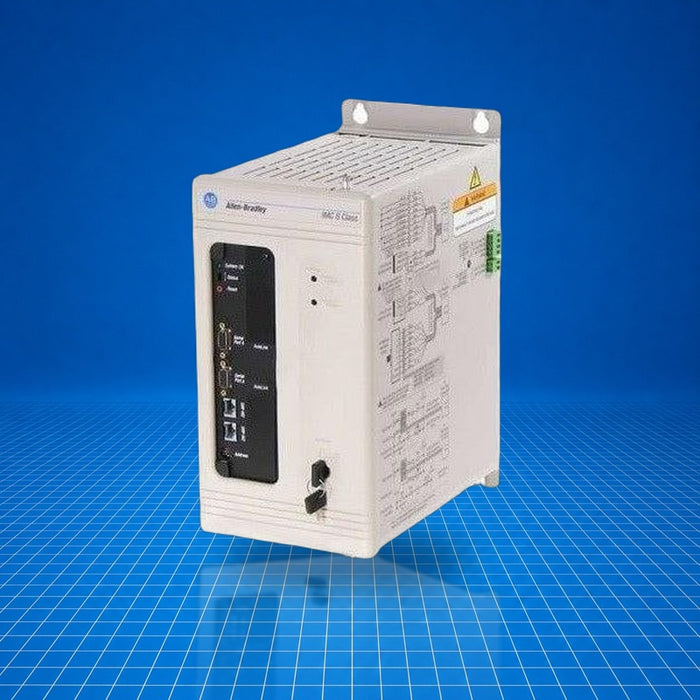

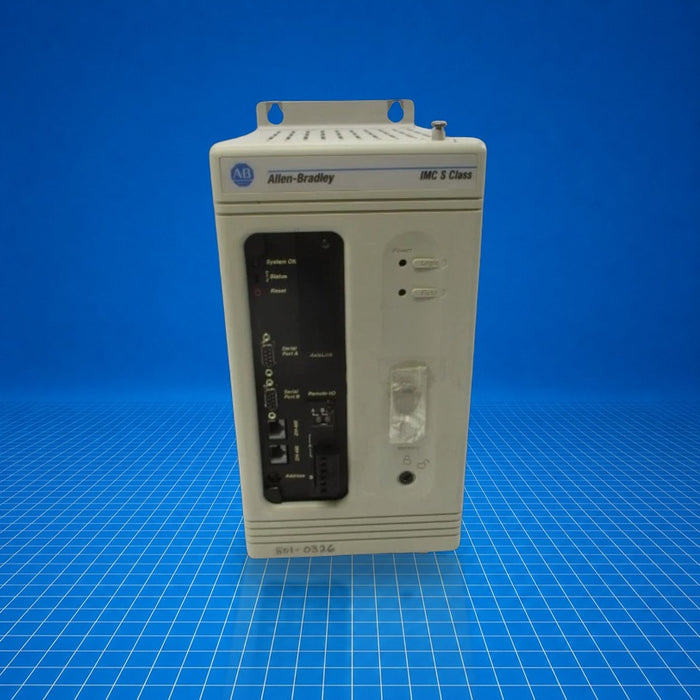

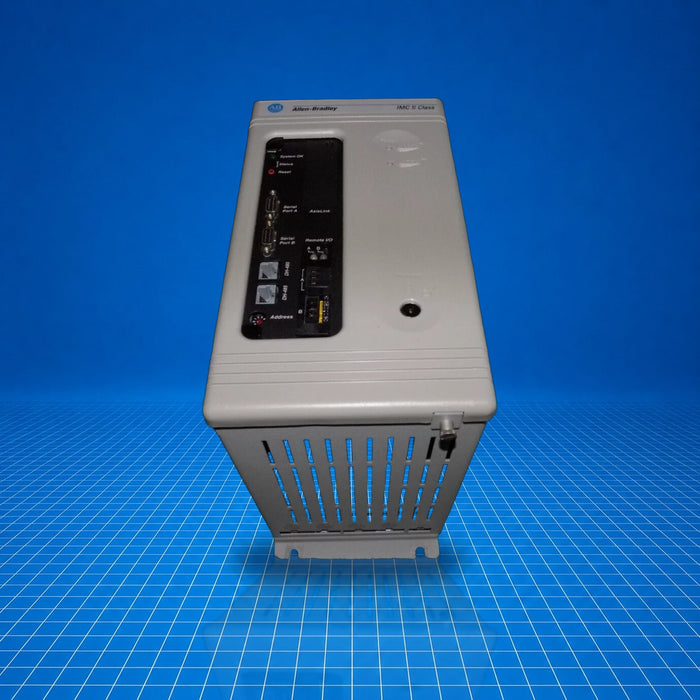

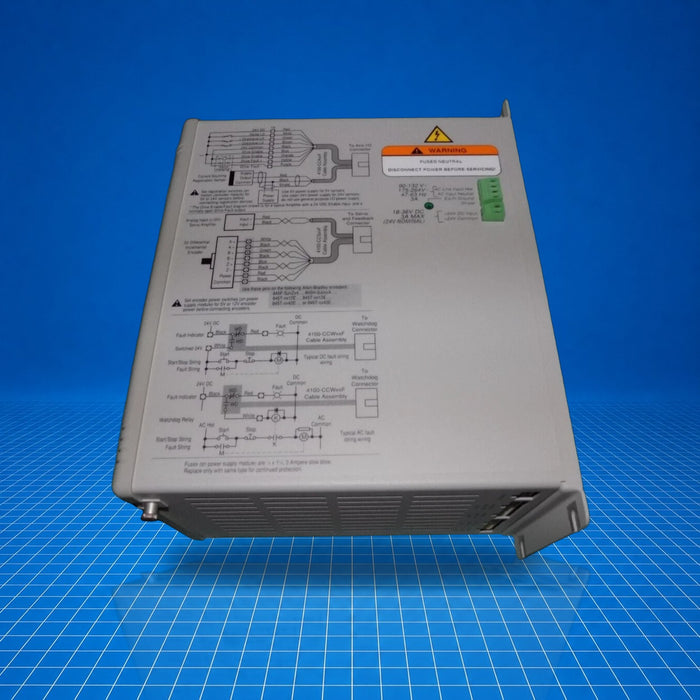

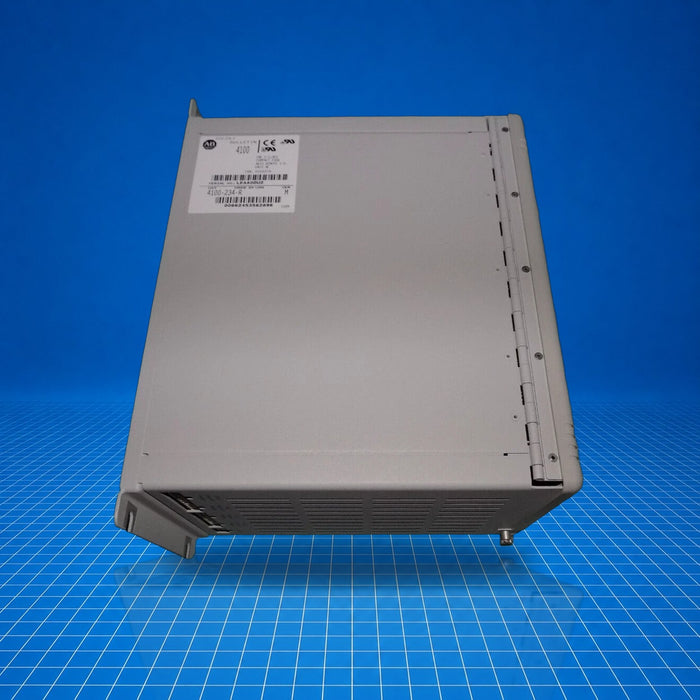

4100-234-R Allen-Bradley

Name: 4100-234-R Allen-Bradley
Brand: Allen Bradley
SKU: 4100-234-R
Price: 6121.5 USD
Availability: InStock

$6,121.50 - $17,371.00

$6,121.50

$6,121.50 - $17,371.00

$6,121.50

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (4) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 4100-234-R is a Compact Motion Controller in the Allen-Bradley IMC S Class series. It provides four-axis motion control using an Intel i960 (80960SB) microprocessor at 16 MHz, suitable for standalone installations within distributed machine control architectures. Typically used for synchronization of servo axes, sequence control, and integration into programmable logic control systems, the 4100-234-R serves applications in packaging, material handling, and general-purpose motion control. Part number 4100-234-R is a discontinued unit but remains applicable in refurbishment, legacy system maintenance, and exact-match replacement scenarios.

Best Suited For

Four-axis motion sequence control
Standalone motion control without axis linking
Legacy machine repair and refurbishment
Synchronization of servo amplifier modules

Axes

4

Input voltage (AC)

90-132 or 175-264 V AC

Dedicated discrete inputs

20

Communication

Serial Port + Remote I/O

Discontinued status

Yes

Technical Specifications

I/O & Electrical

Dedicated discrete inputs

20 (optically-isolated)

I/O power input

5-40 V DC (24 V nominal)

Analog outputs

4 isolated outputs, ±10 V DC or ±150 mA, 6-bit resolution, ±80 mV max offset at 220 Ω

Communication & Power

AC input voltage

90-132 or 175-264 V AC

Microprocessor

Intel 80960SB at 16 MHz

Communication ports

Serial Port; Remote I/O option

Physical & Environmental

Weight

17.00 lbs (7.71 kg)

Packaging/Platform

Compact / Stand Alone

Battery-backed memory

Up to 10 years data retention (16-bit float, battery-backed volatile memory)
