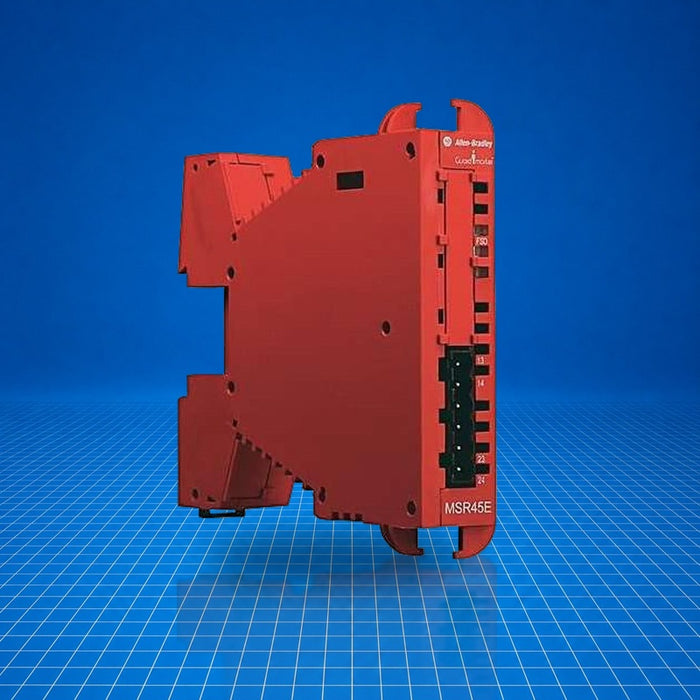

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
445L-104794-B068 Allen-Bradley
Original price
$0.00
-
Original price
$675.00
Original price
$675.00
$0.00
-
$675.00
Current price
$675.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
445L-104794-B068 is a customer-configurable variant of the Allen-Bradley MSR42 safety relay base module. It serves as the control unit in safety light curtain systems or guarded access applications, accepting inputs and generating safety outputs for downstream safety relays or contactors. The module installs on a 35 mm DIN rail and is used in industrial machine safety systems where controlled restart or safe muting functions are required. Part number appears to denote configuration options applied by the customer.
Best Suited For
- GuardShield light curtain systems control
- Start/restart safety applications (MSR42 functionality)
- DIN-rail safety relay integration
- Customer-specific safety module configurations
Switching current
10 mA-8 A
Max switching voltage
AC 250 V / DC 300 V (2 NO)
Continuous current (single contact)
8 A
Electronic lifespan
105 cycles (AC 15, 2 A, 230 V AC)
Mechanical lifespan
106 cycles
Technical Specifications
I/O & Electrical
Switching current
10 mA-8 A
Maximum switching voltage
AC 250 V / DC 300 V for 2 NO; AC 120 V / DC 170 V for 3 NO or 2 NO/1 NC
Continuous current
8 A (single contact); 6 A with one extension module; 4 A with two or more
Switching capacity (DC 13, 24 V)
6 A
Communication & Power
Switch-on delay
< 3 s
Switch-off delay
< 40 ms
Certifications
EMC DirectiveMachinery DirectiveRoHS
Complies with EMC Directive, Machinery Directive (MD), and RoHS (per EU Declaration of Conformity).
