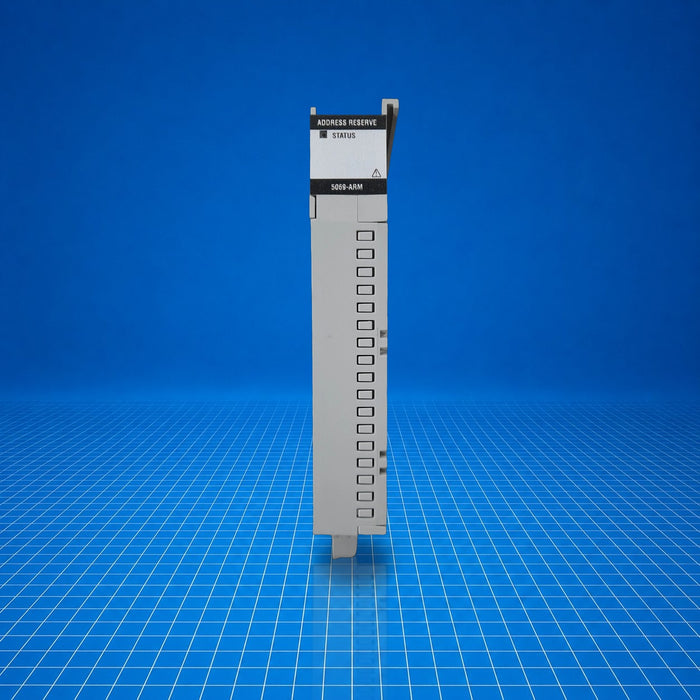

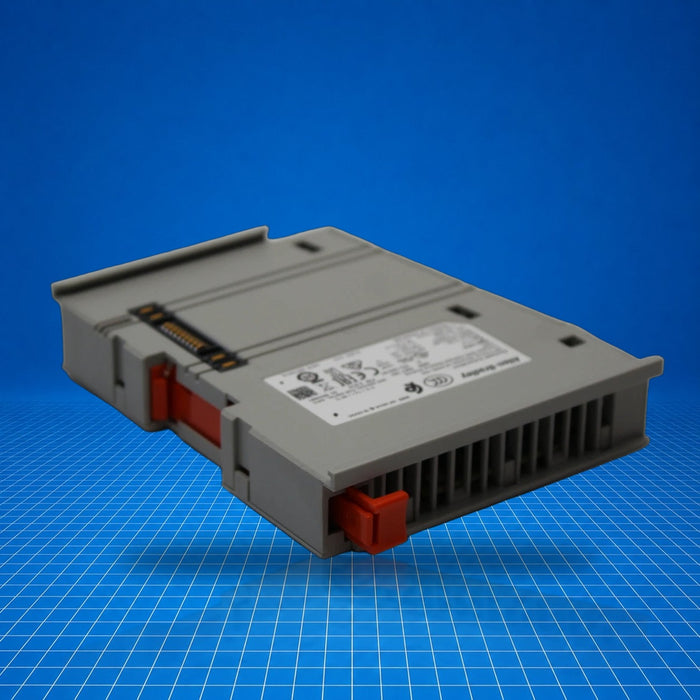

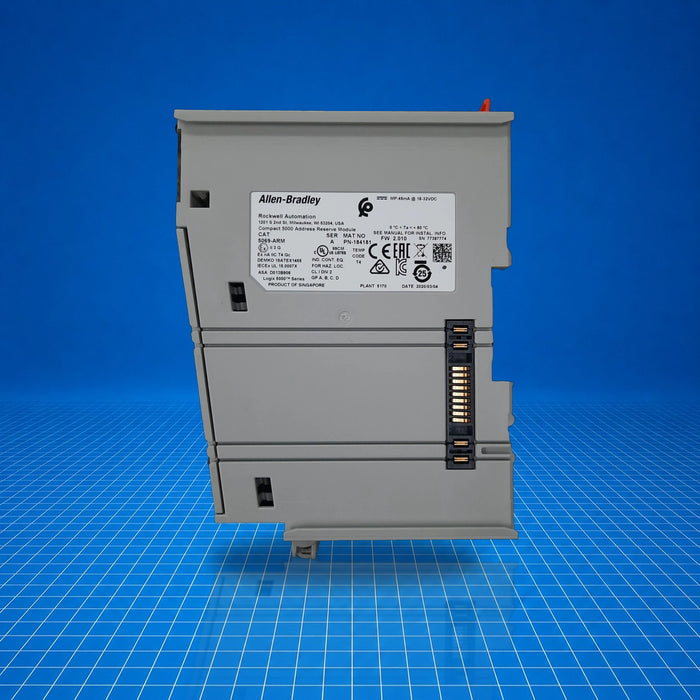

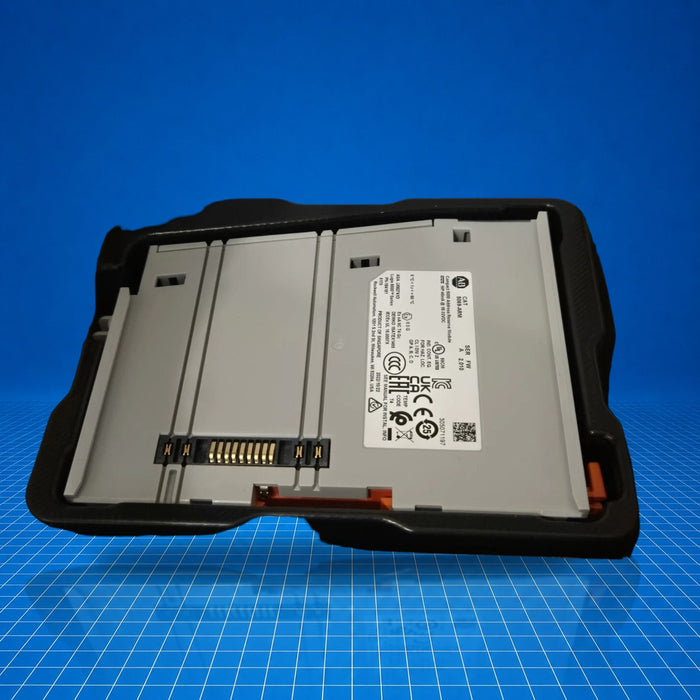

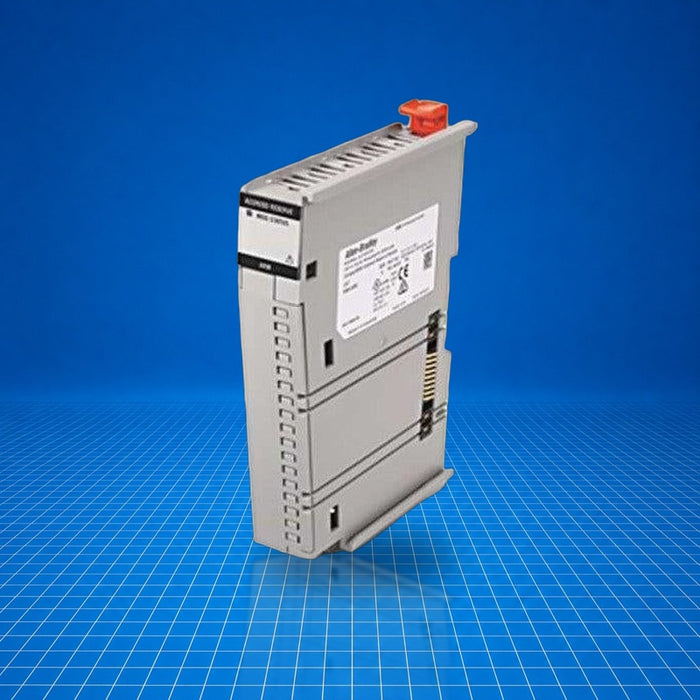

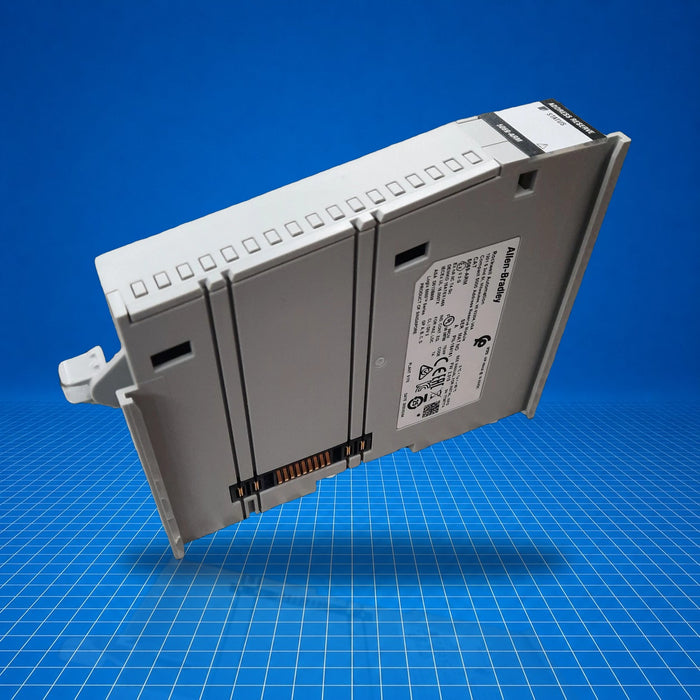

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
5069-ARM Allen-Bradley
Original price
$434.12
-
Original price
$600.00
Original price
$434.12
$434.12
-
$600.00
Current price
$434.12
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 5069-ARM is an Allen-Bradley Compact 5000™ Address Reserve Module used within CompactLogix™ and GuardLogix® 5380 systems. Its role is to reserve a specific slot or node address in the I/O configuration to simplify module replacement or future expansion without forcing controller re-configuration or shutdown. The unit installs on standard 35 mm DIN rail alongside Compact 5000 I/O modules and uses MOD and SA power buses like other modules in that series.
Best Suited For
- CompactLogix and GuardLogix 5380 systems requiring placeholder reservation
- Maintaining I/O configuration continuity during module upgrades
- Minimizing controller download requirements for future installation
- On-machine assembly where modular re-configuration is needed
Power dissipation
1.0 Watts
MOD power rating
45 mA @ 18…32 V DC
MOD passthrough current
9.55 A @ 18…32 V DC
SA passthrough rating
9.95 A @ 0…32 V DC; 9.975 A @ 0…240 V AC, 47…63 Hz
Operating temperature
0…60 °C (32…140 °F)
Technical Specifications
I/O & Electrical
MOD power
45 mA @ 18…32 V DC
MOD power passthrough
9.55 A @ 18…32 V DC
SA power passthrough
9.95 A @ 0…32 V DC; 9.975 A @ 0…240 V AC, 47…63 Hz
Communication & Power
Power dissipation
1.0 Watts
Physical & Environmental
Dimensions (HxWxD)
5.4 × 0.87 × 4.2 in (138 × 22 × 105 mm)
Weight
0.39 lbs (175 g)
Mounting
DIN rail EN 50022 - 35 × 7.5 mm
Operating temperature
0…60 °C (32…140 °F)
Non-operating temperature
-40…+85 °C (-40…+185 °F)
Humidity
5…95% non-condensing
Vibration
5 g @ 10…500 Hz (operating)
Shock (operating)
30 g
Shock (non-operating)
50 g
Emissions
IEC 61000-6-4
ESD immunity
6 kV contact; 8 kV air
Radiated RF immunity
10 V/m, 80 % AM, 80…6000 MHz
North American temp code
T4
UKEX/ATEX temp code
T4
IECEx temp code
T4
Enclosure type
None (open-style)
Certifications
UL 508CSA C22.2 No.142
Certified to UL 508 and CSA C22.2 No. 142 industrial control standards (UL Certificate for 5069-ARM Series A) as of March 18 2015.
