5069-HSC2XOB4 Allen-Bradley
Original price
$1,086.25
-
Original price
$7,920.00
Original price
$1,086.25
$1,086.25
-
$7,920.00
Current price
$1,086.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

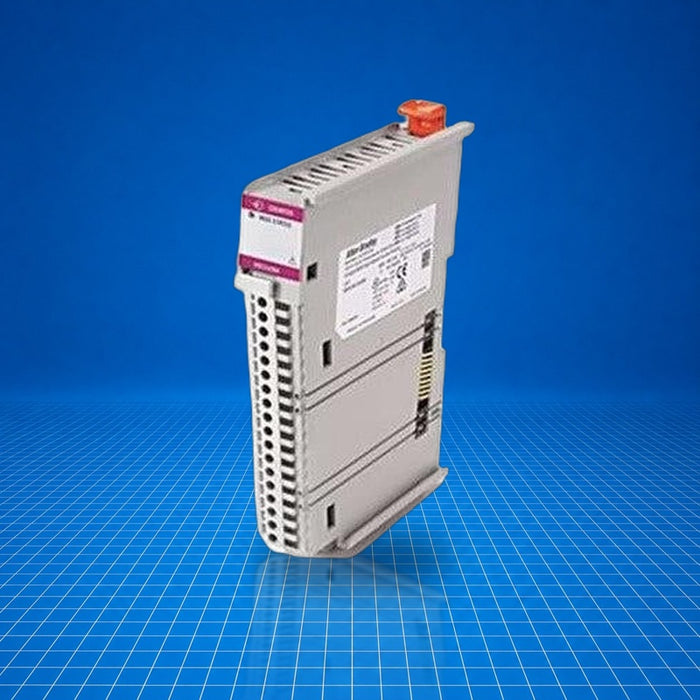

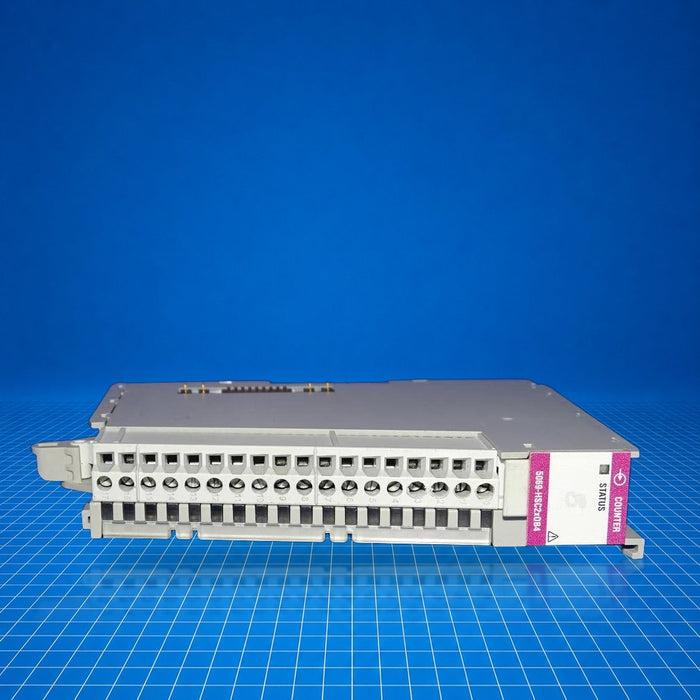

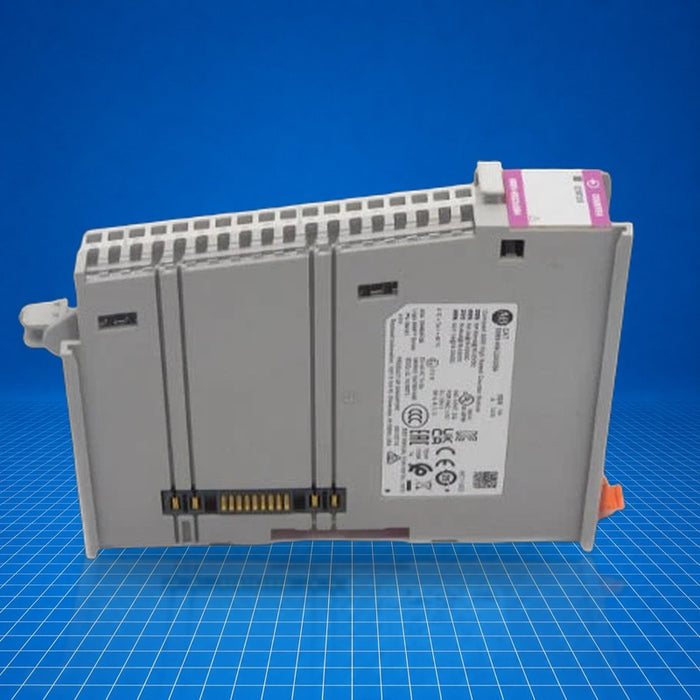

The 5069-HSC2XOB4 is an Allen-Bradley Compact 5000 high-speed counter module designed for the CompactLogix/CompactGuardLogix platform. It provides two quadrature (ABZ) differential inputs and four sourcing DC outputs in a single slot. In a control system, it performs high-speed counting and event-driven output control, typically used in motion-control, encoder interfacing, machine-axis registration and high-speed pulse tracking applications.
Best Suited For
- Interfacing encoders in motion-control loops
- High-speed pulse counting and totalizing
- On-machine encoder feedback processing
- Discrete event counting with gated outputs
Inputs
2 quadrature (ABZ) differential
Outputs
4 sourcing DC channels
Voltage category
12/24 V DC source
Power dissipation
3 W
Operating temperature
0…60 °C
Technical Specifications
I/O & Electrical
Input voltage range
3…32 V DC (counter inputs)
Output voltage range
10…32 V DC
On-state voltage, nominal
24 V DC
On-state voltage drop, max
<0.3 V DC
On-state current, min
4 mA (per module)
Off-state current, max
1 mA
Input current, max
8 mA
Reverse voltage protection
32 V DC
Overvoltage protection, max
36 V (fuse-protected)
Communication & Power
MOD power
50 mA @ 18…32 V DC
MOD power passthrough
9.55 A @ 18…32 V DC
SA power
3 A @ 18…32 V DC
SA power passthrough
9.95 A @ 10…32 V DC
Physical & Environmental
Dimensions (H × W × D)
145 × 22 × 105 mm
Weight, approx
175 g
Enclosure type
None (open-style)
Operating temperature
0…60 °C
Non-operating temperature
-40…- °C
Relative humidity
5…95 % non-condensing
Vibration
5 G @ 10…500 Hz
Shock (operating/non-operating)
30 G / 50 G
Certifications
China CCCRCMATEXIECExUL ListedEurasian Economic Community
Certified as of May 17 2026 under: China CCC, Australian RCM, ATEX, IECEx, Registro Italiano Navale, UL Listed, Eurasian Economic Community.
