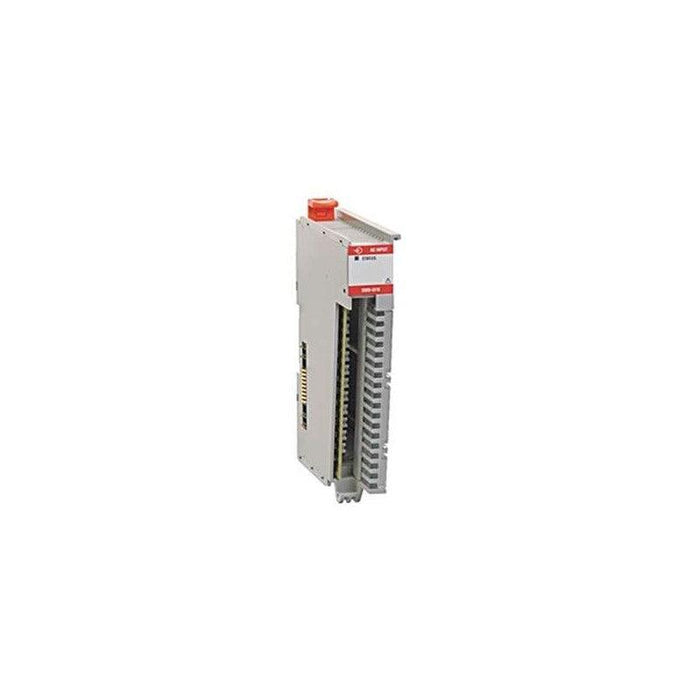

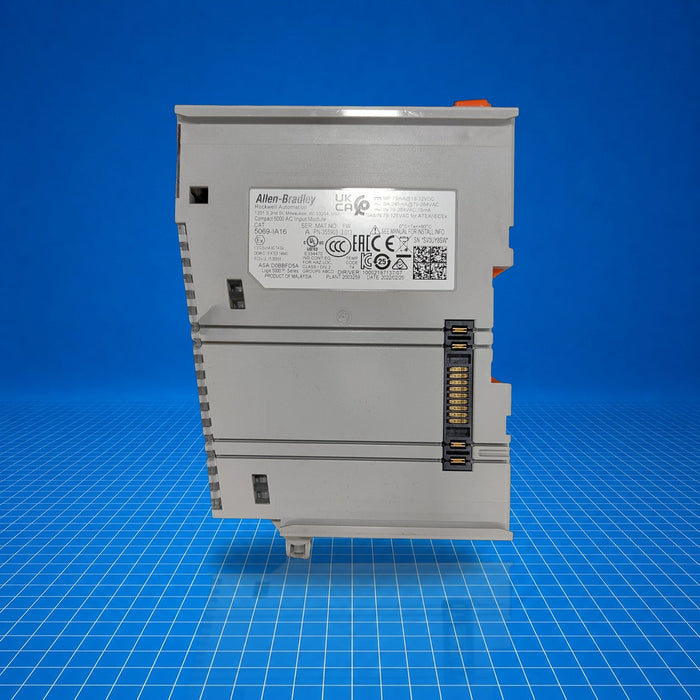

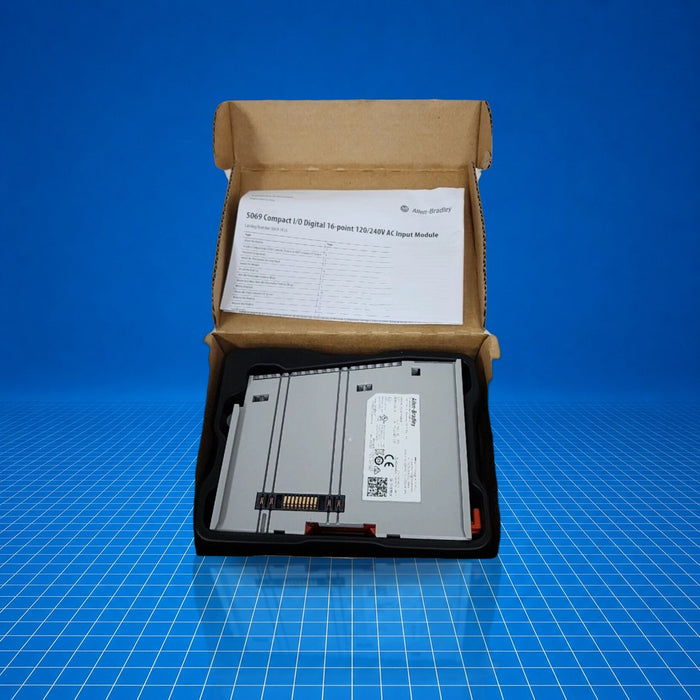

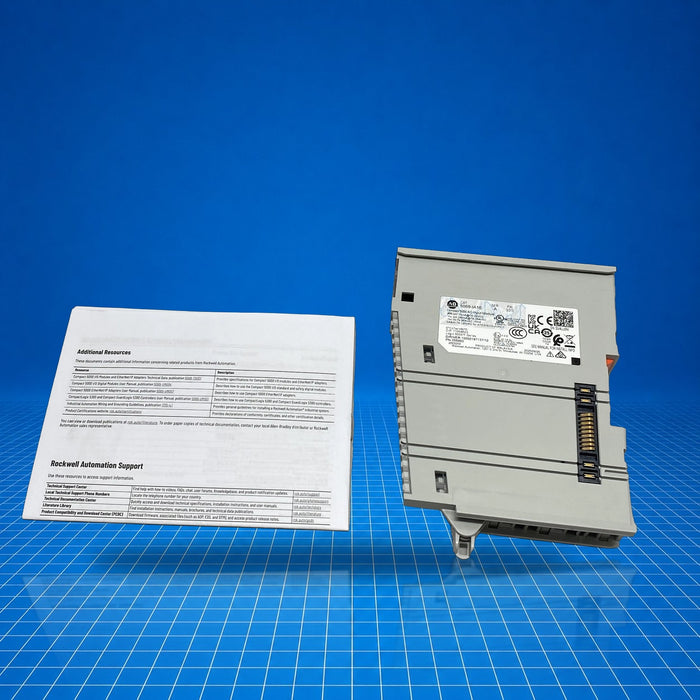

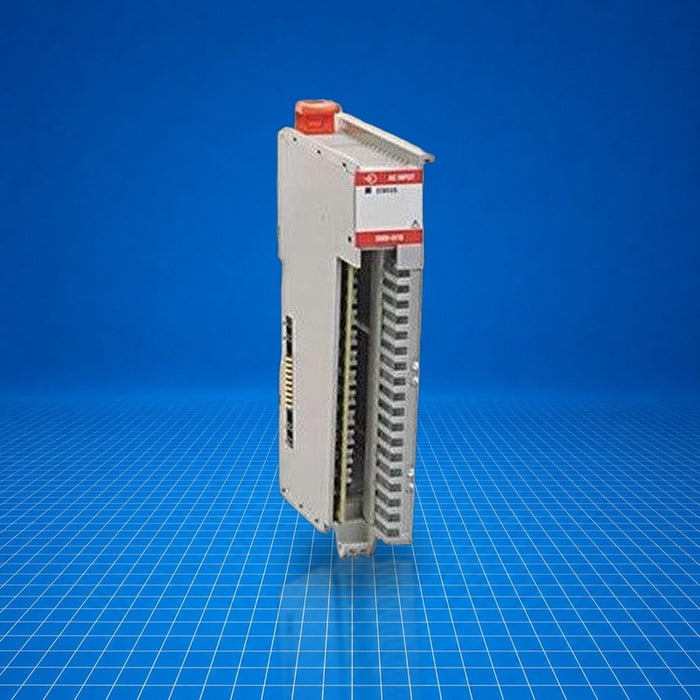

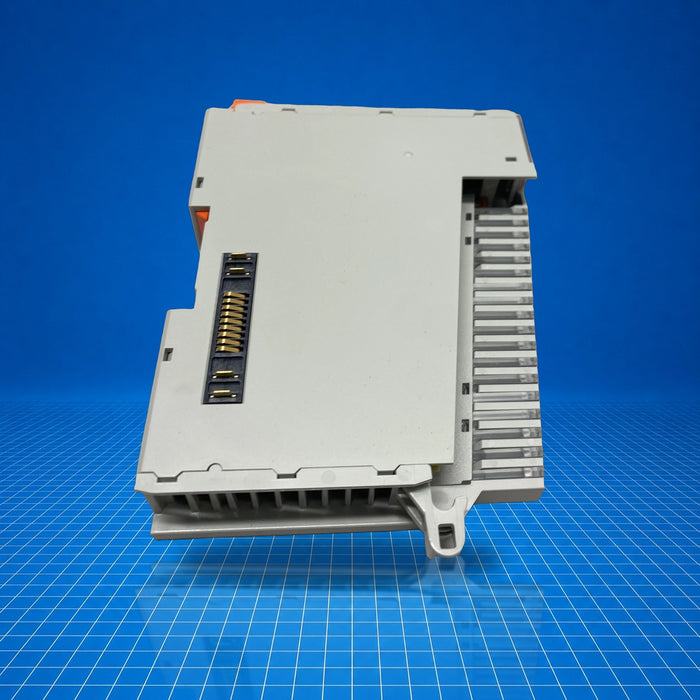

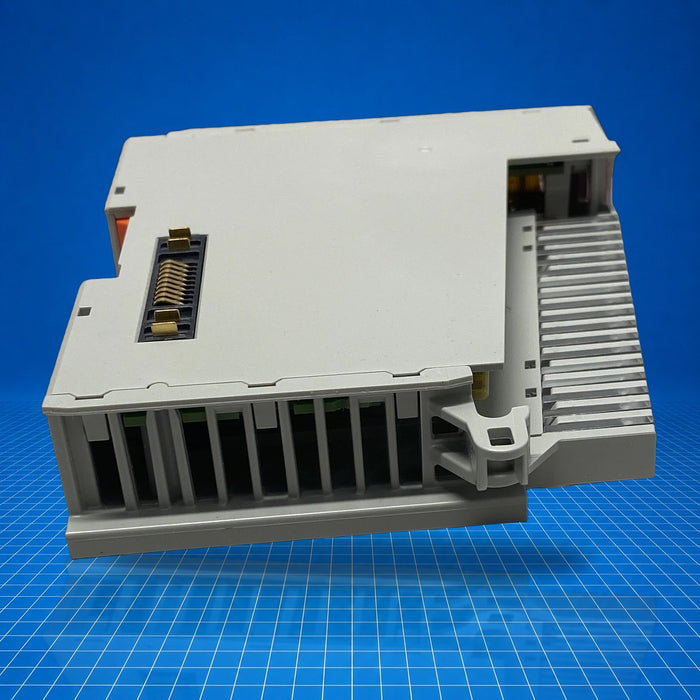

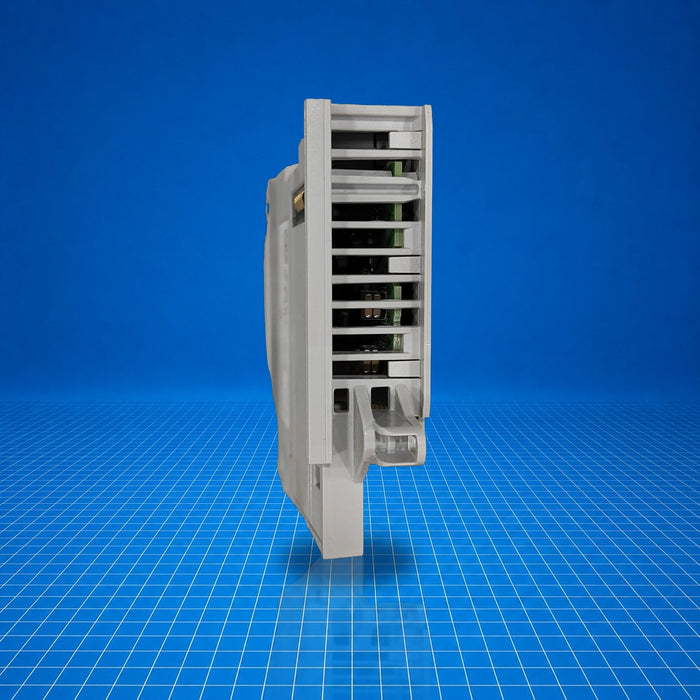

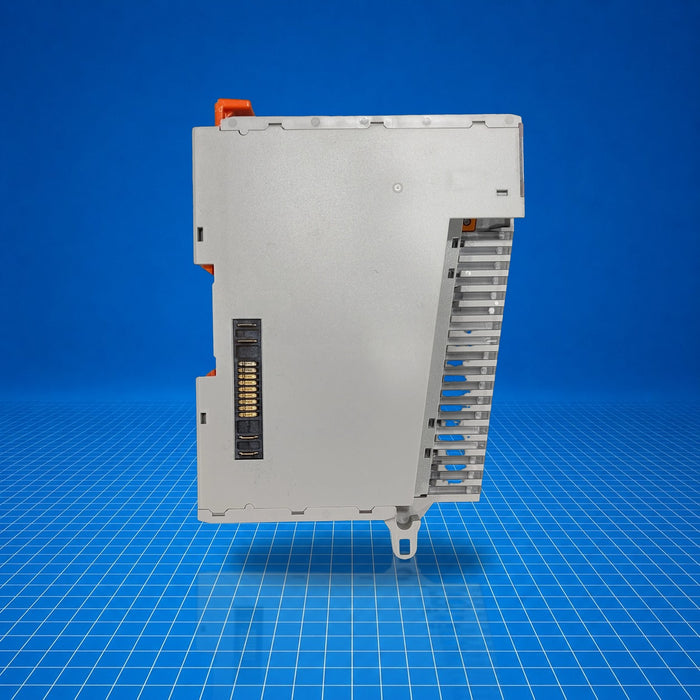

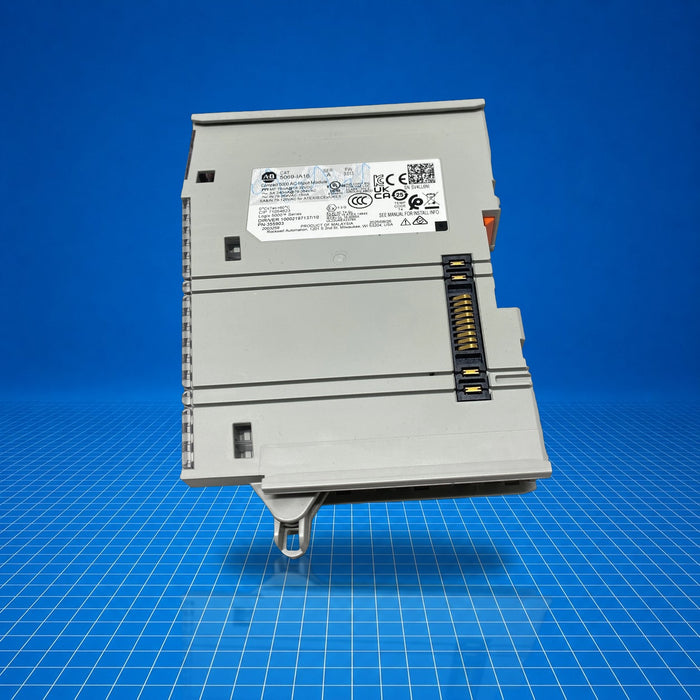

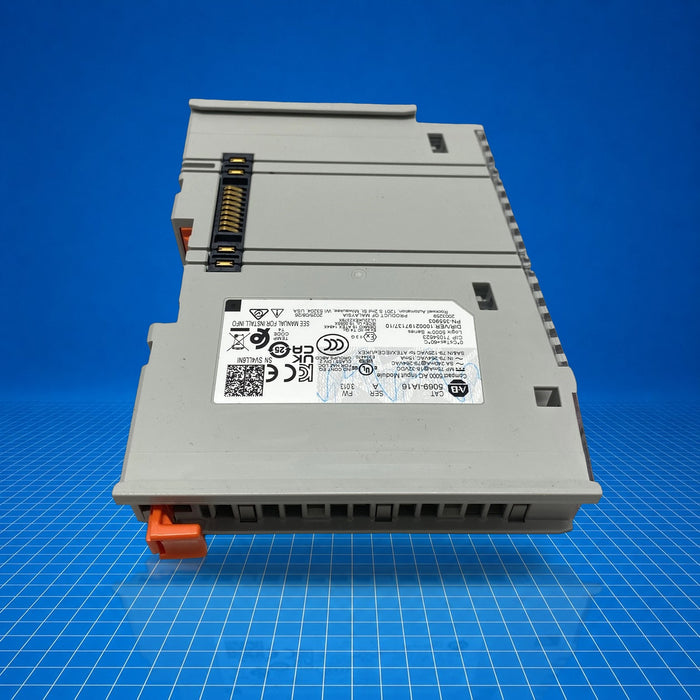

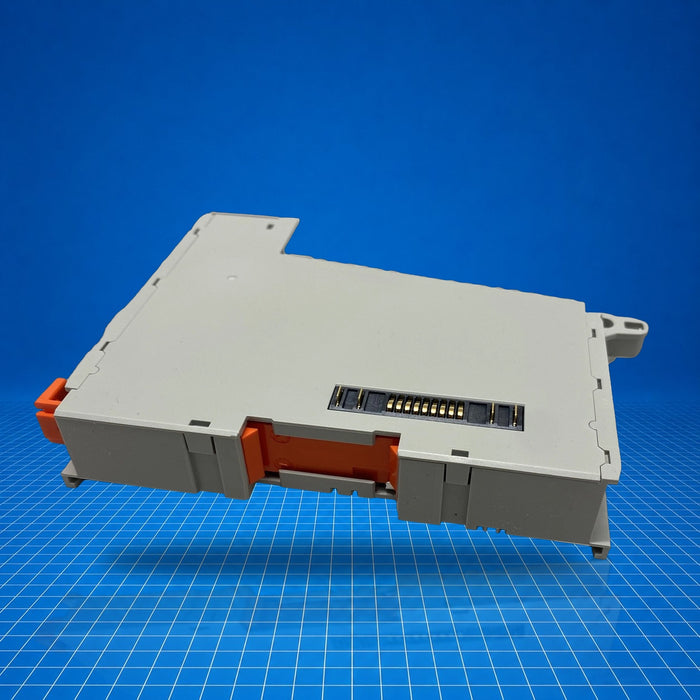

5069-IA16 Allen-Bradley
Original price
$632.47
-
Original price
$2,587.48
Original price
$2,587.48
$632.47
-
$2,587.48
Current price
$2,587.48
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 5069-IA16 is an Allen-Bradley Compact 5000™ digital AC input module designed to interface 16 channels of 120/240 VAC signals to CompactLogix or Compact GuardLogix control systems. It serves as a distributed I/O module in Compact 5000 architectures, enabling aggregation of field AC inputs such as motor starters, sensors, or limit switches. The 5069-IA16 integrates into Compact 5000 backplanes to provide remote input acquisition, diagnostics, and filtering within industrial control applications.
Best Suited For
- CompactLogix 5380 control systems
- Compact GuardLogix 5380 with local AC input needs
- Distributed I/O installations with AC field devices
- Systems requiring backplane power passthrough capability
Channels
16 AC inputs
Input voltage range
79…264 V AC
Isolation
300 V (continuous)
MOD power passthrough
9.55 A @ 18…32 V DC
SA power passthrough
9.975 A @ 79…264 V AC
Technical Specifications
I/O & Electrical
Number of inputs
16
Input voltage range
79…264 V AC
Input voltage frequency
47…63 Hz
On-state current, max
15 mA @ 264 V AC
On-state current, min
3 mA @ 164 V AC; 2 mA @ 79 V AC
Off-state current, max
2 mA
Communication & Power
SA power consumption
240 mA @ 79…264 V AC
SA power passthrough
9.975 A @ 79…264 V AC
MOD power consumption
75 mA @ 18…32 V DC
MOD power passthrough
9.55 A @ 18…32 V DC
Physical & Environmental
Operating temperature
0…60 °C (32…140 °F)
Enclosure type rating
None (open-style)
Isolation voltage
300 V continuous; tested at 1800 V AC for 60 s
Depth
105 mm (4.15 in)
Height
138 mm (5.43 in)
Certifications
ATEXIECExCEcULus ListedEAC
Meets ATEX, IECEx (when used at or below 125 V AC). Certifications as of May 20 2026: CCC, ABS, EAC among others.
