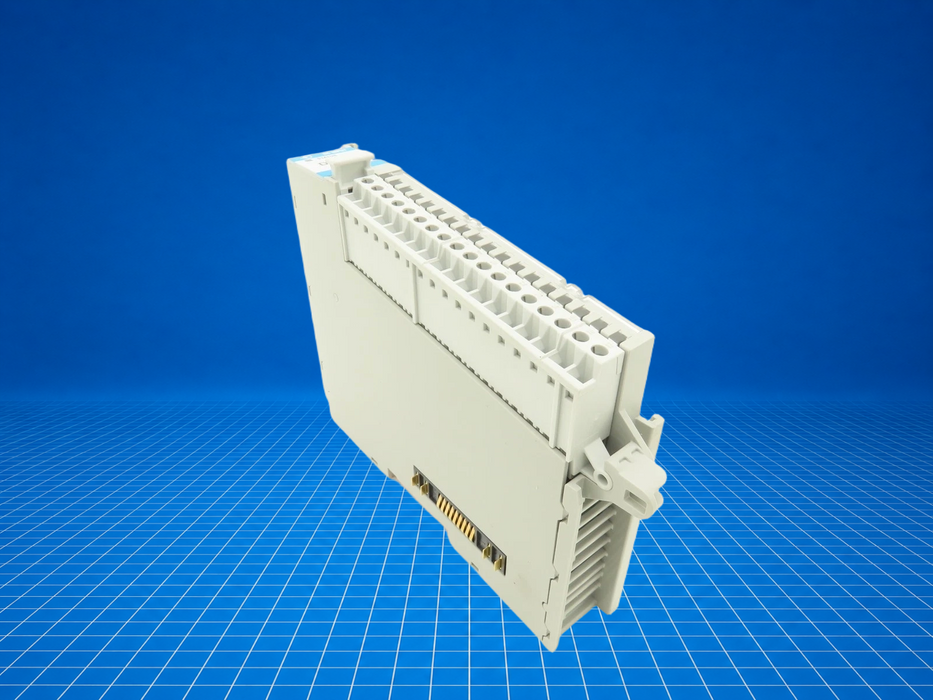

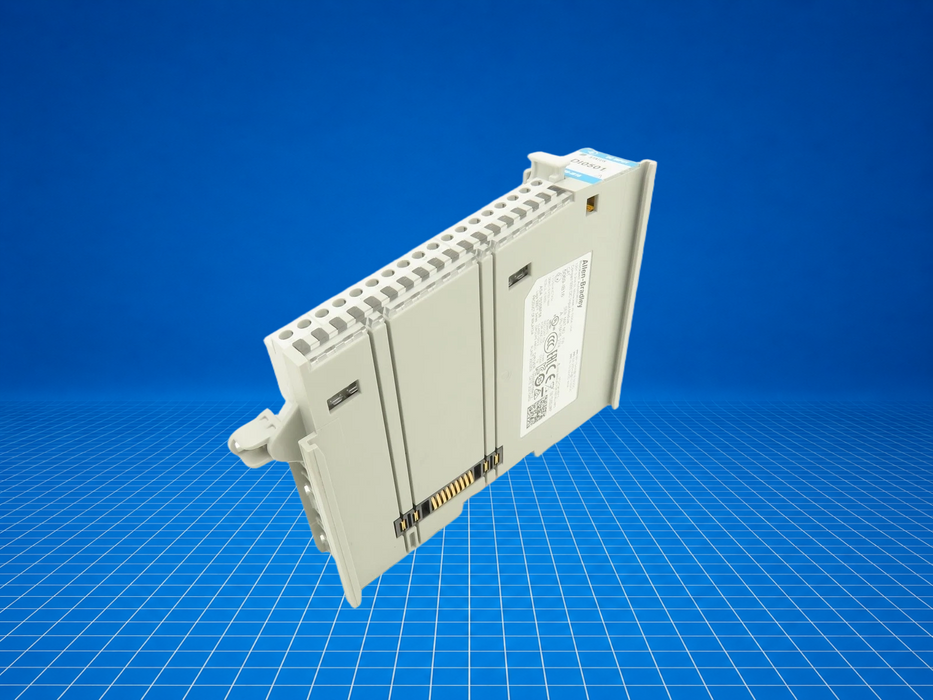

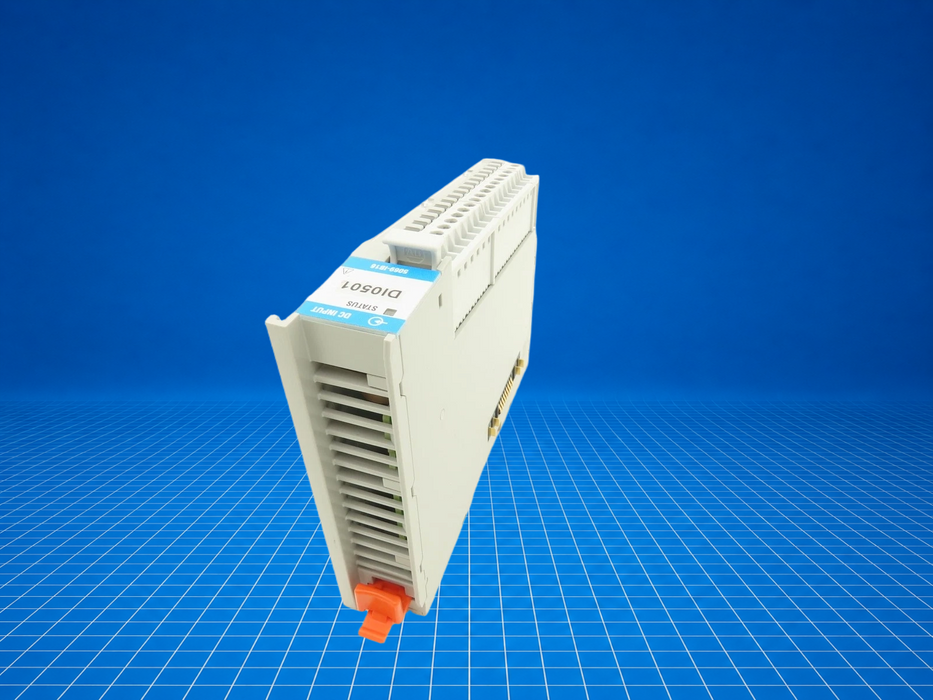

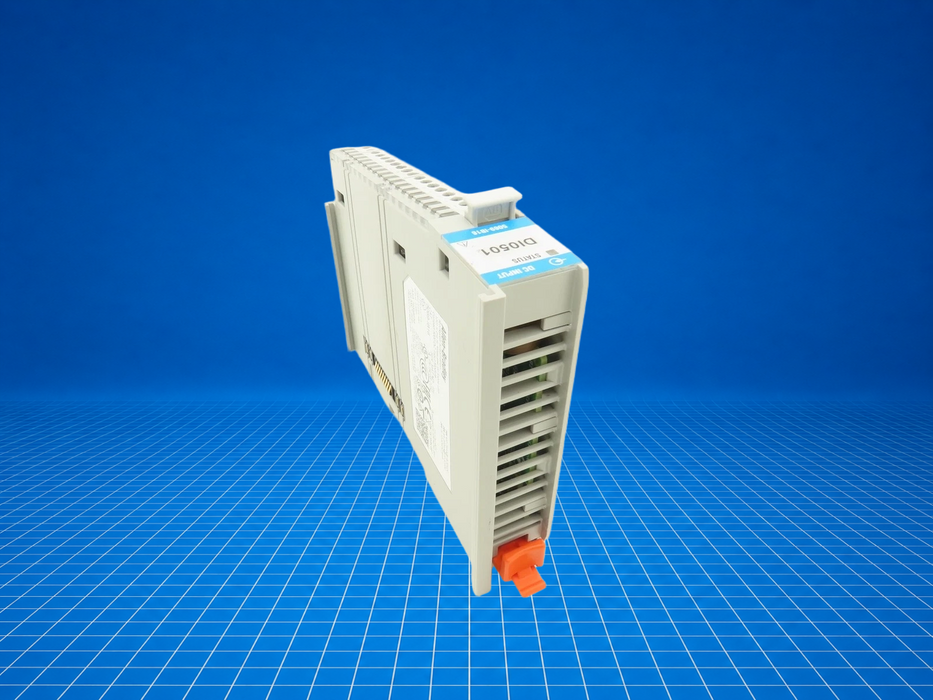

5069-IB16 Allen-Bradley
Original price
$500.00
-
Original price
$700.00
Original price
$500.00
$500.00
-
$700.00
Current price
$500.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

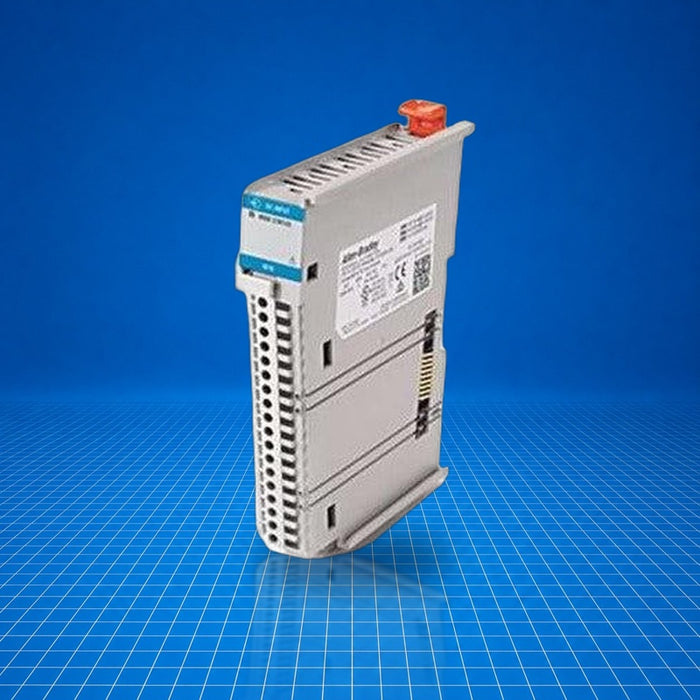

The 5069-IB16 is a Compact 5000 series DC sinking input module by Allen-Bradley. It provides 16 sinking channels for detecting field device transitions and interfaces with CompactLogix 5380, Compact GuardLogix 5380, or CompactLogix 5480 controllers, as local or distributed I/O. It operates on 10-32 V DC and supports modular and pass-through power, making it suitable for control racks or distributed installations. Part number 5069-IB16.
Best Suited For
- CompactLogix 5380/GuardLogix 5380 systems
- Distributed I/O installation via Compact 5000 Ethernet I/O adapters
- Sinking DC input applications (e.g., discrete sensor inputs)
- DIN-rail mounted control panel installations
Channels
16 sinking
Voltage range
10-32 V DC
Power dissipation
3.9 W
Operating temperature
0-60 °C
Isolation voltage
300 V continuous
Technical Specifications
I/O & Electrical
Number of channels
16 sinking
Input voltage range
10-32 V DC
Input current per channel
4-7.4 mA @ 10-32 V DC
Communication & Power
MOD (module) power draw
75 mA @ 18-32 V DC
MOD power passthrough
9.55 A @ 18-32 V DC
SA (sensor/aux) power draw
200 mA @ 10-32 V DC
SA power passthrough
9.95 A @ 10-32 V DC
Physical & Environmental
Power dissipation
3.9 W
Operating temperature
0-60 °C
Enclosure type
Open-style (no enclosure)
Mounting
DIN-rail
Dimensions
138 × 22 × 105 mm (5.4 × 0.87 × 4.2 in)
Weight
0.39 lb (175 g)
Certifications
UL Listed HazardousUKCAChina CCCABSRINAEAC
Certified for UL listed hazardous locations, UKCA, China CCC, American Bureau of Shipping, Registro Italiano Navale, Eurasian Economic Community as of 20 May 2026.
