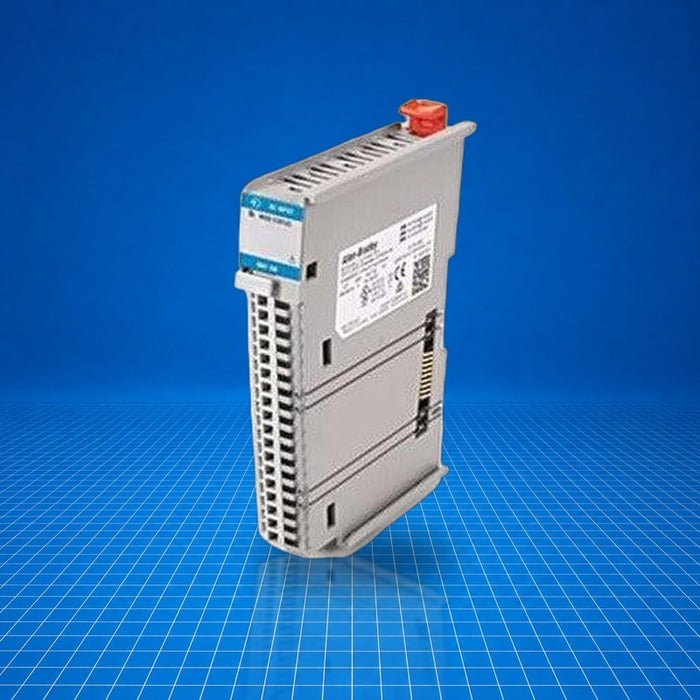

Product image is representative; revision or series may vary.
Contact us to request a specific version.

5069-IB6F-3W Allen-Bradley

Name: 5069-IB6F-3W Allen-Bradley
Brand: Allen Bradley
SKU: 5069-IB6F-3W
Price: 825.0 USD
Availability: InStock

$0.00 - $825.00

$825.00

$0.00 - $825.00

$825.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (5) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 5069-IB6F-3W is an Allen-Bradley Compact 5000 digital input module (Compact I/O family) providing six sinking, 3-wire fast 24 V DC input channels. It supplies sensor power and reports transitions, pulse, and event data to CompactLogix or Compact GuardLogix controllers. Typical uses include on-machine control, fast discrete sensing, pulse counting, and integration in Compact 5000 installations. The 5069-IB6F-3W is integrated via the backplane and supports advanced features such as timestamps, counters, pattern matching, and field power-loss detection.

Best Suited For

Integration with CompactLogix 5380 or Compact GuardLogix controllers
Fast discrete pulse detection and counting (up to 30 kHz)
3-wire sensor applications requiring sinking inputs
On-machine or distributed I/O installations

Number of inputs

6 sink-type channels

Voltage range

10…32 V DC

Power dissipation

2.4 W (8.1 BTU/hr)

Pulse counting

yes (up to 30 kHz, 4 counters)

Mounting style

DIN-rail open-style module

Technical Specifications

I/O & Electrical

Inputs

6 sinking, 3-wire

On-state current

4 mA @ 10 V … 7.4 mA @ 32 V (6 mA nom @ 24 V DC)

Off-state current

≤ 1.5 mA

Input impedance

4.1 kΩ nominal, 7.0 kΩ maximum

Overvoltage protection

36 V (fuse protected)

MOD power

75 mA @ 18…32 V DC

MOD power passthrough

9.55 A @ 18…32 V DC

SA power

950 mA @ 10…32 V DC

SA power passthrough

9.95 A @ 10…32 V DC

Communication & Power

Power dissipation

2.4 W (8.1 BTU/hr)

Input delay time

≤ 10 µs ±1 µs @ 25 °C

Hardware delay

Off-to-On: 2 µs + filter; On-to-Off: 3 µs + filter

User-selectable filter time

0…50 ms

Physical & Environmental

Operating temperature

0…60 °C (32…140 °F)

Enclosure type

None (open-style)

Dimensions

138 × 22 × 105 mm (5.43 × 0.87 × 4.15 in)

Indicator LEDs

1 module status (green/red), 6 I/O status (yellow/red)

Mounting

DIN-rail (steel zinc-plated)

Certifications

CEChina CCCUK EXUKCAEurasian Economic Community

Isolation voltage 250-300 V continuous, basic insulation; no isolation between SA power and input ports or between input ports. Refer to certification documents for regional approvals available since May 4, 2026.
