5069-IF8 Allen-Bradley
Original price
$1,126.79
-
Original price
$1,422.50
Original price
$1,126.79
$1,126.79
-
$1,422.50
Current price
$1,126.79
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

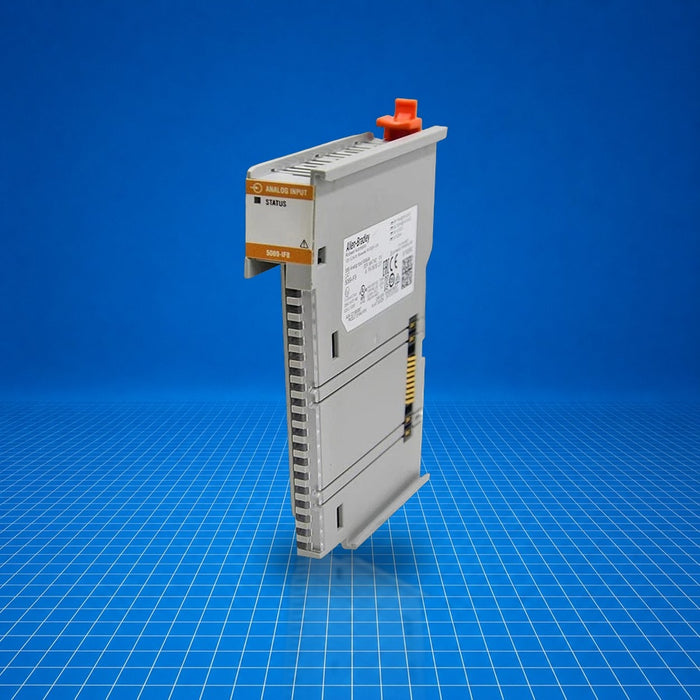

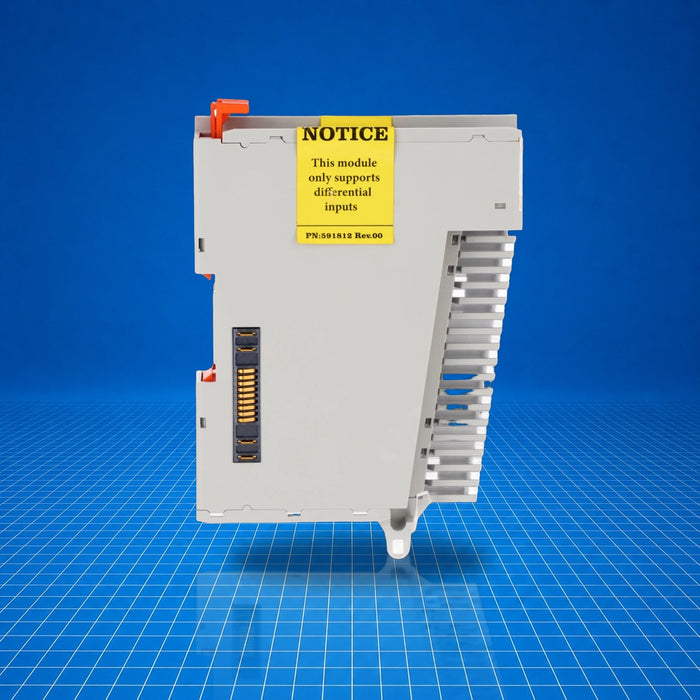

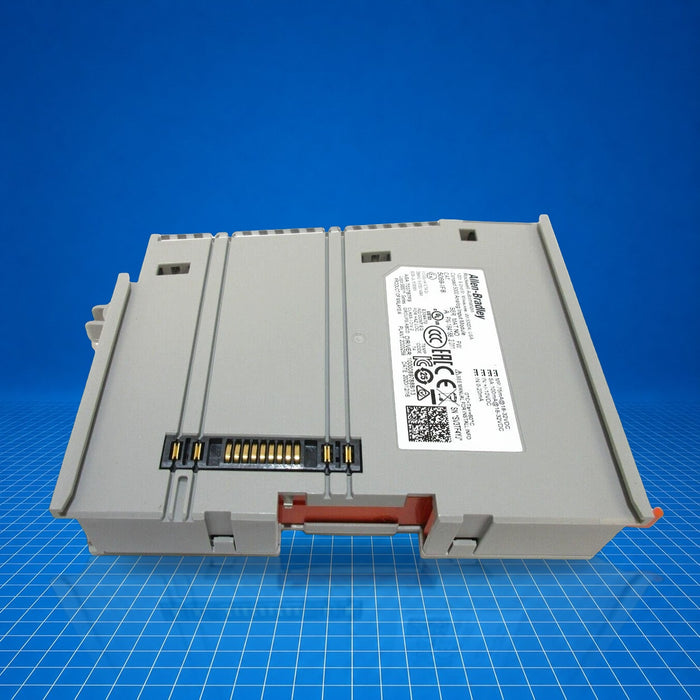

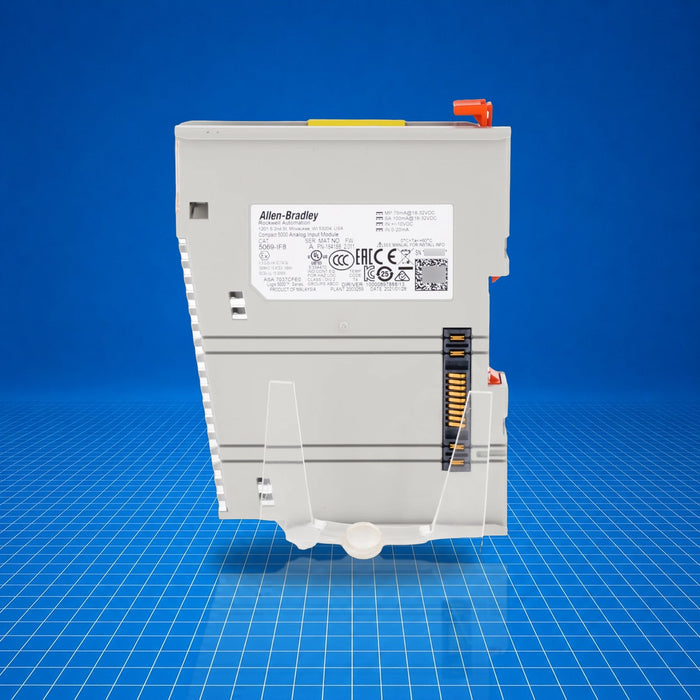

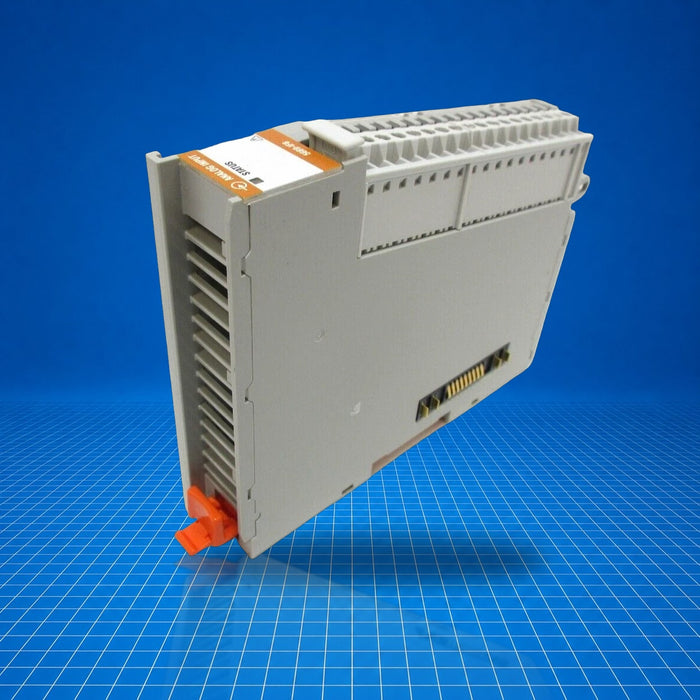

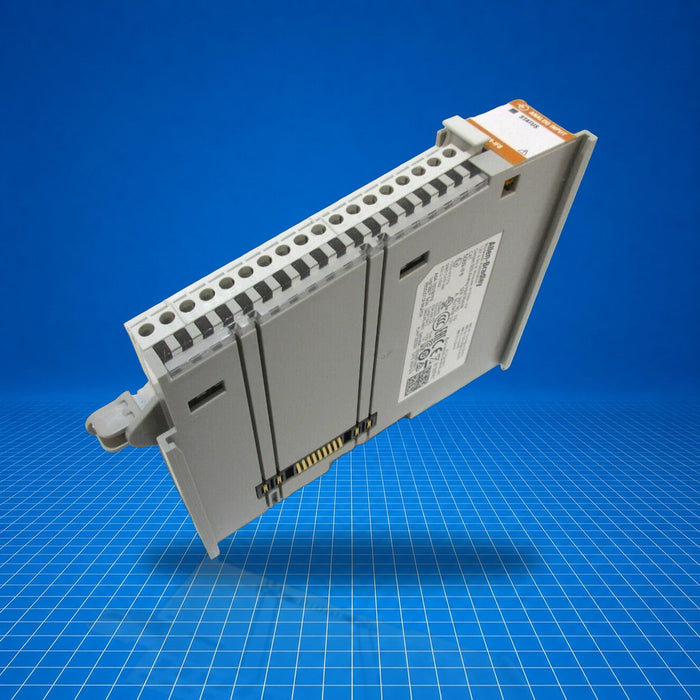

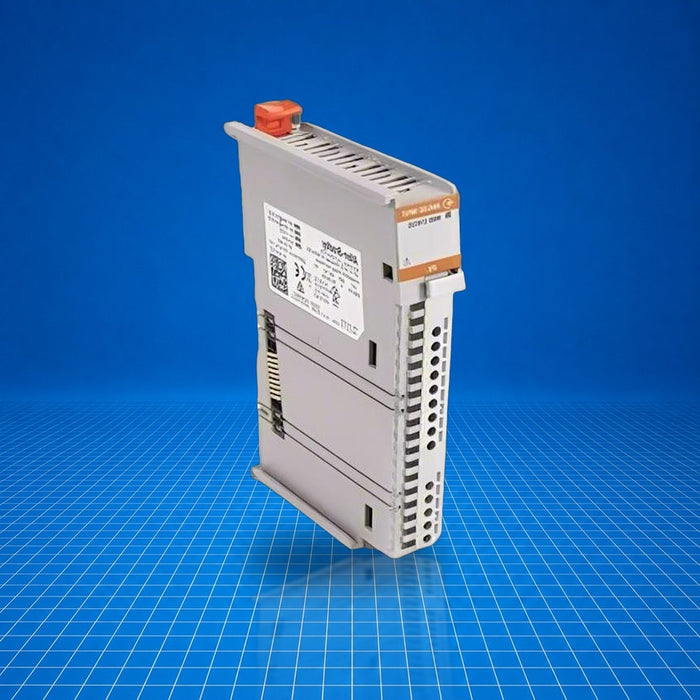

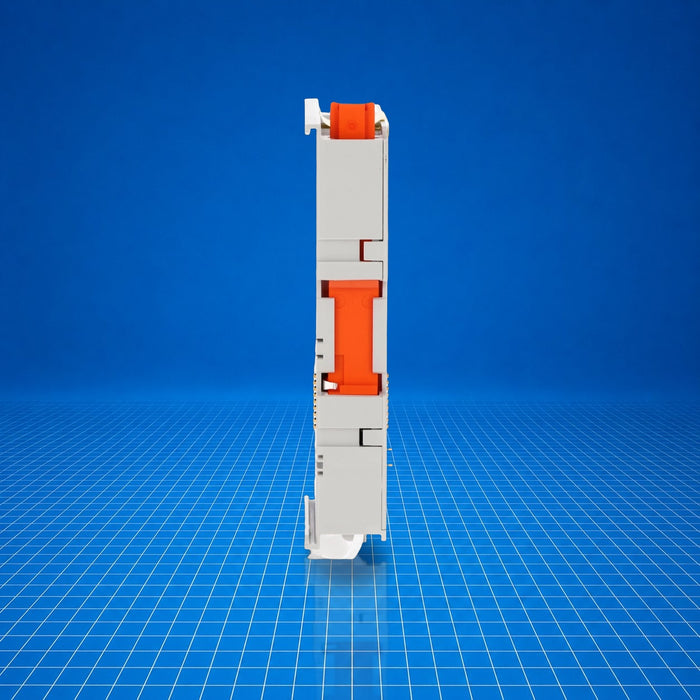

The 5069-IF8 is an Allen-Bradley Compact 5000 analog input module for CompactLogix and GuardLogix controllers. With eight analog input channels (differential in Series A, single-ended in Series B), it measures voltage (±10 V, 0-10 V, 0-5 V) or current (0-20 mA, 4-20 mA) signals. It is used for acquiring analog sensor data in applications such as process monitoring, motor control feedback, or instrumentation loops. The module supports engineering-unit scaling, onboard alarming, and real-time channel sampling. Part number 5069-IF8.
Best Suited For
- Integration into CompactLogix 5380 or GuardLogix 5380 local I/O
- Voltage or current analog sensor input acquisition
- Modular DIN-rail machine I/O installations
- Applications requiring per-channel configuration of input type and scaling
Analog inputs
8 channels
Input types
Voltage & current (configurable per channel)
Input ranges
Voltage ±10 V, 0-10 V, 0-5 V; Current 0-20 mA, 4-20 mA
Power dissipation
Voltage mode 2.1 W; Current mode 2.4 W
Technical Specifications
I/O & Electrical
Number of inputs
8 (Series A: differential; Series B: single-ended)
Input ranges (voltage)
±10 V, 0-10 V, 0-5 V
Input ranges (current)
0-20 mA, 4-20 mA
Input impedance (voltage)
> 1 MΩ
Input impedance (current)
90 Ω typical (70-110 Ω range)
Overvoltage protection
±30 V DC
Overcurrent protection
±30 mA (current mode)
Open-circuit detection time
< 2 s
Communication & Power
MOD power
75 mA @ 18-32 V DC
MOD power passthrough
9.55 A @ 18-32 V DC
SA power
100 mA @ 18-32 V DC
SA power passthrough
9.95 A @ 18-32 V DC
Data format
IEEE 32-bit floating point
Conversion method
Sigma-Delta, two 24-bit multiplexed ADC
Resolution (voltage)
±10.5 V: <320 µV/count; 0-10.5 V: <160 µV/count; 0-5.25 V: <80 µV/count
Resolution (current)
0-21 mA: <0.32 µA/count; 3.6-21 mA: <0.27 µA/count
Physical & Environmental
Enclosure type
None (open-style)
Dimensions
138 × 22 × 105 mm
Weight
175 g
Operating temperature
0 °C to 60 °C
Non-operating temperature
-40 °C
Shock (operating)
30 G
Shock (non-operating)
50 G
Vibration
5 G @ 10-500 Hz
Wire category
2 shielded input ports, 1 wire per terminal
Noise rejection (common-mode)
130 dB @ 50/60 Hz
Noise rejection (normal-mode)
65 dB @ 50/60 Hz (notch filter dependent)
Certifications
UL ListedCEUKCAATEXIECEx
