5069-IY4 Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

5069-IY4 Allen-Bradley

$893.75 - $1,017.50
$1,017.50
$893.75 - $1,017.50
$1,017.50
Surplus - Tested (With Warranty)
Need a Specific Revision?
$1,017.50
2 in stock
New / Open-Box Surplus
Need a Specific Revision?
$893.75
3 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (2) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

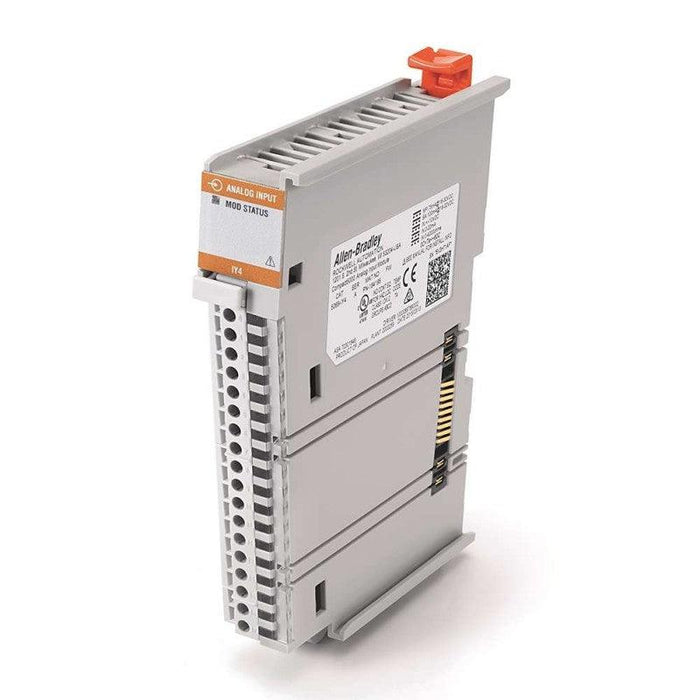

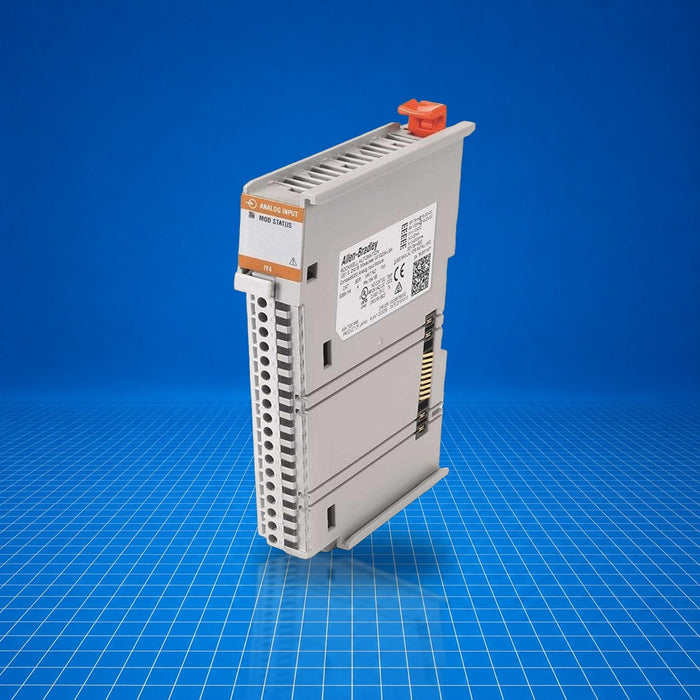

The 5069-IY4 is a CompactLogix (Compact 5000) 4-channel universal analog input module by Allen-Bradley. It accepts voltage, current, RTD, thermocouple, and millivolt signals for conversion and integration into CompactLogix control systems. It integrates into the 5069 Compact I/O system, provides differential analog input sampling, on-board data alarming, scaling to engineering units, and real-time per-channel sampling. Typical applications include process and temperature monitoring, instrumentation signal acquisition, and multitype analog input consolidation in industrial control cabinets.

Best Suited For

  • CompactLogix control systems analog signal acquisition
  • Temperature measurement via thermocouples or RTDs
  • Process variable monitoring across voltage/current sensors
  • Facility and machine control cabinets with mixed signal inputs
Channels
4 differential
Signal types supported
Voltage, current, RTD, thermocouple, millivolt
MOD power consumption
75 mA @ 18-32 V DC
Power dissipation
1.8 W (voltage mode) to 2.1 W (current/RTD)
Operating temperature
0 °C to 60 °C

Technical Specifications

I/O & Electrical

Input types
Voltage, current, RTD, thermocouple, millivolt
Number of channels
4 differential
Input range, voltage
±10 V, 0-10 V, 0-5 V
Input range, current
0-20 mA, 4-20 mA
Input range, resistive (RTD)
1…500 Ω, 2…1000 Ω, 4…2000 Ω, 8…4000 Ω
RTD types
Pt 100, 200, 500, 1000 Ω (alpha = 385 or 3916), Ni 120 Ω (alpha = 672), Ni 100/120/200/500 Ω (alpha = 618), Cu 10 Ω (alpha = 427)
Thermocouple types
B, C, D, E, J, K, L (TXK/XK), N, R, S, T
Calibration accuracy @25 °C
0.100% full scale (all types)
TUE (total unadjusted error)
Voltage 0.300%, Current 0.400%, RTD 0.300%, TC/mV 0.300% full scale
Overvoltage protection
±30 V DC (all modes)

Communication & Power

MOD power
75 mA @ 18-32 V DC
MOD power passthrough, max
9.55 A @ 18-32 V DC
SA power
100 mA @ 18-32 V DC
SA power passthrough, max
9.95 A @ 18-32 V DC
Isolation voltage
250 V continuous (basic insulation), 50 V functional between SA power and inputs; no isolation between input channels
Noise rejection
Common-mode 130 dB @ 50/60 Hz; Normal-mode 65 dB, notch-filter dependent
Indicators
1 green/red module status; 4 yellow/red I/O; 2 yellow/red CJC

Physical & Environmental

Dimensions (W×H×D)
22 mm × 144.57 mm × 105.42 mm
Weight
175 g
Enclosure type
None (open-style)
Vibration
5 g @ 10-500 Hz
Shock
Operating 30 g; Non-operating 50 g
Operating temperature
0 °C to 60 °C
Non-operating temperature
-40 °C
Relative humidity
5-95% noncondensing
EMC immunity
ESD 6 kV contact/8 kV air; EFT/B ±4 kV power ports, ±3 kV signal; Surge ±1 kV DM/±2 kV CM power ports, ±2 kV CM signal; RF conducted 10 V rms 150 kHz-80 MHz; RF radiated 10 V/m 80-2000 MHz, plus pulses per spec

Certifications

Certifications include China CCC, American Bureau of Shipping, Registro Italiano Navale, UKCA, Eurasian Economic Community as of May 19, 2026.
