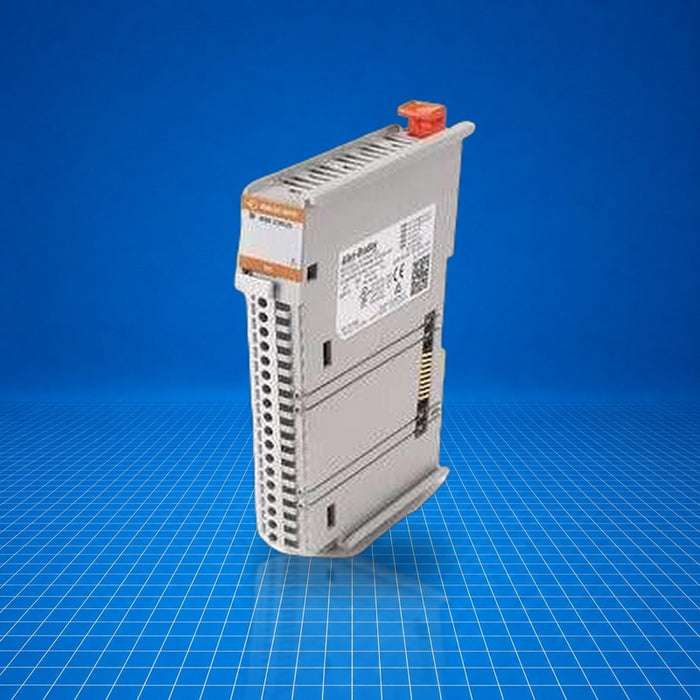

Product image is representative; revision or series may vary.
Contact us to request a specific version.

5069-IY4K Allen-Bradley

Name: 5069-IY4K Allen-Bradley
Brand: Allen Bradley
SKU: 5069-IY4K
Availability: OutOfStock

Sold out

$0.00 - $0.00

$0.00

$0.00 - $0.00

$0.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (0) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 5069-IY4K is an Allen-Bradley Compact 5000 universal analog input module in the CompactLogix I/O family. It provides four configurable analog inputs (voltage, current, RTD, thermocouple), supports conformal-coated use in environments with moisture or corrosive elements, and mounts directly onto DIN rail bus systems. In a control system, the module acquires diversified analog sensor data and relays it via the CompactLogix backplane bus. Typical industrial use cases include machine monitoring, process temperature measurements, and mixed-sensor data collection.

Best Suited For

Analog sensor data acquisition (voltage, current, RTD, thermocouple)
Field installations requiring moisture or corrosion resistance (conformal coated)
CompactLogix 5380 or GuardLogix 5380 local I/O integration
Mixed-signal analog measurement applications

Channels

4 differential

Input types supported

Voltage, current, RTD, thermocouple

Conformal coated

Yes

Scan time per group

2.5 ms

Technical Specifications

I/O & Electrical

Input voltage ranges

±10 V, 0-10 V, 0-5 V

Input current ranges

0-20 mA, 4-20 mA

Resistive input range

1-500 Ω, 2-1000 Ω, 4-2000 Ω, 8-4000 Ω

Thermocouple/millivolt input range

±100 mV

RTD types

Pt100/200/500/1000 α=385 or α=3916; Ni120 α=672; Ni100/120/200/500 α=618; Cu10 α=427

Resolution

16-bit (24-bit ADC)

Calibrated accuracy @25 °C

0.100 % full scale

MOD power

75 mA @ 18-32 V DC

MOD power passthrough, max

9.55 A @ 18-32 V DC

SA power

100 mA @ 18-32 V DC

SA power passthrough, max

9.95 A @ 18-32 V DC

Power dissipation, max

Voltage/mV/TC: 1.8 W; Current/RTD: 2.1 W

Communication & Power

Scan time

625 µs per channel; 2.5 ms per group

Conversion method

Sigma-Delta, single 24-bit multiplexed ADC

Data format

IEEE 32-bit floating point

Physical & Environmental

Dimensions (W×H×D)

22 mm × 144.57 mm × 105.42 mm

Weight

175 g

Operating temperature

0 °C to 60 °C

Non-operating temperature

-40 °C

Vibration / Shock

5 G @ 10-500 Hz; Operating: 30 G, Non-operating: 50 G

Relative humidity

5-95 % non-condensing

Enclosure type

None (open-style)

Bus mounting

DIN-rail EN50022-35 × 7.5 mm

Certifications

UL ListedATEXIECExChina CCCKorean KCEurasian Economic Community

UL Listed Hazardous, UL Listed, ATEX, IECEx, China CCC, Korean KC, Registro Italiano Navale, Eurasian Economic Community, UK EX (certified as of May 19, 2026).
