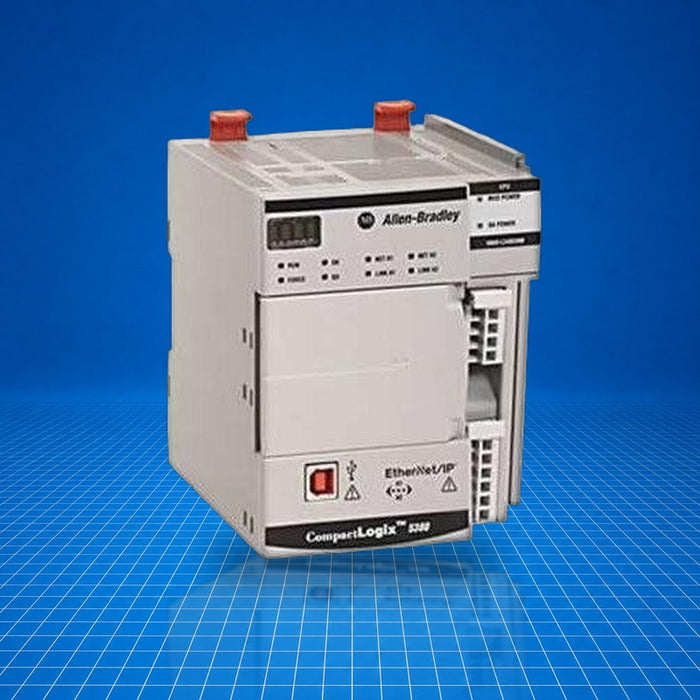

5069-L3100ERM Allen-Bradley
Original price
$0.00
-
Original price
$11,136.30
Original price
$11,136.30
$0.00
-
$11,136.30
Current price
$11,136.30
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 5069-L3100ERM is a CompactLogix 5380 series controller with 10 MB user memory, supporting up to 31 local I/O modules, 32 integrated motion axes over EtherNet/IP, and connection to up to 180 EtherNet/IP nodes. It functions as the central execution engine for machine-level logic, motion, and I/O coordination in industrial control systems. It is applied in mid-to-large scale automation tasks such as precision motion control, distributed I/O expansion, and complex machine sequencing. 5069-L3100ERM interfaces with standard Logix Designer software.
Best Suited For
- High-axis motion applications (up to 32 axes)
- Systems requiring extensive distributed I/O (up to 31 modules)
- Automated systems with up to 180 EtherNet/IP devices/nodes
- CompactLogix 5380 platform deployments
User memory
10 MB
Max local I/O modules
31
Max motion axes
32
EtherNet/IP nodes supported
180
Technical Specifications
I/O & Electrical
MOD Power voltage range
18…32 V DC
MOD Power current, max
450 mA
MOD Power inrush
850 mA for 125 ms
MOD Power passthrough
9.55 A @ 18…32 V DC
MOD Power current rating, max
10 A
Communication & Power
Communication ports
2 × 1 Gb EtherNet/IP, 1 × USB Type B full-speed
Isolation
300 V (continuous)
Physical & Environmental
Height
123 mm (4.84 in)
Depth
136.81 mm (5.39 in)
Dimensions (alt)
138 × 22 × 105 mm (5.4 × 0.9 × 4.2 in)
Weight
0.39 lb (175 g)
