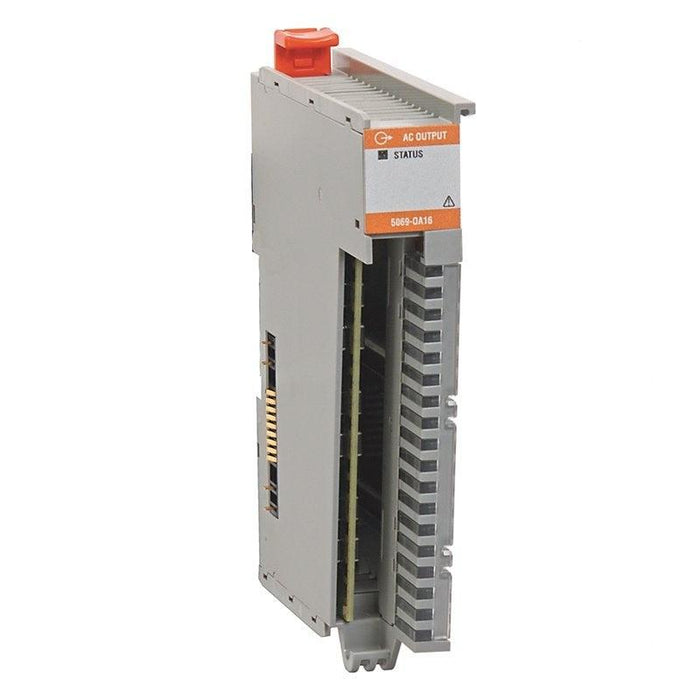

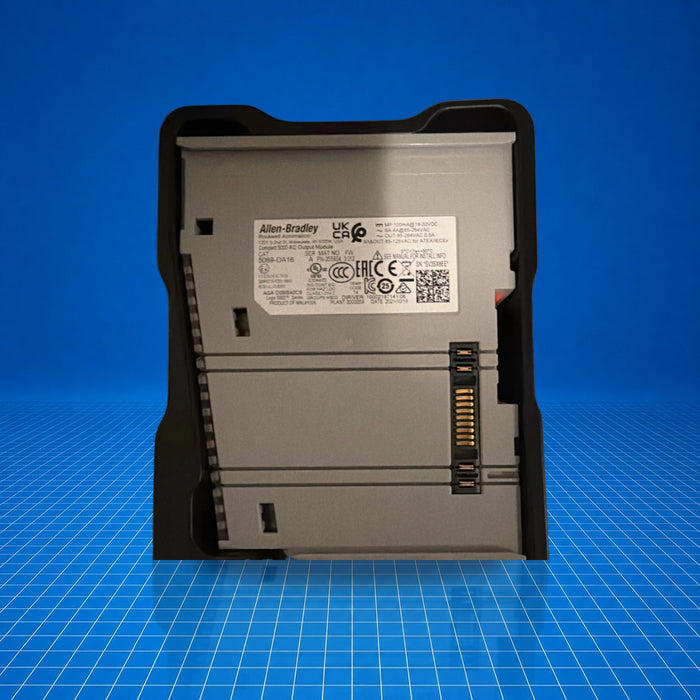

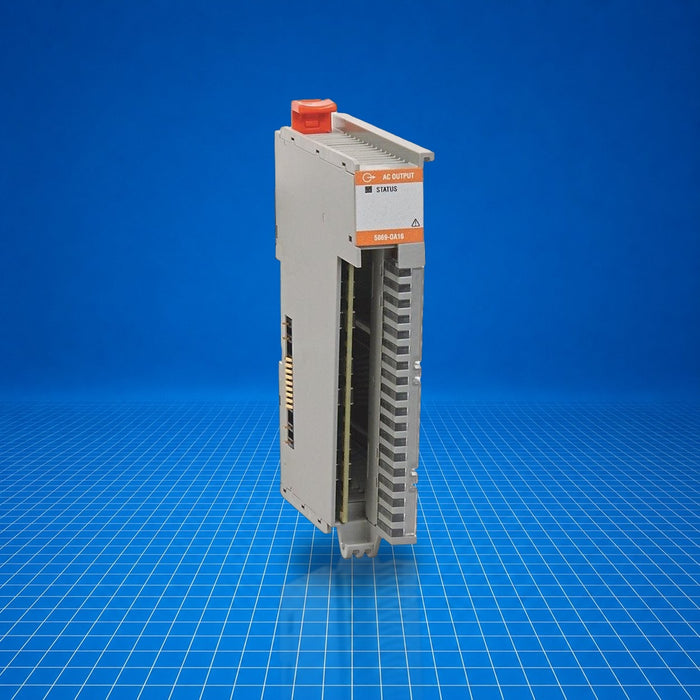

5069-OA16 Allen-Bradley
Original price
$919.38
-
Original price
$1,100.00
Original price
$919.38
$919.38
-
$1,100.00
Current price
$919.38
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 5069-OA16 is a Compact 5000 digital AC output module from Allen-Bradley. It provides 16 channels of solid-state outputs, each rated for 120/240 V AC, intended for integration within CompactLogix and Compact GuardLogix control systems. The module occupies a CompactLogix I/O chassis and functions to drive AC loads such as indicator lights, relays, and low-power contactors. The 5069-OA16 integrates with the system backplane for communication and power distribution in modular industrial automation environments.
Best Suited For
- CompactLogix and Compact GuardLogix systems
- AC load switching: lighting, relays, pilot devices
- Control panels requiring standard-voltage AC outputs
- Retrofit of legacy 1746-OA modules with field wiring conversion
Channels
16
Output voltage range
85…264 V AC
Max output current (per channel)
0.5 A
Module power draw (MOD power)
100 mA @ 18…32 V DC
Power dissipation
3.4 W
Technical Specifications
I/O & Electrical
Number of outputs
16
Output voltage range
85…264 V AC
Output frequency
47…63 Hz
Max output current per channel
0.5 A
Max output current per module
4 A
Off-state leakage current, max
1 mA
On-state voltage drop, max
1.5 V AC @ 0.5 A
Isolation voltage
250 V (continuous), Basic
Fuses/internal protection
Type tested at 1800 V AC for 60 s
Communication & Power
MOD power
100 mA @ 18…32 V DC
MOD power (passthrough)
9.55 A @ 18…32 V DC
SA power
4 A @ 85…264 V AC
SA power (passthrough)
9.975 A @ 85…264 V AC
Physical & Environmental
Operating temperature
0…60 °C (32…140 °F)
Dimensions (H × D)
138 mm × 105 mm (5.43″ × 4.15″)
Power dissipation, max
3.4 W
Enclosure type
None (open-style)
Certifications
UKEXATEXIECEx
Module complies with UKEX, ATEX, IECEx when used at or below 125 V AC.
