5069-OB16K Allen-Bradley
Original price
$0.00
-
Original price
$687.47
Original price
$687.47
$0.00
-
$687.47
Current price
$687.47
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

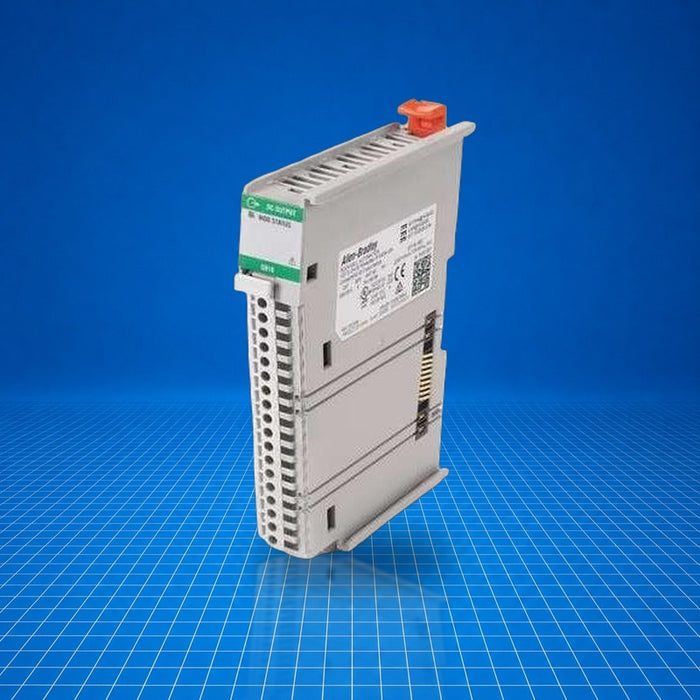

The 5069-OB16K is an Allen-Bradley Compact 5000 digital output module with 16 sourcing (DC) channels, conformally coated for enhanced environmental protection. It mounts directly on CompactLogix or Compact GuardLogix systems via the 5069 I/O backplane and sources up to 0.5 A per channel at 10-32 V DC, supporting diagnostic capabilities such as short-circuit, overload, overtemperature, no-load detection, and field-power loss detection. It is typically used in industrial automation to drive discrete loads such as indicators, relays, and pilot devices in machine control, packaging, and process lines. 5069-OB16K
Best Suited For
- Discrete load control (relays, indicators, pilot devices)
- Applications requiring conformal coating in harsh environments
- CompactLogix/Compact GuardLogix distributed I/O systems
- Diagnostic-enabled control circuits
Channels
16 sourcing outputs
Output current per channel
0.5 A @ 10…32 V DC
Conformal coating
Yes
Diagnostic features
Short-circuit, overload, no-load, over-temperature, field-power loss
Technical Specifications
I/O & Electrical
Output channels
16 sourcing outputs
Output current per channel
0.5 A resistive @ 10…32 V DC
Maximum module current
8 A resistive @ 10…32 V DC
Surge current per point
1 A max for 10 ms, repeatable every 2 s
On-state voltage drop (max)
< 0.2 V DC
Off-state leakage current per point (max)
< 0.5 mA per point
MOD power draw
75 mA @ 18…32 V DC
MOD/SA power passthrough
9.55 A MOD, 9.95 A SA @ 10…32 V DC (passthrough)
Isolation voltage
250 V continuous, basic insulation; no isolation between LA power and outputs or between outputs
Communication & Power
Backplane power
Draws from MOD; does not draw SA power bus
Physical & Environmental
Operating temperature
0…60 °C (32…140 °F)
Enclosure type
Open-style, no enclosure rating
Certifications
UL ListedCEATEXIECExChina CCCKorean KCcULus
