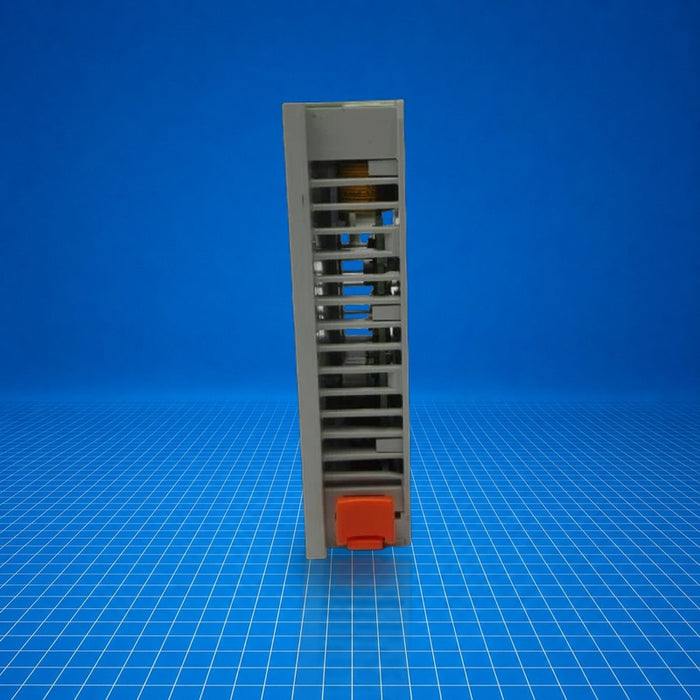

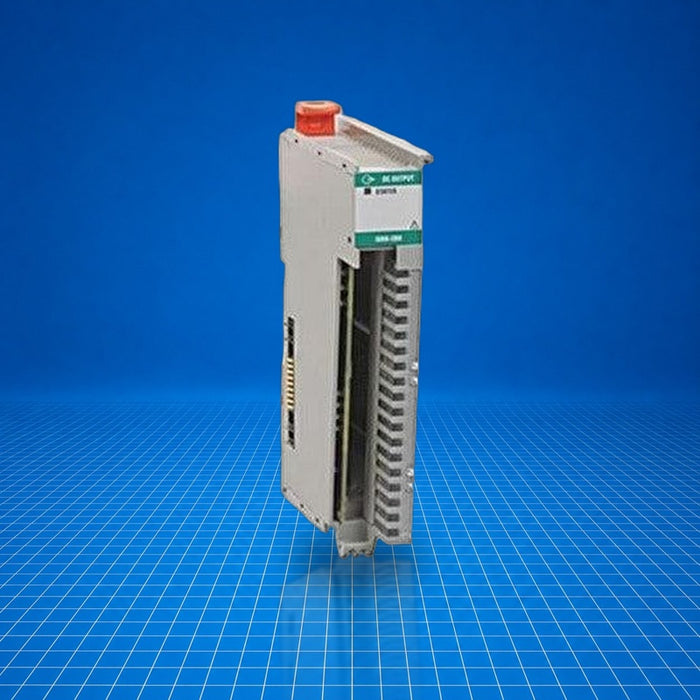

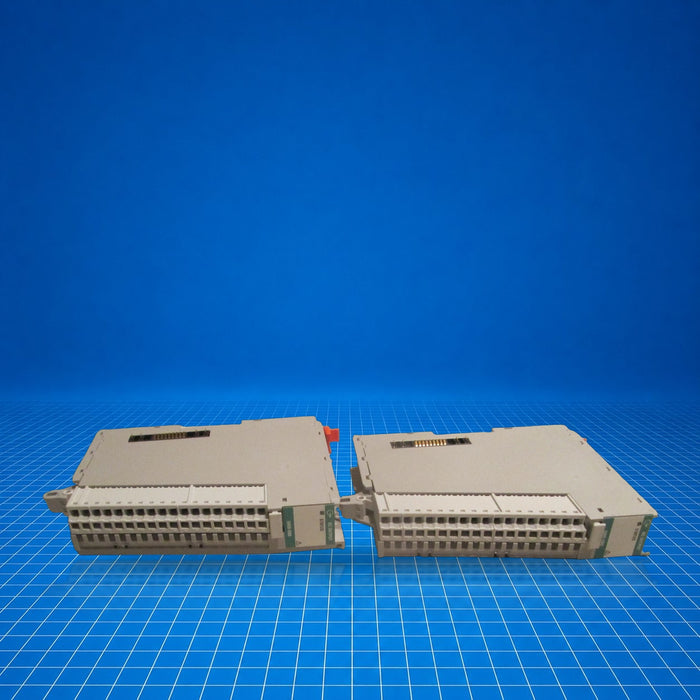

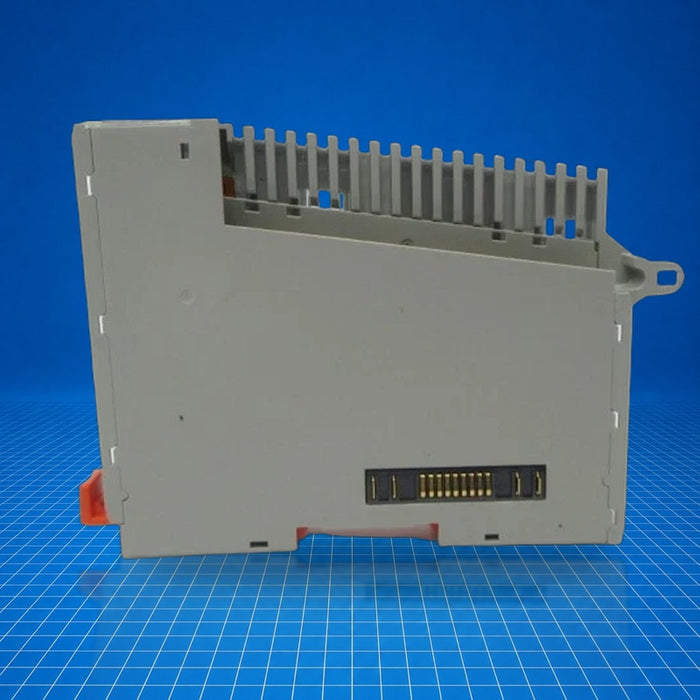

5069-OB8 Allen-Bradley

Name: 5069-OB8 Allen-Bradley
Brand: Allen Bradley
SKU: 5069-OB8
Price: 555.5 USD
Availability: InStock

$460.00 - $555.50

$555.50

$460.00 - $555.50

$555.50

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (4) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 5069-OB8 is an Allen-Bradley Compact 5000 series DC output module in the CompactLogix/Compact I/O family. It provides eight discrete sourcing outputs and integrates directly with Logix 5000 controllers via the Compact 5000 I/O chassis. It is suited for driving high-current loads in local or distributed installations, handling up to 2 A per channel and up to 16 A total, with diagnostics and protection features on a per-channel basis. Typical uses include mid-to-high current actuator control, motor starter interfacing, or solenoid output tasks. 5069-OB8 embeds 4 MB non-volatile memory and basic isolation rated at 300 V.

Best Suited For

Local or distributed CompactLogix/Logix 5000 control
High-current discrete output applications (up to 2 A per channel)
Direct drive of solenoids, valves or mid-power actuators
Systems requiring per-channel diagnostics and fault handling

Output channels

8

Max output current per channel

2 A

Output voltage range

10…32 V DC

Memory (non-volatile)

4 MB

Isolation (backplane to field)

300 V continuous, Basic

Technical Specifications

I/O & Electrical

Number of outputs

8 sourcing DC outputs

Output voltage range

10…32 V DC

Max output current per channel

2 A

Max output current per group

8 A

Max output current per module

16 A

Surge current per point

4 A for 10 ms, repeatable every 2 s

Communication & Power

MOD power

75 mA @ 18…32 V DC

MOD power passthrough

9.55 A @ 18…32 V DC

SA power passthrough

9.95 A @ 10…32 V DC

Power dissipation

3.2 W

Thermal dissipation

10.9 BTU/hr

Physical & Environmental

Dimensions (H×D)

138 mm × 105 mm (5.43″ × 4.15″)

Enclosure type

None (open-style)

Operating temperature

0 °C to +60 °C (32 °F to 140 °F)

Certifications

China CCCAmerican Bureau of ShippingATEXIECExRegistro Italiano NavaleEurasian Economic Community

This module was certified (as of May 19, 2026) to multiple schemes including China CCC, American Bureau of Shipping, ATEX, IECEx, Registro Italiano Navale, Eurasian Economic Community. Refer to product label for specific unit certifications.
