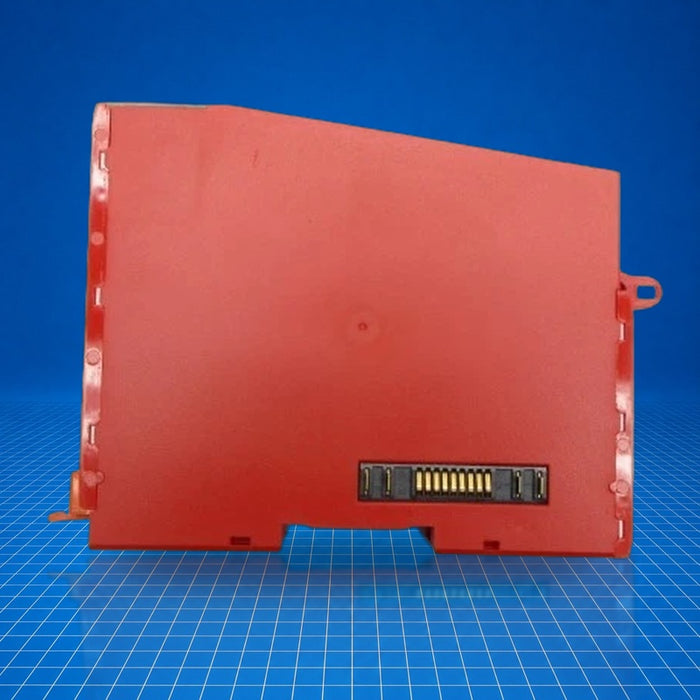

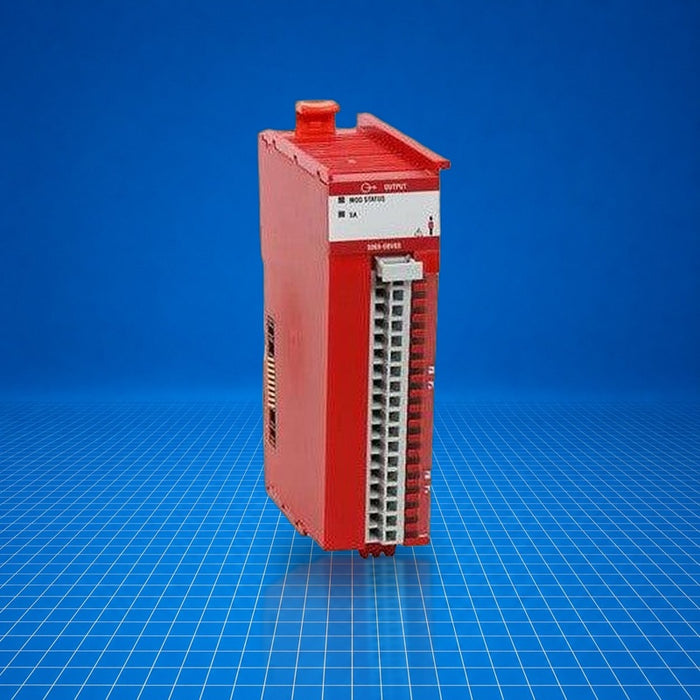

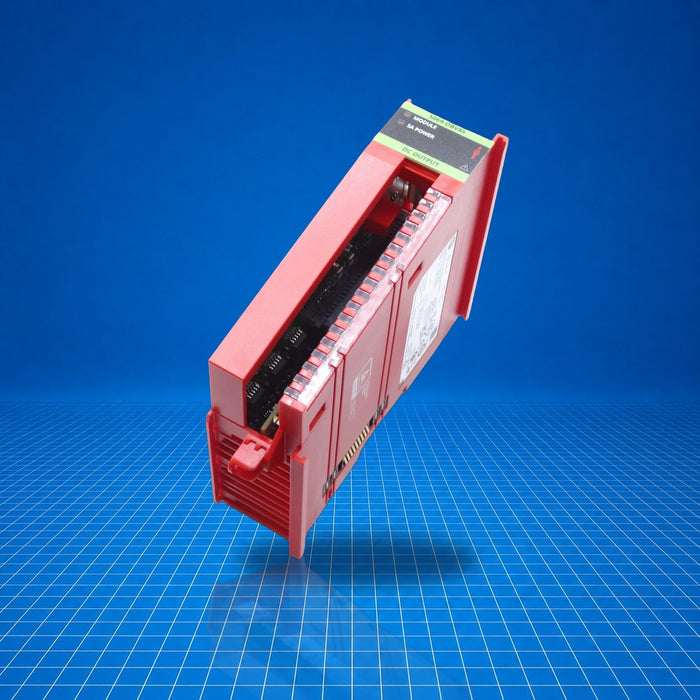

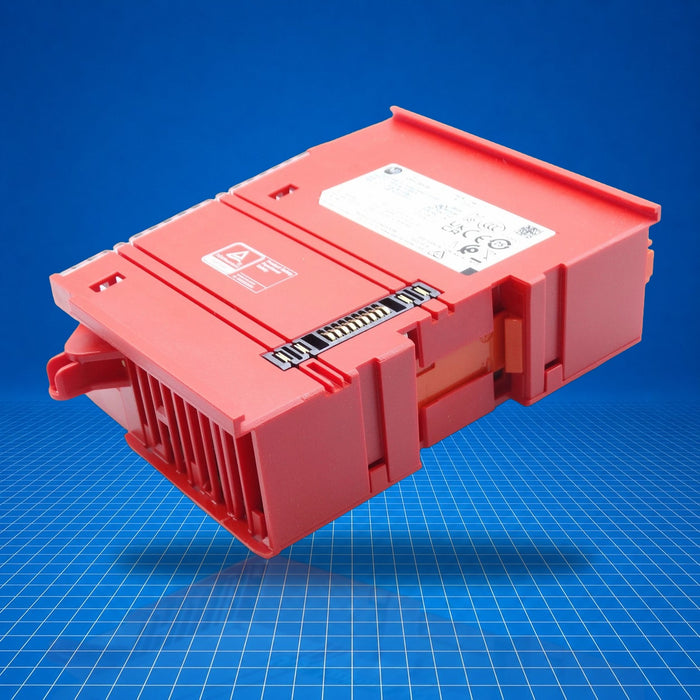

5069-OBV8S Allen-Bradley
Original price
$759.96
-
Original price
$962.50
Original price
$759.96
$759.96
-
$962.50
Current price
$759.96
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 5069-OBV8S is an Allen-Bradley Compact 5000™ series safety output module, designed for CompactLogix® and GuardLogix® control systems. It provides eight configurable DC safety output channels (sourcing or bipolar) operating in the 18-32 V DC range. As a safety-rated output field device, it integrates directly into distributed I/O networks via EtherNet/IP, and is typically used to drive safety-critical loads such as contactors, solenoids, or signaling devices in machine safety and industrial process systems. Part number 5069-OBV8S.
Best Suited For
- Safety output expansion for CompactLogix 5380 controllers
- GuardLogix® safety systems requiring Cat. 4/PLe/SIL CL3 outputs
- Distributed I/O installations on EtherNet/IP networks
- Controlling safety-critical actuators (e.g., contactors, solenoids)
Channels
8
Output voltage range
18-32 V DC
Output type
Configurable sourcing or bipolar
Safety rating
SIL CL3 / PLe / Category 4
Technical Specifications
I/O & Electrical
Number of outputs
8
Output voltage range
18-32 V DC
Nominal on-state voltage
24 V DC
Minimum on-state voltage
17.5 V DC
Maximum on-state voltage
32 V DC
Maximum on-state voltage drop
0.5 V DC
Maximum off-state voltage
0.5 V DC
Output current rating
1 A per channel (approx.)
Maximum output delay time
4 ms
Safety reaction time
4.5 ms
Communication & Power
Isolation voltage
250 V (continuous), basic
Reverse voltage protection
Supported
Overtemperature detection/protection
Supported per point
Physical & Environmental
Depth
105 mm (4.15")
Height
138 mm (5.43")
Certifications
CEUL ListedATEXIECExChinese CCCKorean KC
