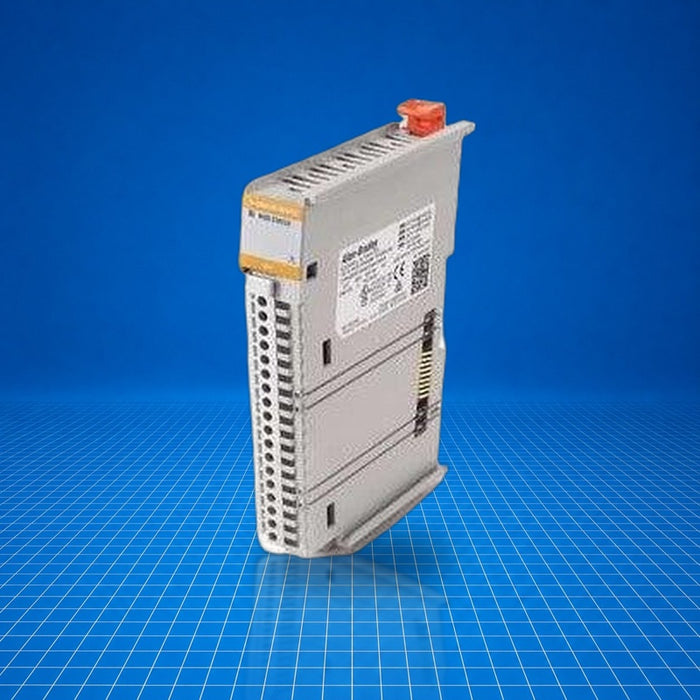

5069-OF4 Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

5069-OF4 Allen-Bradley

$1,201.75 - $1,264.97
$1,264.97
$1,201.75 - $1,264.97
$1,264.97
Surplus - Tested (With Warranty)
Need a Specific Revision?
$1,264.97
2 in stock
New / Open-Box Surplus
Need a Specific Revision?
$1,201.75
5 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (2) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 5069-OF4 is a CompactLogix 5000 family analog output module by Allen-Bradley. It provides four channels capable of sourcing either voltage or current signals (±10 V, 0-10 V, 0-5 V; 0-20 mA, 4-20 mA) directly to field devices. Installed on the Compact 5000 I/O backplane, it expands system output capacity for process control, analog actuation, and set-point output tasks in industrial automation. Typical applications include proportional valve control, actuator driving, analog set-point transmission, and distributed control loops.

Best Suited For

  • Distributed analog control via CompactLogix backplane
  • Proportional valve or analog actuator driving
  • Generating analog control set-points
  • Process variable output in control loops
Channels
4 analog outputs
Output modes
Voltage or current
Power dissipation
3.3 W max
Resolution
16-bit
Operating temp.
0 °C to 60 °C

Technical Specifications

I/O & Electrical

Analog output range (voltage)
±10 V, 0…10 V, 0…5 V
Analog output range (current)
0…20 mA, 4…20 mA
Resolution
16-bit (varies by range, e.g. 320 µV/bit)
Calibrated accuracy @ 25 °C
0.10% full scale
Accuracy drift with temperature
Voltage: 0.30% FS; Current: 0.50% FS
Repeatability
0.05 %
Conversion time per channel
25 µs
Step response to 63 %
Voltage: ≤18 µs; Current: ≤1 ms
Power dissipation, max
3.3 W
Thermal dissipation, max
11.3 BTU/hr

Communication & Power

MOD power
75 mA @ 18…32 V DC
MOD power passthrough, max
9.55 A @ 18…32 V DC
SA power
150 mA @ 18…32 V DC (250 mA noted in some context)
SA power passthrough, max
9.95 A @ 18…32 V DC

Physical & Environmental

Width
22 mm
Height
144.57 mm
Depth
105.42 mm
Weight
175 g
Operating temperature
0 °C to 60 °C
Non-operating temperature
-40 °C
Relative humidity
5…95% non-condensing
Vibration (operating)
5 G @ 10…500 Hz
Shock (operating)
30 G
Shock (non-operating)
50 G
Enclosure type
Open-style, DIN-rail mount

Certifications

Certified to IEC 61000-6-4 (emissions), ESD immunity 6 kV contact / 8 kV air, EFT/B immunity ±4 kV power, ±3 kV outputs, Surge ±1 kV line-line, ±2 kV line-earth, Radiated RF and Conducted RF immunity to specified levels (150 kHz-2.7 GHz); isolation: 250 V continuous basic, 50 V functional between SA power and outputs.
