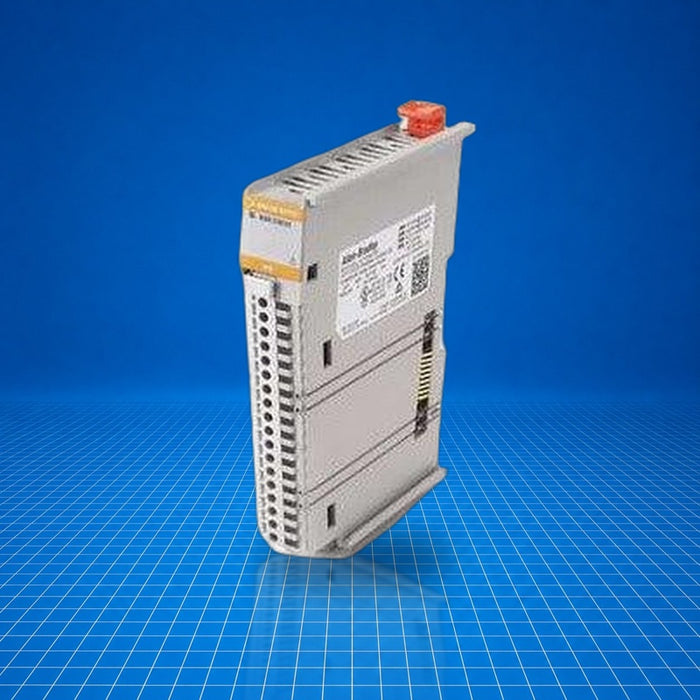

Product image is representative; revision or series may vary.
Contact us to request a specific version.

5069-OF8 Allen-Bradley

Name: 5069-OF8 Allen-Bradley
Brand: Allen Bradley
SKU: 5069-OF8
Price: 1737.5 USD
Availability: InStock

$1,737.50 - $7,128.00

$1,737.50

$1,737.50 - $7,128.00

$1,737.50

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (5) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Allen-Bradley 5069-OF8 is a Compact 5000 analog output module designed for CompactLogix and Compact GuardLogix control systems. It provides eight independently configurable analog outputs capable of voltage or current signals. The module installs on DIN rail in distributed I/O networks and supplies field-side power up to 32V DC. It is suited for precise analog control and interface in process, packaging, motion, and general machine-level applications. 5069-OF8 integrates into the Logix platform for centralized control with local signal conversion.

Best Suited For

Distributed I/O in CompactLogix or Compact GuardLogix systems
Generating analog voltage or current signals to actuators (e.g. valves, drives)
Applications requiring eight channels of analog output in compact footprint
Integration into EtherNet/IP-based control architectures

Channels

8 analog outputs

Output modes

Voltage or current selectable

Power dissipation (max)

5.3 W

Mounting

DIN-rail (EN 50022 35 × 7.5 mm)

Technical Specifications

I/O & Electrical

Output range, voltage

±10 V, 0…10 V, 0…5 V

Output range, current

0…20 mA (4…20 mA)

Channels

8

Resolution

16-bit (e.g. 320 µV/bit at ±10.5 V)

Calibrated accuracy @25 °C

Voltage: 0.10 % FS; Current: 0.10 % FS

Drift with temperature

Voltage: 0.30 % FS; Current: 0.50 % FS

Repeatability

0.05 %

Step response time to 63 %

Voltage: 18 µs max; Current: 1 ms max

Conversion time per channel

25 µs

Communication & Power

SA power

250 mA @ 18…32 V DC

SA power passthrough, max

9.95 A @ 18…32 V DC

MOD power

75 mA @ 18…32 V DC

MOD power passthrough, max

9.55 A @ 18…32 V DC

Power dissipation, max

5.3 W

Thermal dissipation, max

18.1 BTU/hr

Physical & Environmental

Dimensions (W × H × D)

22 mm × 144.57 mm × 105.42 mm

Weight

175 g

Mounting

DIN-rail, EN 50022 35 × 7.5 mm

Vibration

5 G @ 10…500 Hz

Shock

Operating: 30 G; Non-operating: 50 G

Operating temperature

0 °C…60 °C

Surrounding air temperature, max

60 °C

Nonoperating temperature

-40 °C

Relative humidity

5…95 % non-condensing

Enclosure type

None (open-style)

Certifications

Certified under China CCC, American Bureau of Shipping, Registro Italiano Navale, Eurasian Economic Community, as of May 17 2026. Review product label for specific certifications.
