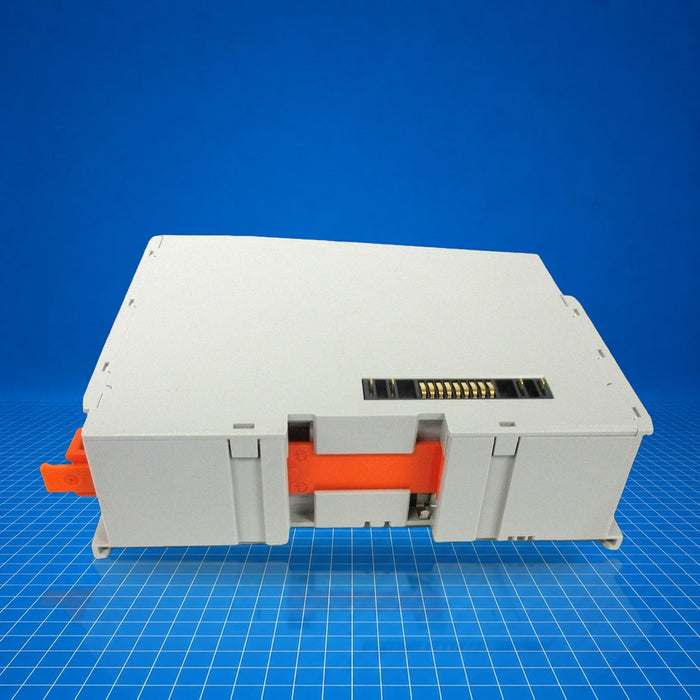

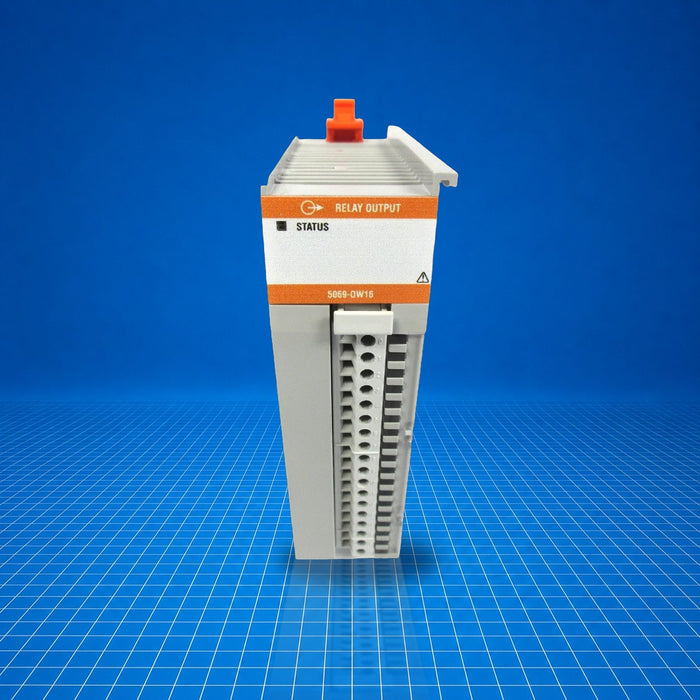

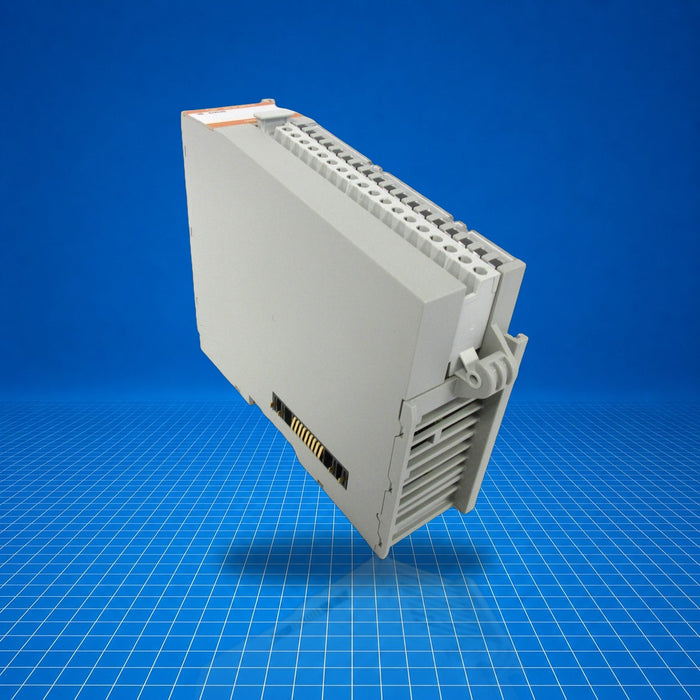

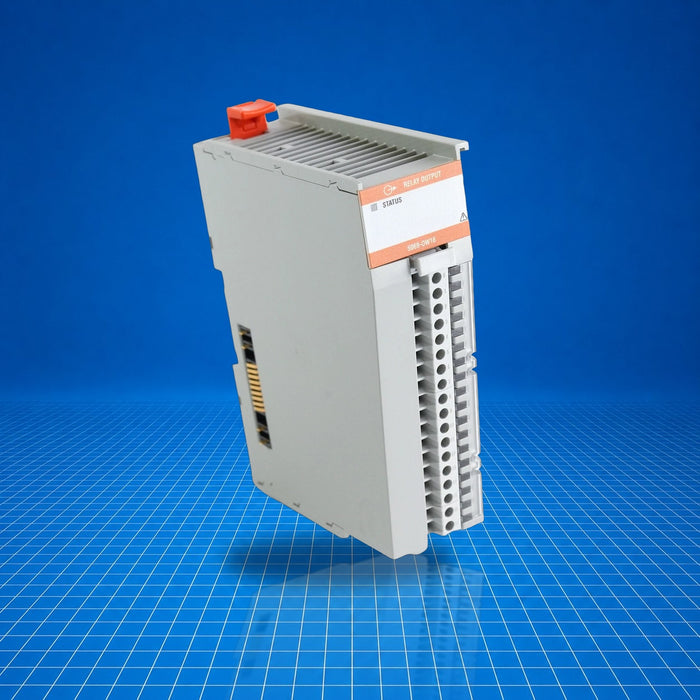

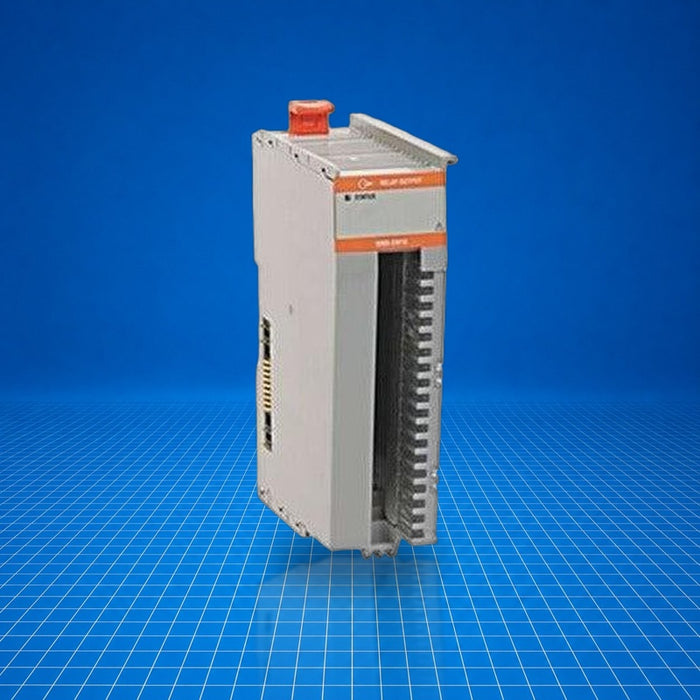

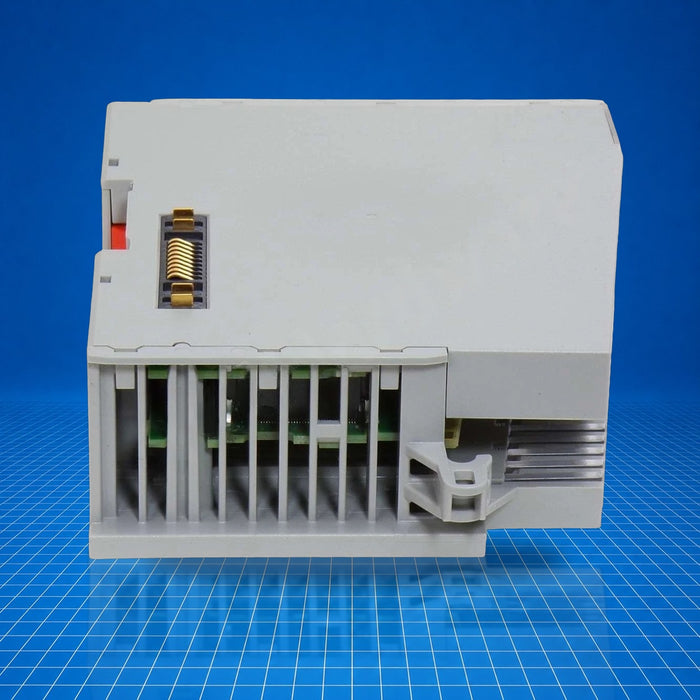

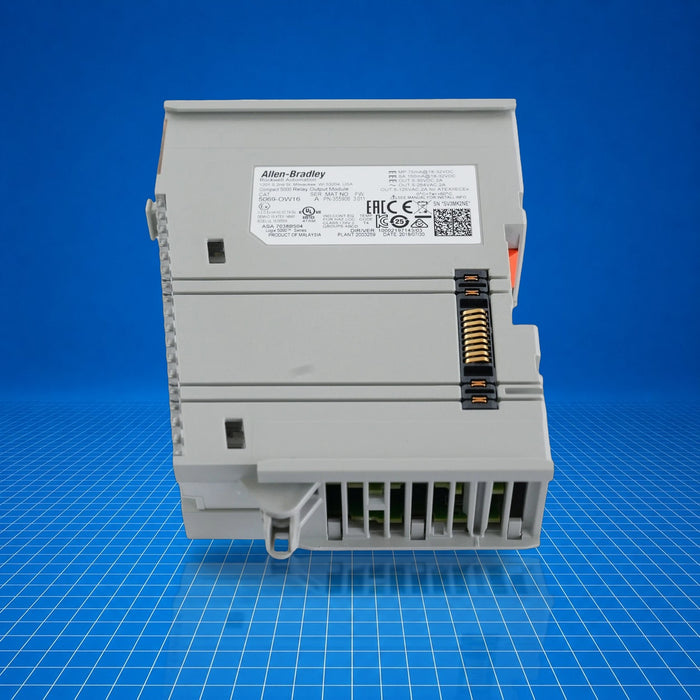

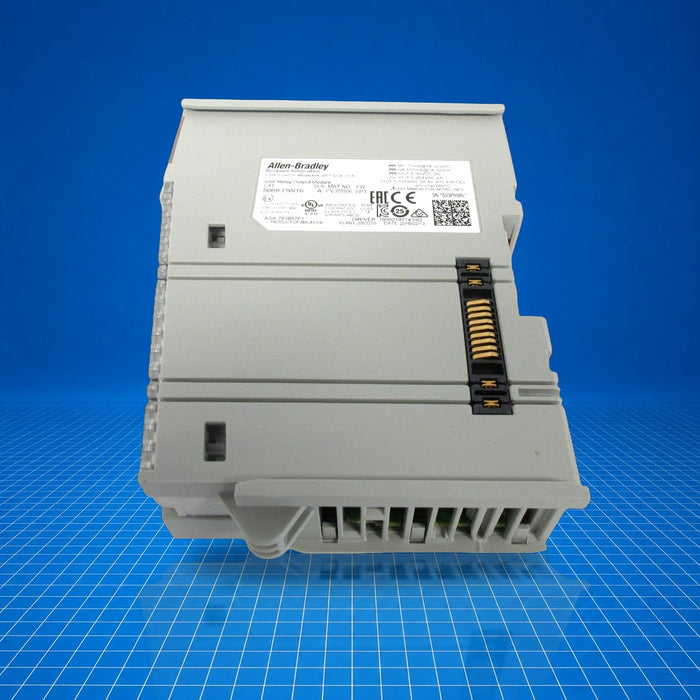

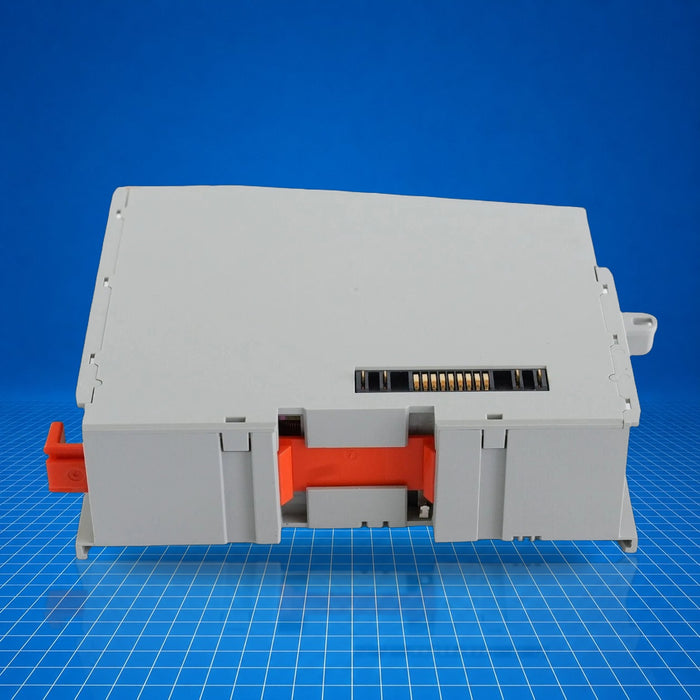

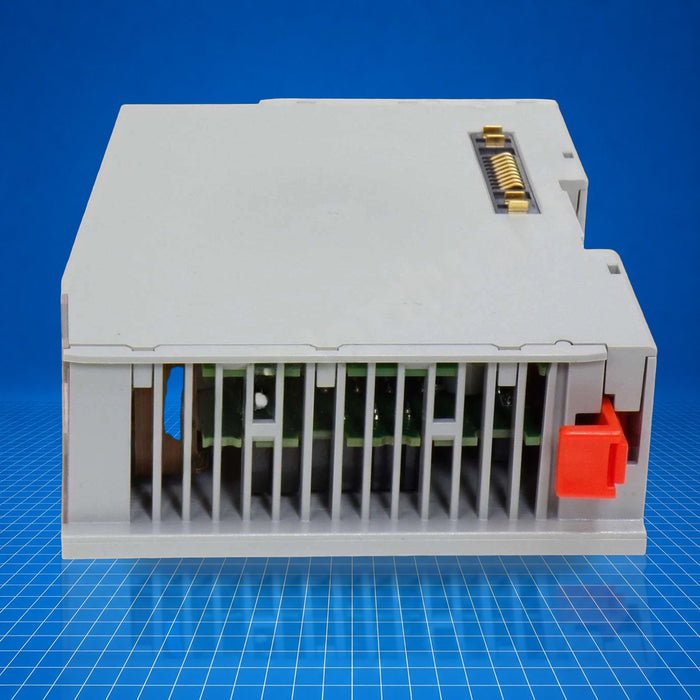

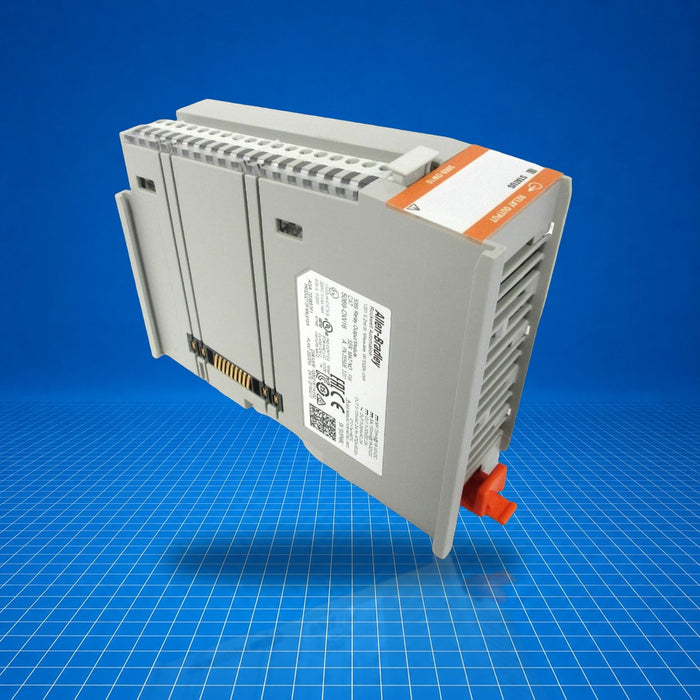

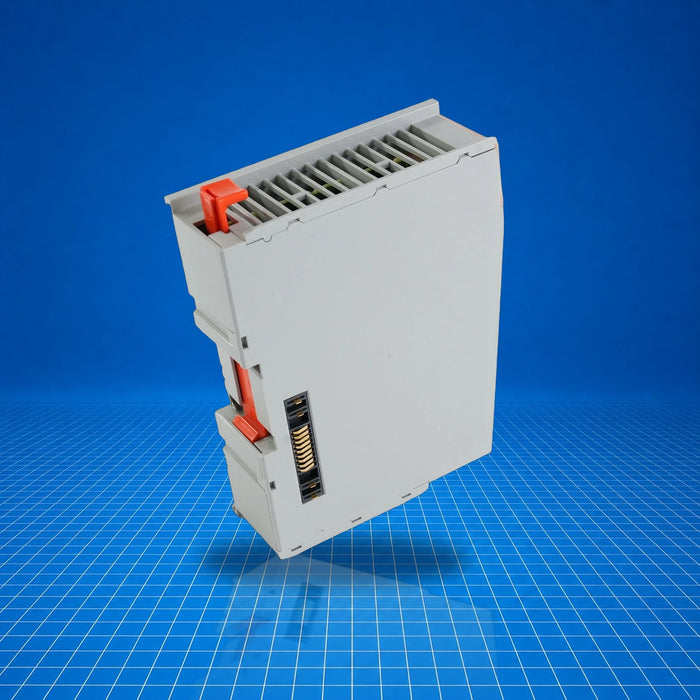

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

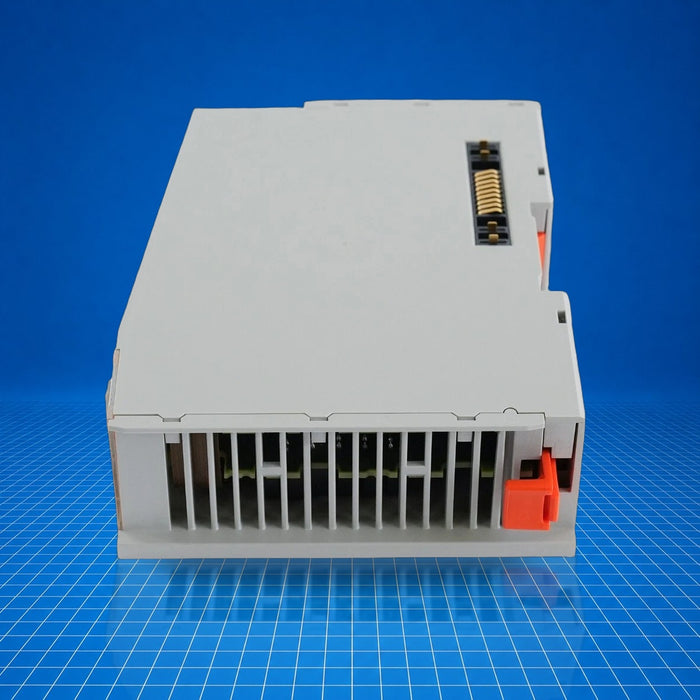

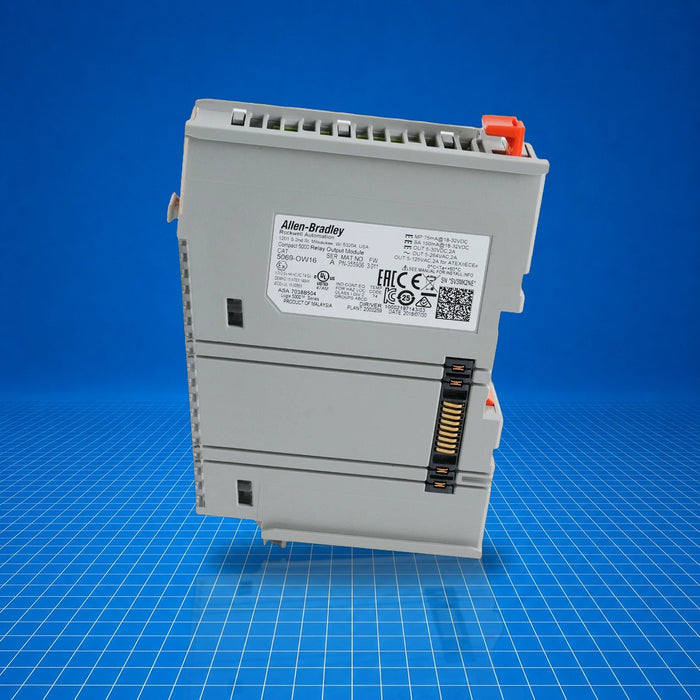

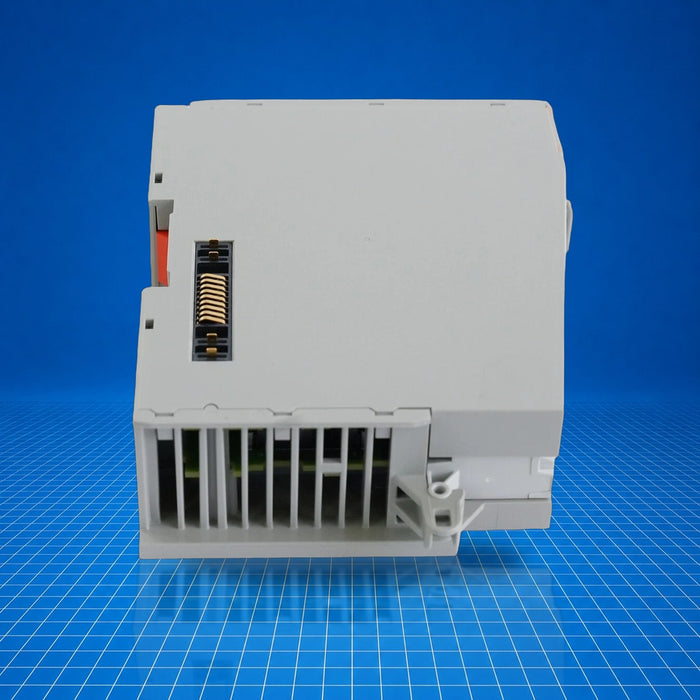

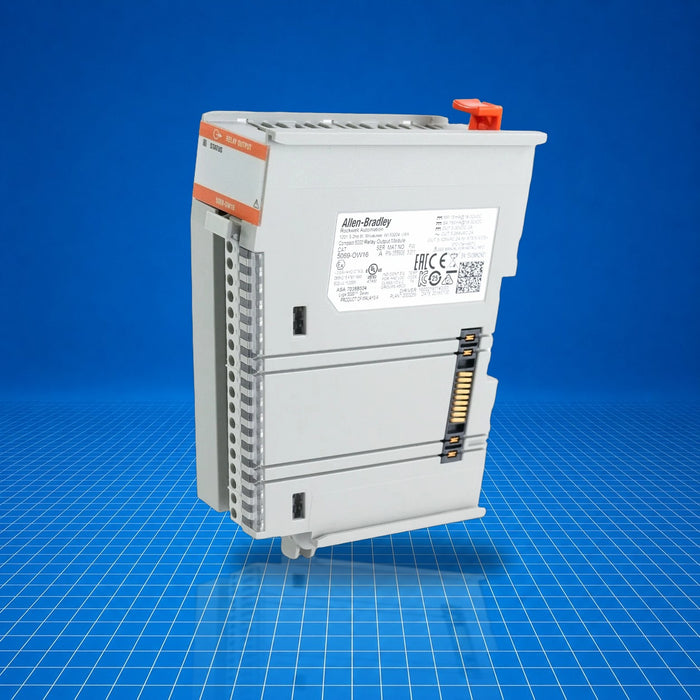

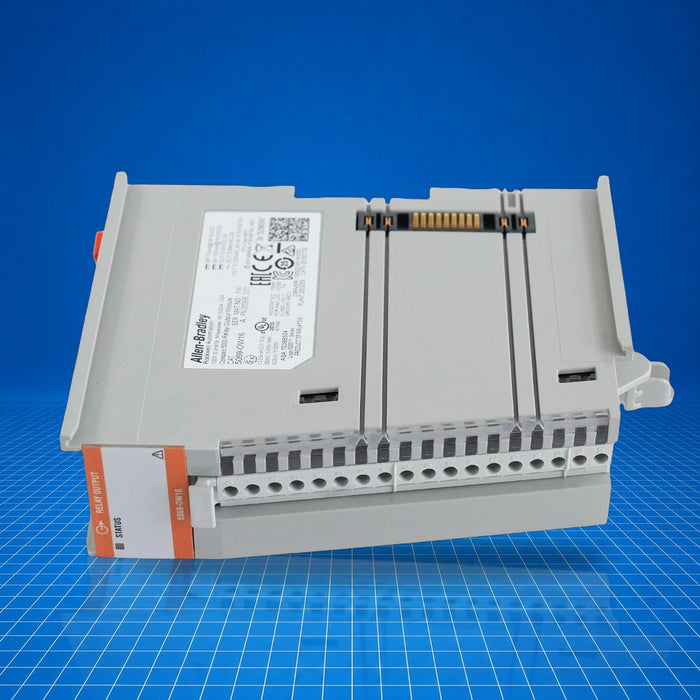

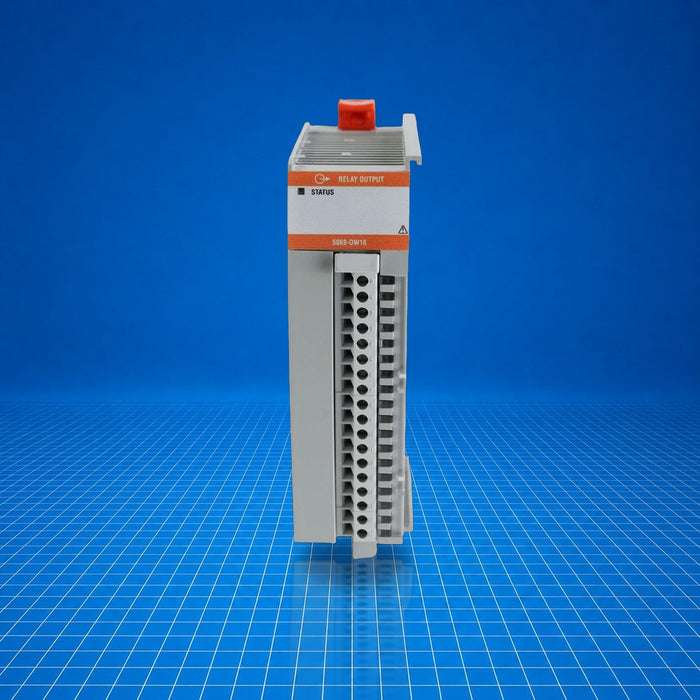

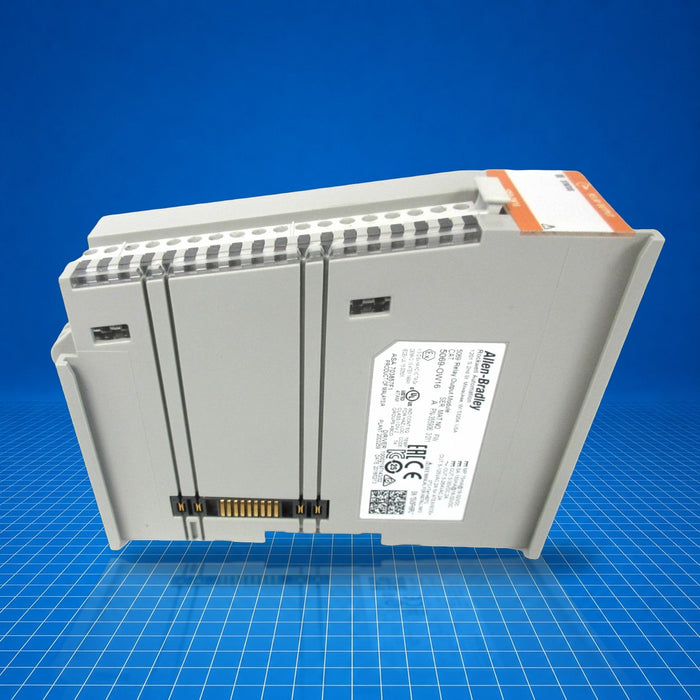

5069-OW16 Allen-Bradley
Original price
$959.75
-
Original price
$1,116.36
Original price
$959.75
$959.75
-
$1,116.36
Current price
$959.75
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 5069-OW16 is an Allen-Bradley Compact 5000 relay output module featuring sixteen Form A (normally-open) relay outputs arranged in two groups of eight. It installs on CompactLogix 5069 I/O racks and provides load control through both AC (5-264 V) and DC (5-125 V) outputs. Typical applications include machine control, signaling, and small motor or valve actuation in industrial automation systems. Part number: 5069-OW16.
Best Suited For
- CompactLogix 5069 I/O expansion
- Load control with mixed AC/DC voltages
- Distributed control architectures
- Signal output for machines or valves
Outputs
16 Form A relay channels
Voltage range
5-125 V DC; 5-264 V AC
Output current per module
16 A max
Power dissipation
3.0 W
Technical Specifications
I/O & Electrical
Number of outputs
16
Output channel type
Normally-open (Form A) relay
Voltage range, outputs
5…125 V DC; 5…264 V AC
Max output current per group
8 A
Max output current per module
16 A
Minimum load current
1 mA
Expected contact life
300 k cycles resistive, 100 k cycles inductive
Pilot duty rating
5…240 V AC C300; 5…125 V DC R150 per channel
Communication & Power
MOD power draw, Series A/B
75 mA @ 18…32 V DC
MOD power passthrough
9.55 A @ 18…32 V DC
SA power draw, Series A/B
150 mA @ 18…32 V DC
SA power passthrough
9.95 A @ 18…32 V DC
Physical & Environmental
Operating temperature
32 °F to 140 °F (0 °C to 60 °C)
Enclosure type
None (open-style)
Wire size for terminal blocks
0.5-1.5 mm² (22-16 AWG), 105 °C rated; min 18 AWG for load connections
Shock/vibration
- (not specified in sources)
Certifications
UKEX/ATEXIECEx
Module complies with UKEX/ATEX/IECEx when used ≤ 125 V AC or ≤ 30 V DC.
