5069-OW4I Allen-Bradley
Original price
$788.00
-
Original price
$800.00
Original price
$800.00
$788.00
-
$800.00
Current price
$800.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

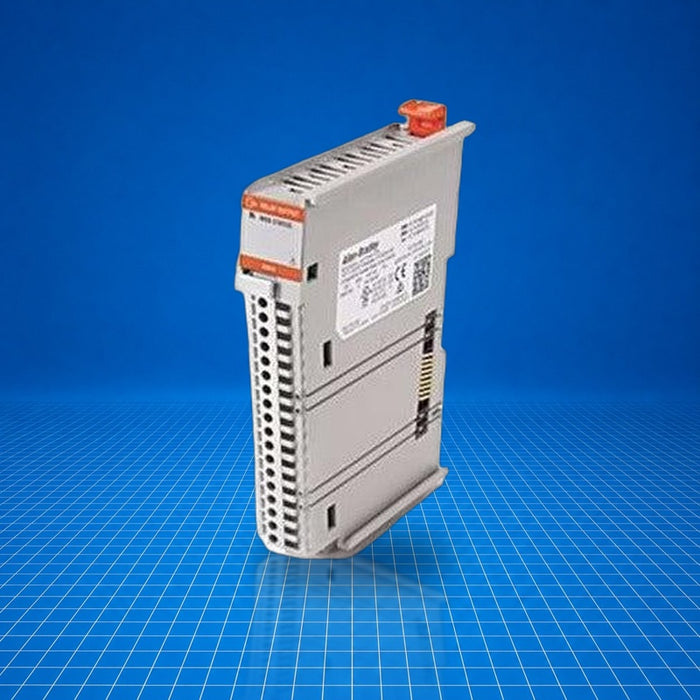

The 5069-OW4I is a Compact 5000 I/O isolated relay output module from Allen-Bradley. It provides four individually isolated Form A (normally open) relay outputs that interface logic control signals from a CompactLogix or Compact GuardLogix controller to field loads across AC or DC voltages. Designed for local or remote I/O extensions in industrial control systems, the 5069-OW4I is commonly used for switching pilot devices, actuators, or contactor coils in manufacturing, process automation, packaging machinery, and machine control panels. Part number 5069-OW4I.
Best Suited For
- Switching diverse field-side AC or DC loads via PLC
- Point-to-point isolated relay control in CompactLogix/GuardLogix systems
- Local installation in compact control panels
- Field device isolation where channel-to-channel separation is required
Channels
4
Relay type
Form A (normally open)
Isolation
Point-to-point, basic insulation
Max relay rating
2 A per channel (resistive)
Power dissipation
2.3 W
Technical Specifications
I/O & Electrical
Channels
4
Relay type
Form A (normally open)
Relay rating (resistive)
2 A per channel @ 5…30 V DC; 2 A per channel @ 5…264 V AC, 50/60 Hz
Output voltage range
5…125 V DC; 5…264 V AC
Max module output current
8 A
Off-state leakage
0 mA (dry contact, no onboard snubbers)
Expected contact life
300 000 cycles resistive; 100 000 cycles inductive
Communication & Power
MOD power
75 mA @ 18…32 V DC
MOD power passthrough, max
9.55 A @ 18…32 V DC
SA power passthrough, max
9.95 A @ 0…32 V DC
Power dissipation, max
2.3 W
Thermal dissipation, max
7.85 BTU/hr
Physical & Environmental
Module status indicator
1 green/red
I/O status indicators
4 yellow/red
Isolation voltage
250 V (continuous), basic insulation
