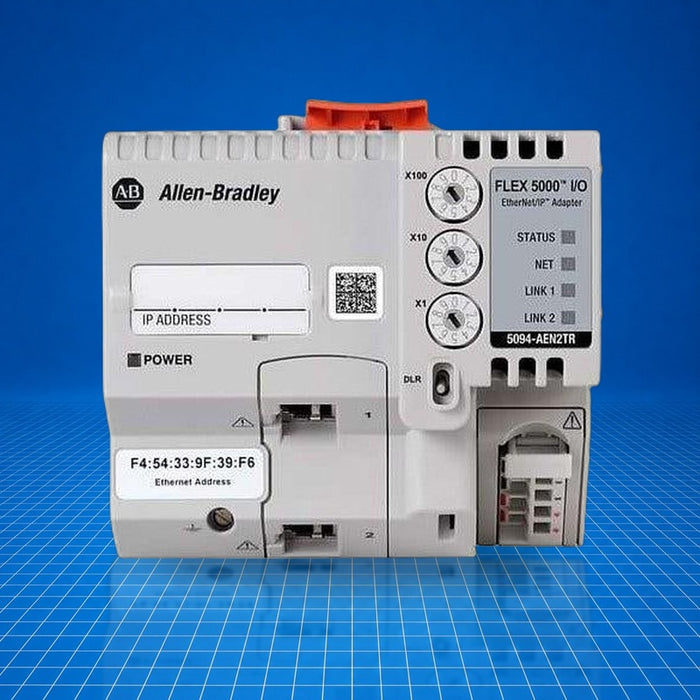

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
5094-AEN2TR Allen-Bradley
Original price
$1,306.25
-
Original price
$1,355.50
Original price
$1,306.25
$1,306.25
-
$1,355.50
Current price
$1,306.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 5094-AEN2TR is an Allen-Bradley FLEX 5000 EtherNet/IP adapter module designed to interface up to 16 FLEX 5000 I/O modules with a Logix 5000 control system. It provides dual RJ45 EtherNet/IP ports supporting copper media at data rates up to 1 Gbps and accommodates common network topologies including star, linear and DLR. The module mounts via DIN rail and serves as the Ethernet communication gateway within FLEX 5000 distributed I/O architectures.
Best Suited For
- Machine-level I/O consolidation in Logix 5000 systems
- EtherNet/IP networking of up to 16 FLEX 5000 I/O modules
- Systems requiring dual-port RJ45 connectivity
- Applications using DLR, linear, or star Ethernet topologies
Supported I/O modules
16 FLEX 5000 I/O modules
EtherNet/IP ports
2 × RJ45 (copper)
Supported network speeds
10 Mbps, 100 Mbps, 1 Gbps
Power input
18-32 V DC, 1 880 mA (typ.)
Power dissipation
6.2 W @ 18 V DC
Technical Specifications
I/O & Electrical
Input voltage
18-32 V DC
Operating current
1 880 mA
Inrush current
5 700 mA for 100 ms
Backplane supply
15 V DC, 1 800 mA
Isolation voltage
300 V (continuous)
Power dissipation, max
6.2 W @ 18 V DC
Communication & Power
EtherNet/IP ports
2 × RJ45, copper
Network speeds
10/100/1 000 Mbps
Topologies supported
star, linear, DLR
Power to Ethernet isolation
No isolation between Ethernet ports
Physical & Environmental
Weight
0.45 kg (1.00 lb)
Mounting
DIN-rail, open-style enclosure
Ambient operating temperature
-40…70 °C
Thermal dissipation
21.1 BTU/hr @ 24 V DC
Certifications
UL Listedc-UL-usCERCMKCODVA
UL 61010-1 (3rd ed), UL 61010-2-201, CAN/CSA-C22.2 61010-1; c-UL-us, CE, RCM, KC, ODVA, ABS, UKCA as of May 19 2026
