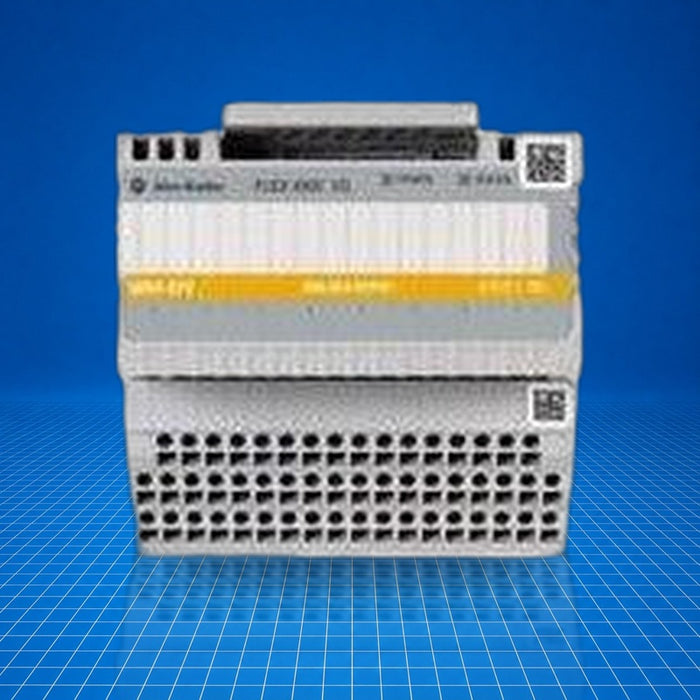

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
5094-OF8 Allen-Bradley
Original price
$1,837.50
-
Original price
$3,608.50
Original price
$3,608.50
$1,837.50
-
$3,608.50
Current price
$3,608.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 5094-OF8 module is an Allen-Bradley FLEX 5000 series analog output module providing eight single-ended channels capable of current (0…20 mA, 4…20 mA) or voltage (±10 V, 0…10 V, 0…5 V) outputs in industrial control systems. It functions within a Logix-based distributed I/O architecture and is typically deployed in process control or machine-level applications requiring precision analog signaling.
Best Suited For
- FLEX 5000 distributed I/O systems
- Process control analog outputs
- Machine-level multi-channel analog signaling
- CompactLogix or Logix 5000 controller integration
Channels
8 servo-ended outputs
Output types
Voltage & current (configurable)
Resolution
16-bit
Operating temp
-40 °C to +70 °C
Backplane power
15 V DC, 75 mA max
Technical Specifications
I/O & Electrical
Output channels
8 single-ended
Voltage output ranges
±10 V, 0…10 V, 0…5 V
Current output ranges
0…20 mA, 4…20 mA
Resolution
16 bits (voltage: 320 µV/bit at ±10.5 V; 160 µV/bit at 10.5 V; 80 µV/bit at 5 V; current: 320 nA/bit at 21 mA)
Drive capability
Voltage: ≥1000 Ω; Current: ≤500 Ω
Max capacitive load (voltage)
1 µF
Max inductive load (current)
1 mH
Open-circuit detection
current mode only
Short-circuit detection
voltage mode only (electronically limited to 16 mA)
Data format
IEEE 754 32-bit floating point
Conversion time per channel
25 µs
Scan time per group
2.0 ms
Step response time (63%)
Voltage: ≤18 µs; Current: ≤1 ms
Overvoltage protection
±32 V DC
Repeatability
0.05 %
Accuracy at 25 °C
0.10 % full scale (voltage & current)
Temperature drift
47 ppm/°C (voltage), 60 ppm/°C (current)
Communication & Power
Backplane power voltage
15 V DC
Backplane power current, max
75 mA
Sensor/Actuator power voltage
18…32 V DC
Sensor/Actuator power current, max
260 mA
Power dissipation, max
3.7 W
Thermal dissipation, max
12.62 BTU/hr
Physical & Environmental
Operating temperature
-40 °C to +70 °C
Enclosure type
None (open-style)
Isolation voltage
250 V continuous, basic insulation (system to field), no isolation between SA power and outputs or between outputs
Dimensions (H×W×D)
87.0 × 94.0 × 54.0 mm (3.43 × 3.70 × 2.13 in.)
TB wire size (signal)
0.34…2.5 mm² (22…14 AWG) solid/stranded, ferrules per DIN 46 228/1
TB wire size (power)
2.5 mm² (14 AWG) Cu multi-strand
TB keying
3
Mounting orientation
Horizontal/horizontal inverted/vertical/vertical inverted
Certifications
Australian RCMChina CCCRussian Pattern ApprovalAmerican Bureau of ShippingATEXCEIECEx SchemeKorean KCUL ListedUL Listed Hazardous
