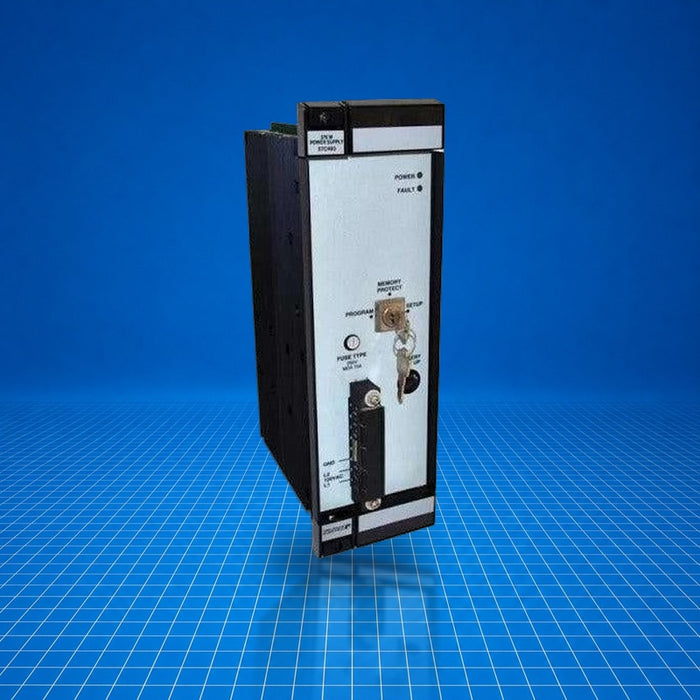

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
57C493 Allen-Bradley
Original price
$825.00
-
Original price
$3,289.00
Original price
$825.00
$825.00
-
$3,289.00
Current price
$825.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 57C493 is an Allen-Bradley AutoMax® power supply module used in the AutoMax or DCS 5000 rack systems. It provides the DC power rails required by control modules in a modular backplane-based control rack, converting 115 VAC input to multiple regulated DC outputs. The module supports 6-, 10-, or 16-slot AutoMax/DCS racks and delivers continuous power to downstream control modules. It is typically applied in industrial process control and DCS environments requiring centralized rack power distribution.
Best Suited For
- AutoMax or DCS 5000 rack installations
- Powering digital I/O or processor modules in multi-slot racks
- Centralized DC power source for control racks
- Applications where 115 VAC to DC conversion is required
- Environments with altitude up to 10 000 ft (derated above 5000 ft)
Input voltage
Nominal 115 VAC (85-132 VAC acceptable)
Continuous output power
376 Watts
Outputs
+5 V @ 50 A, ±12 V @ 4 A, ±15 V @ 1 A
Operating temperature
0 °C to 60 °C
Technical Specifications
I/O & Electrical
Input voltage
85-132 VAC (nominal 115 VAC)
Input current
6 A @ 120 VAC
Frequency range
47-63 Hz
Output +5 VDC current
50 A
Output ±12 VDC current
4 A
Output ±15 VDC current
1 A
Maximum continuous output power
376 W
Communication & Power
Hold-up time
20 ms minimum after loss of AC input
Efficiency
≥ 75 % at nominal line and full load
Regulation +5 V
-2.5 % to +3 %
Regulation ±12 V
±10 %
Regulation ±15 V
±1 %
Physical & Environmental
Operating temperature range
0 °C to 60 °C
Storage temperature range
-40 °C to 85 °C
Altitude
Up to 10 000 ft (derate 1 °C per 1000 ft above 5000 ft)
Dimensions (H×W×D)
29.8 cm × 10.2 cm × 19.7 cm
Weight
3.8 kg
