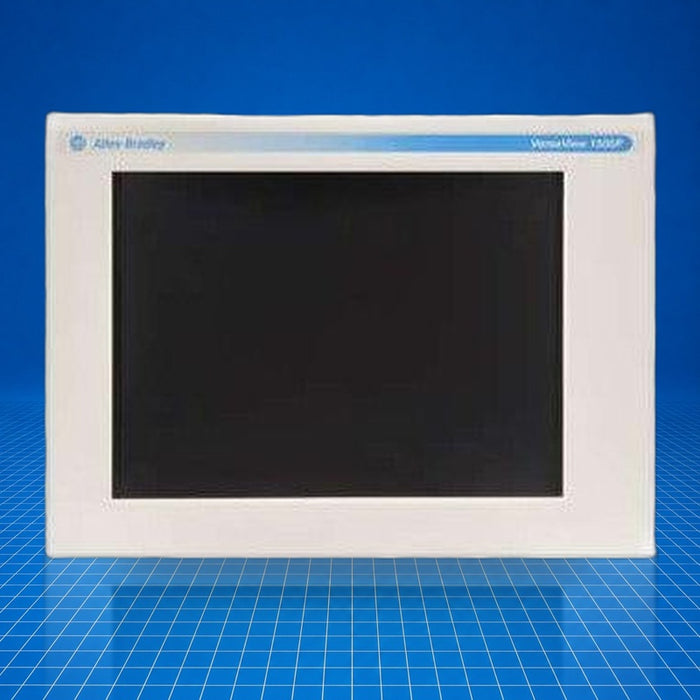

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6181F-15TSXP Allen-Bradley
Original price
$0.00
-
Original price
$2,819.61
Original price
$2,819.61
$0.00
-
$2,819.61
Current price
$2,819.61
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 6181F-15TSXP is an integrated-display industrial computer from the VersaView Plus 6181F family, featuring a 15-inch resistive touchscreen and solid-state drive. It serves as a panel-mount operator interface and embedded controller, typically used for machine control, HMI visualization, and industrial monitoring in manufacturing and process environments. This unit offers display, compute, memory, and I/O capabilities in a single panel-mounted package-collocating user interface and embedded computing functions.
Best Suited For
- Panel-mounted operator interface in control cabinets
- Embedded visualization and machine control tasks
- Applications requiring a built-in touchscreen display
- Environments with moderate industrial shock and vibration
Display Size & Resolution
15 in, 1024 × 768 pixels
Processor & Memory
Intel Celeron M423, 2 GB (expandable to 4 GB), 16 GB SSD
Power Input
100-240 V AC, 47-63 Hz
Enclosure Rating
NEMA 1, 4, 12
Certifications
CE, C-TICK, c-UL-us, RoHS
Technical Specifications
I/O & Electrical
Input voltage
100-240 V AC, 47-63 Hz
Input current
1 A @ 100 V; 0.42 A @ 240 V
Power consumption
100 VA
Heat dissipation
65 W
Communication & Power
Serial ports
2
Parallel port
1
Ethernet ports
2
Processor
Intel Celeron M423, 1.06 GHz, 1 MB L2 cache
System memory
2 GB pre-installed DDR2, expandable to 4 GB
Storage
16 GB compact SSD
Physical & Environmental
Display size
305 mm × 229 mm (12 × 9 in)
Display resolution
1024 × 768 pixels, 16.7 million colors
Refresh rate
15 ms
Viewing angles
400° vertical, 600° horizontal
Dimensions
309 × 410 × 95 mm (12.16 × 16.14 × 3.74 in)
Weight
9 kg (19.8 lb)
Operating temperature
0 to 50 °C (32 to 122 °F), 10-90% non-condensing humidity
Shock rating
15 G
Vibration
2 G, 57-640 Hz
Altitude
Up to 2000 m (6,561 ft) without de-rating
Certifications
CEC-TICKc-UL-usRoHS
