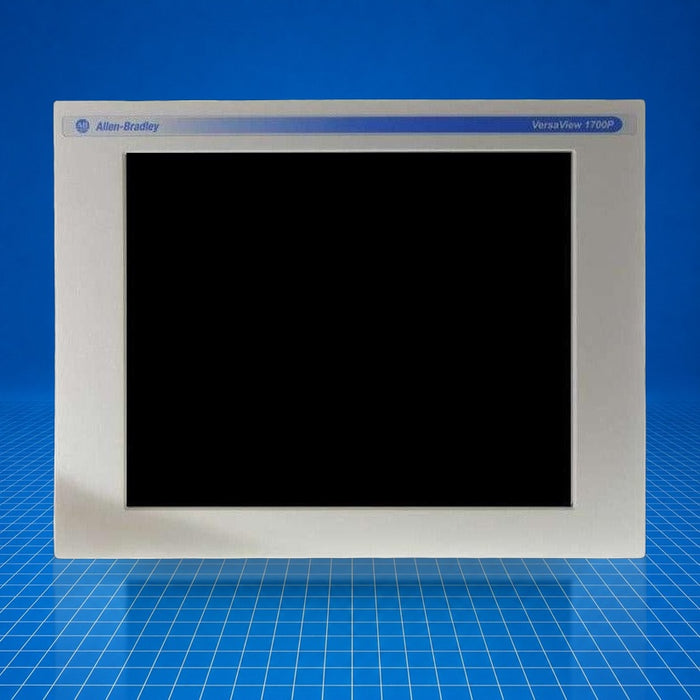

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6181P-15TPXPH Allen-Bradley
Original price
$0.00
-
Original price
$1,747.50
Original price
$1,747.50
$0.00
-
$1,747.50
Current price
$1,747.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 6181P-15TPXPH is a VersaView Plus integrated display computer featuring a 15-inch touchscreen. Part of the 6181P industrial computer family, it combines a display with PC computing in one enclosure. In control systems, it serves as an operator interface and engineering workstation, often deployed in machine-level panels, SCADA terminals, or distributed HMI stations in manufacturing or process systems. The 6181P-15TPXPH integrates computing, display, and I/O in one unit.
Best Suited For
- Panel-mounted operator interface
- Machine-level engineering workstation
- SCADA or visualization terminal
- Factory environments with wash-down or harsh conditions
Display size
15 in.
Touchscreen
Yes (PCAP)
Power input
90-264 V AC
Weight
20 lbs (9.07 kg)
Technical Specifications
I/O & Electrical
Input voltage
90-264 V AC autoranging, 47-63 Hz
AC power consumption
150 VA (1.5 A at 100 V RMS, 0.63 A at 240 V RMS)
Communication & Power
Serial ports
3 COM ports (COM1, COM2, COM4)
Ethernet ports
2 × 10/100 M Ethernet
Parallel port
Yes
USB ports
2 × USB (USB 2.0)
PS/2 ports
1 × mouse, 1 × keyboard
VGA
Yes
Physical & Environmental
Display resolution
1024 × 768, 256K colors
Display area
12 × 9 in.
Response time
15 ms (typical)
Enclosure rating
NEMA 1, 4, 12; IP66
Operating temperature
0 °C to 50 °C
Non-operating temperature
-20 °C to 60 °C
Operating shock
15 g, ½-sine, 11 ms
Non-operating shock
30 g, ½-sine, 11 ms
Operating vibration
1 g peak, 10-500 Hz
Non-operating vibration
2 g peak, 10-500 Hz
Memory
256 GB
Processor
Intel Core Duo U2500
Mounting
Panel mount
Weight
20 lbs (9.07 kg)
Certifications
When marked, certifications include UL Listed, cUL Listed, CE, C-Tick/RCM, RoHS, EAC, WEEE, KC.
