6181X-12A2SWX1DC Allen-Bradley

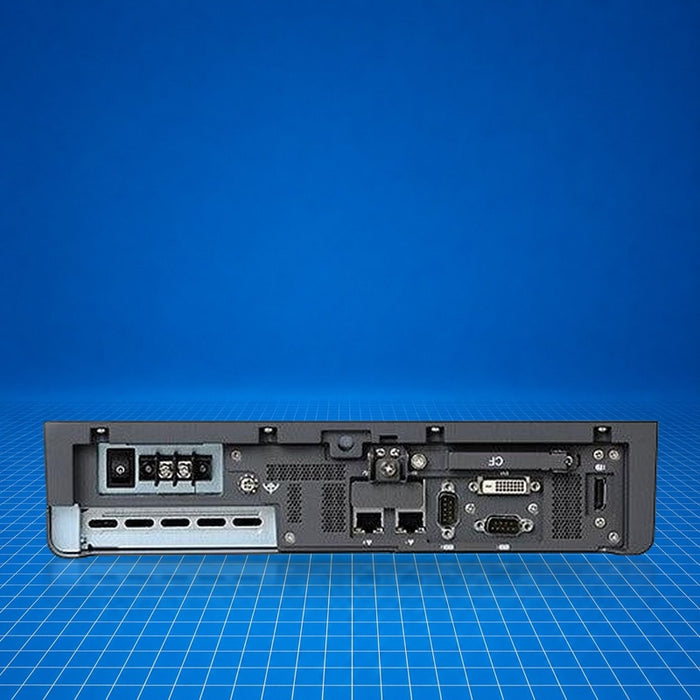

Product image is representative; revision or series may vary.
Contact us to request a specific version.

6181X-12A2SWX1DC Allen-Bradley

$0.00 - $4,759.98
$4,759.98
$0.00 - $4,759.98
$4,759.98
Surplus - Tested (With Warranty)
Need a Specific Revision?
$4,759.98
3 in stock
New / Open-Box Surplus
Get Pricing ~5 mins
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (3) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Allen-Bradley 6181X-12A2SWX1DC is part of the 6181X Series H Integrated Display Industrial Computers for hazardous locations. It combines an industrial compute module with an integrated 12.1-inch resistive touch display. Built around an Intel i3-5010U processor and equipped with DDR3 memory and solid-state storage, it serves as a panel-mount operator interface and compute edge node in industrial control systems operating in Zone 2/Class I Div 2 areas. Typical applications include machine-level HMI/data logging, hazardous-area control stations and operator interface panels.

Best Suited For

  • Operator interface in Zone 2 / Class I Division 2 hazardous areas
  • Panel-mounted HMI with integrated computing
  • Edge data logging and control on machines
  • Replacement upgrade in 6181X H series systems
Display size
12.1 in.
Resolution
1024 × 768, 16.2 M colors
Processor
Intel i3-5010U, 2.1 GHz
Input voltage
18-32 V DC
Power consumption (with display)
50 W

Technical Specifications

I/O & Electrical

Input voltage
18…32 V DC
Power consumption, max (with display)
50 W
Heat dissipation (with display)
50 W (171 BTU/h)

Communication & Power

Serial COM ports
2 × RS-232
USB ports
4 × USB 3.0
Ethernet LAN
2 × 1 Gb RJ-45
Video outputs
1 × DVI-D, 1 × DisplayPort

Physical & Environmental

Display type
12.1 in. active-matrix TFT resistive, sunlight-readable
Luminance
700 cd/m²
Contrast ratio
800:1 (typical)
Backlight lifetime
100 000 h (LED)
Memory
8 GB DDR3 SO-DIMM (2×4 GB)
Storage
128 GB MLC SSD; CompactFlash Type II slot, hot-swappable
Expansion slot
1 half-length PCIe
Weight
9 kg (19.8 lb)
Mounting option
Panel mount

Certifications

ATEX Zone 2IECExINMETROCERoHS

Certified for Zone 2 / Class I Division 2 hazardous locations; ATEX, IECEx, INMETRO ratings as per integrated display models; EU Declaration of Conformity includes ATEX, EMC, RoHS directives.
