6186M-12PT Allen-Bradley
Original price
$2,253.98
-
Original price
$3,436.20
Original price
$2,253.98
$2,253.98
-
$3,436.20
Current price
$2,253.98
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

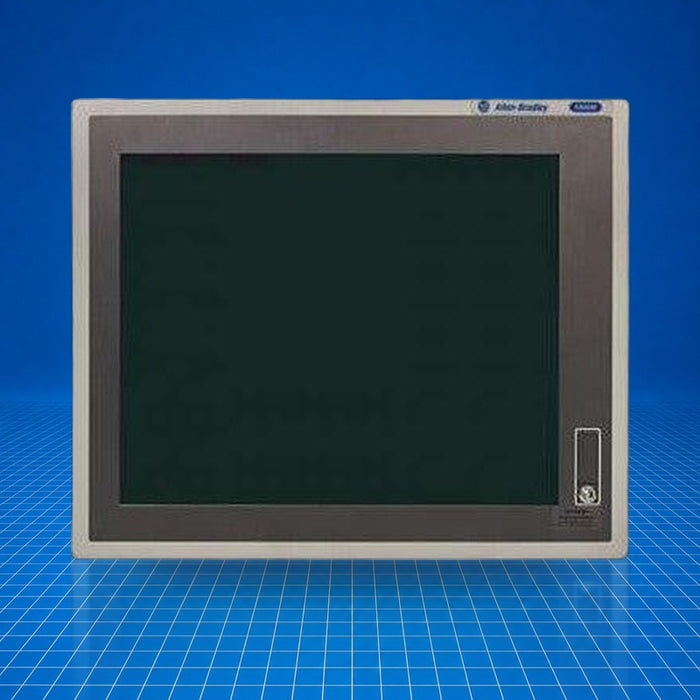

The 6186M-12PT is an Allen-Bradley Industrial Performance Monitor (VersaView 6186M series) featuring a 12.1-inch color active-matrix TFT LCD with resistive touchscreen input. It functions as a visualization interface within control systems, providing display, touch control, and interface capabilities (VGA/DVI) for industrial applications such as machine monitoring, operator panels, and control station integration. The 6186M-12PT supports both AC (100-240 V) and DC (9-36 V) input power and is built for use in environments requiring rugged, panel-mounted display solutions.
Best Suited For
- Operator interface in industrial control cabinets
- Machine human-machine interface panels
- Replacement for obsolete 12-inch industrial monitors
- Panel or bench mounting in harsh environments
Display Type
Color active-matrix TFT LCD
Display Size
12.1 in.
Input Power
100-240 V AC or 9-36 V DC
Touchscreen
Resistive touchscreen
Weight
5.38 lbs (2.44 kg)
Technical Specifications
I/O & Electrical
Input voltage
100-240 V AC or 9-36 V DC
Power consumption, max
34 W
Communication & Power
Video inputs
VGA (HD-15) and DVI
USB ports
USB 2.0 - 1 front (aluminum bezel only), 2 rear; 500 mA per port
Physical & Environmental
Display resolution
800 × 600 (262 K colors)
Display area
246 × 185 mm (9.7 × 7.3 in.)
Backlight life
50 000 hours to half-life
Bezel material
Aluminum
Mounting options
Panel, Bench/Tabletop, Rack, DIN Rail (power adapter)
Weight
5.38 lbs (2.44 kg)
