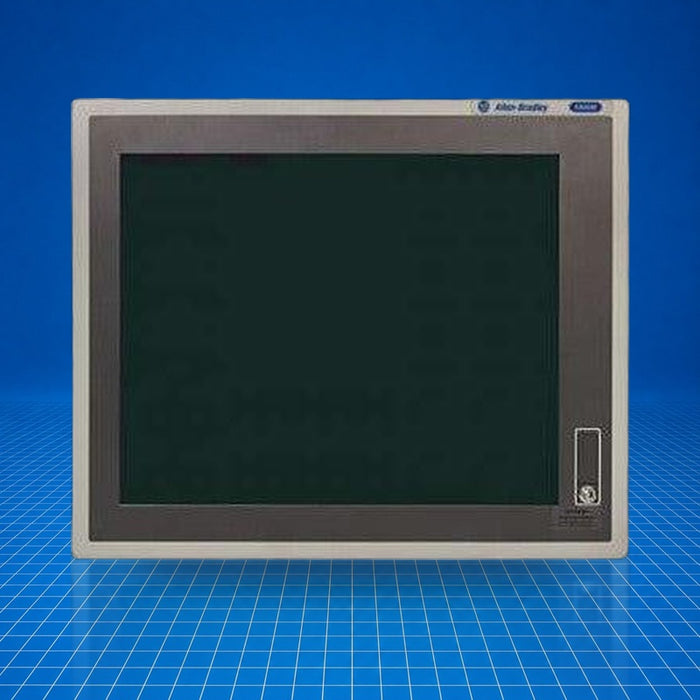

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6186M-19PTSS Allen-Bradley
Original price
$0.00
-
Original price
$3,154.78
Original price
$3,154.78
$0.00
-
$3,154.78
Current price
$3,154.78
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 6186M-19PTSS is a 19-inch Industrial Performance Monitor, part of the 6186M Performance Monitor family. It functions as a rugged human-machine interface panel in control systems, delivering color active-matrix TFT LCD display for operator visualization. The stainless-steel-bezel variant (-19PTSS) suits hygienic or wash-down environments. It typically interfaces with PCs or industrial controllers via VGA/DVI signals. 6186M-19PTSS supports industrial automation visualization tasks such as machine status display, operator control panels, and supervisory interfaces.
Best Suited For
- Panel-mounted operator interface in wash-down environments
- Machine-mounted HMI in food & beverage or pharmaceutical enclosures
- Upgrade of existing VersaView or industrial PC displays
- Enclosures requiring IP66/NEMA 4X stainless-steel front
- Integration with Allen-Bradley control systems
Display Size
19 in.
Resolution
1280 × 1024
Input power (AC/DC)
100-240 V AC or 9-36 V DC
Backlight life
50 000 hours to half-life
Weight (SS bezel)
11.9 kg (26.25 lb)
Technical Specifications
I/O & Electrical
Input voltage (AC)
100-240 V AC 47-63 Hz
Input voltage (DC)
9-36 V DC
Power consumption, max
57 W
Communication & Power
Video inputs
VGA (analog) and DVI-I (analog/digital)
USB ports
Front lockable Type A plus two rear USB (500 mA per port)
Physical & Environmental
Display type
Color active-matrix TFT LCD
Display area (W × H)
377 × 301 mm (14.8 × 11.9 in.)
Resolution
1280 × 1024, 16.7 M colors
Luminance (typical)
300 cd/m² (Nits)
Contrast ratio (typical)
1300:1
Response time (typical)
< 35 ms
Backlight life
50 000 hours to half-life at 25 °C
Dimensions (H × W × D)
399 × 483 × 64 mm (15.7 × 19.0 × 2.52 in.)
Weight (SS bezel)
11.9 kg (26.25 lb)
Operating temperature
0…50 °C (32…122 °F)
Shock (operating)
20 g, 11 ms ½-sine
Vibration (operating)
2 g peak, 10…640 Hz
Enclosure rating
NEMA 1, 4, 4X, 12; IEC IP66
Certifications
UL ListedcUL ListedCEISA 12.12.01CSA Hazardous LocationsC-TickRoHS
