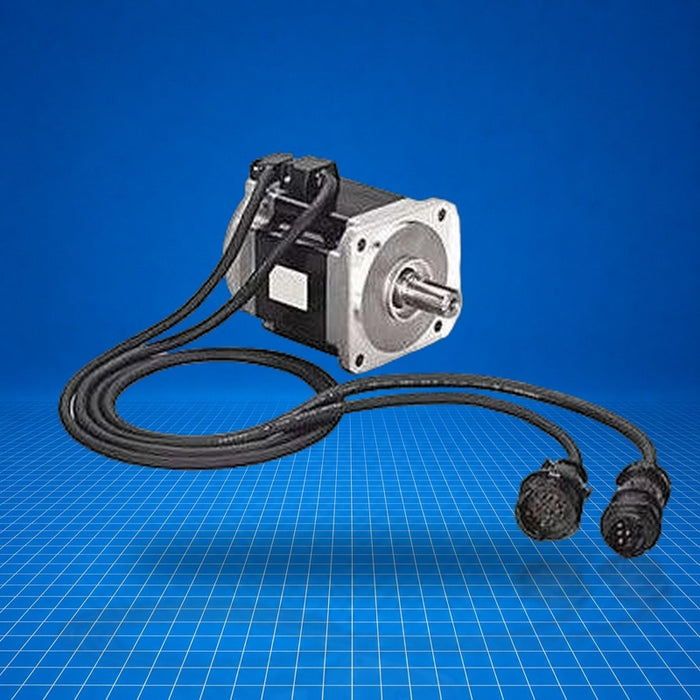

Product image is representative; revision or series may vary.
Contact us to request a specific version.

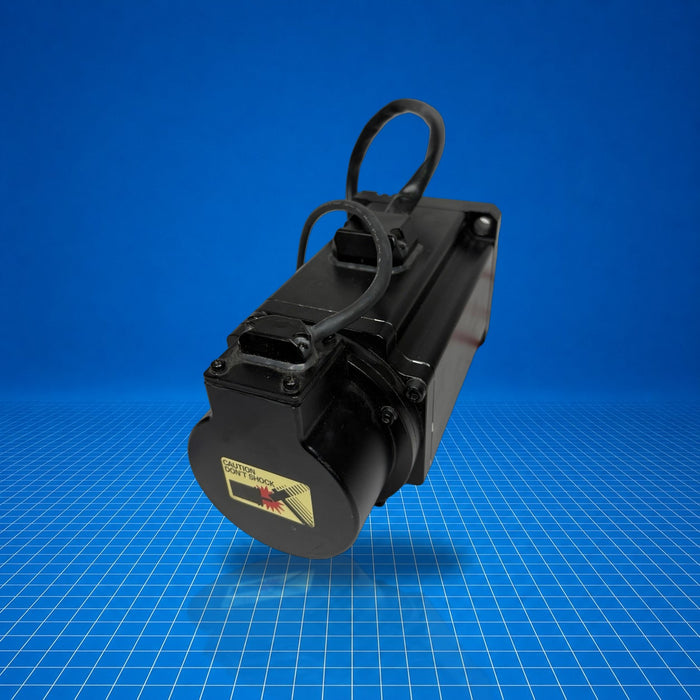

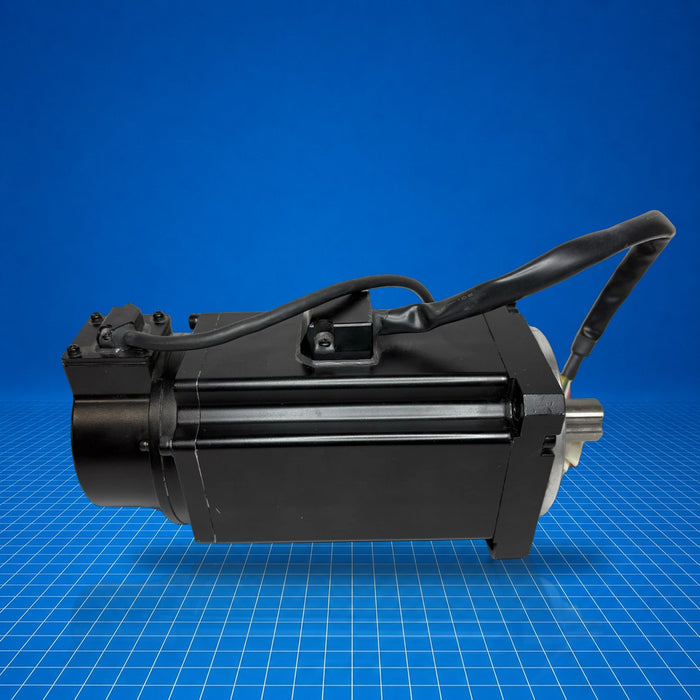

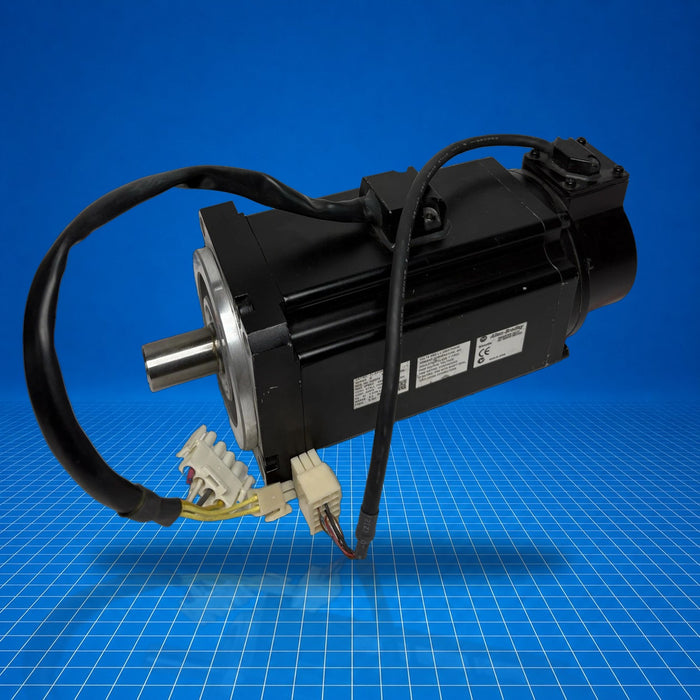

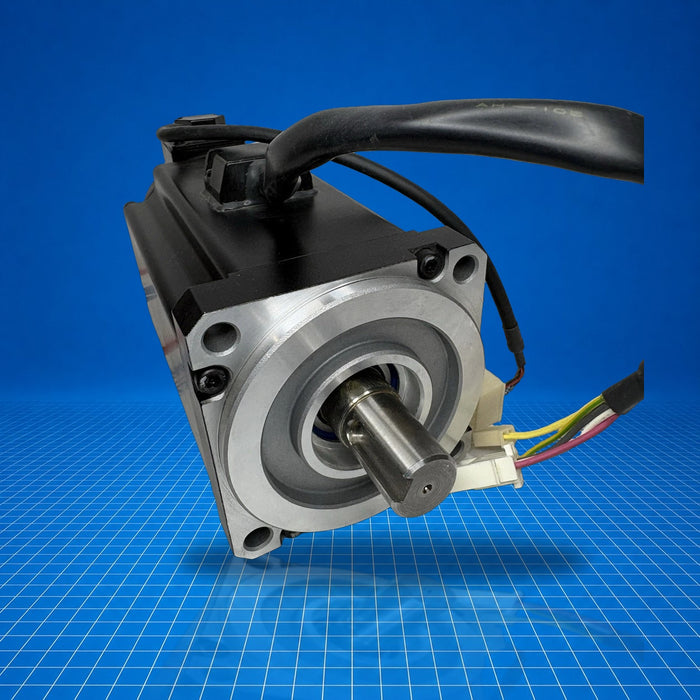

TL-A410M-BJ34AA Allen-Bradley

Name: TL-A410M-BJ34AA Allen-Bradley
Brand: Allen Bradley
Price: 5098.3 USD
Availability: InStock

$0.00 - $5,098.30

$5,098.30

$0.00 - $5,098.30

$5,098.30

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The TL-A410M-BJ34AA is an Allen-Bradley Kinetix TL Compact series rotary servo motor. It is a 230 VAC, single-stack, permanent-magnet, totally enclosed, three-phase wye motor with an integrated absolute battery-backed multi-turn encoder and 24 V DC holding brake. It provides precise position feedback for motion control systems when paired with Allen-Bradley drives. Typical applications include machine tooling, packaging machinery, and robotic positioning where controlled torque, speed, and feedback are required. Part number TL-A410M-BJ34AA is active mature.

Best Suited For

Integration with Kinetix 5300 or 5100 servo drives
On-machine servo positioning with position feedback
Applications requiring holding brake for load retention
High-speed motion up to 4500 rpm

Rated speed

4500 rpm

Continuous stall torque

4.86 Nm (43 lb-in)

Peak stall torque

13 Nm (115 lb-in)

Brake voltage

21.6-26.4 V DC

Enclosure rating

IP65 (with optional shaft seal)

Technical Specifications

I/O & Electrical

Operating voltage

230 VAC RMS reference (not for direct AC line)

Continuous stall current

14.0 A 0-pk max

Peak stall current

43.4 A 0-pk max

Brake coil voltage

21.6 to 26.4 V DC

Brake coil current

0.648 to 0.792 A DC

Winding resistance (motor)

0.711 to 0.869 Ω phase-to-phase

Winding inductance

3.1 mH phase-to-phase

Communication & Power

Brake holding torque

9.3 Nm (82 lb-in) max

Rotor inertia

0.00041 kg·m² (0.0036 lb-in·s²)

Ke (back-EMF constant)

47 V/kRPM nom

Kt (torque constant)

0.388 Nm/Amp 0-pk

Rotor balancing

Quality grade G-6.3

Physical & Environmental

Operating ambient temperature

0 °C to 40 °C (32 °F to 104 °F)

Storage temperature

-10 °C to 85 °C (14 °F to 185 °F)

Relative humidity

20% to 85% non-condensing

Shock rating

20 g peak, 6 ms

Vibration rating

2.5 g peak, 30-2000 Hz

Product weight

6.8 kg (15 lb)

Shipping weight

7.7 kg (17 lb)

Certifications

EACKCRCM

Certified for Eurasian Economic Community, Korean KC, Australian RCM as of product label date.
