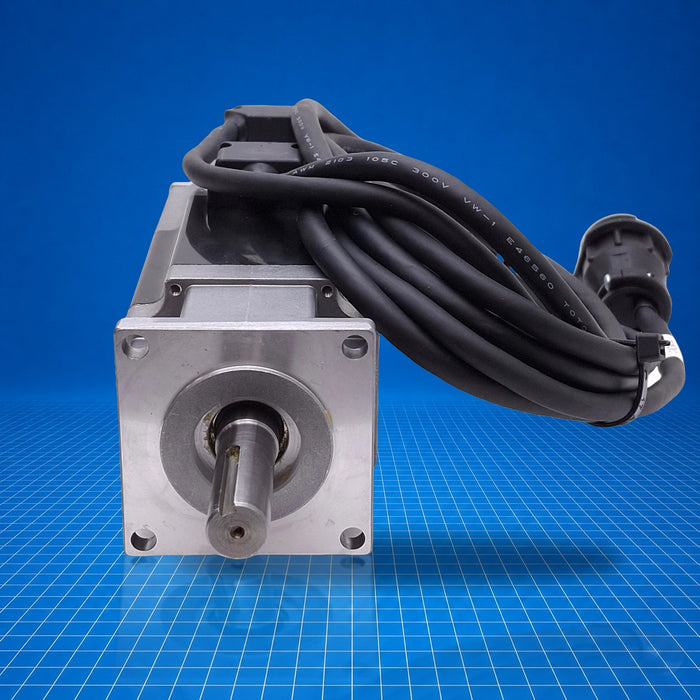

TLY-A230T-HJ64AN Allen-Bradley
Original price
$0.00
-
Original price
$2,700.00
Original price
$2,700.00
$0.00
-
$2,700.00
Current price
$2,700.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

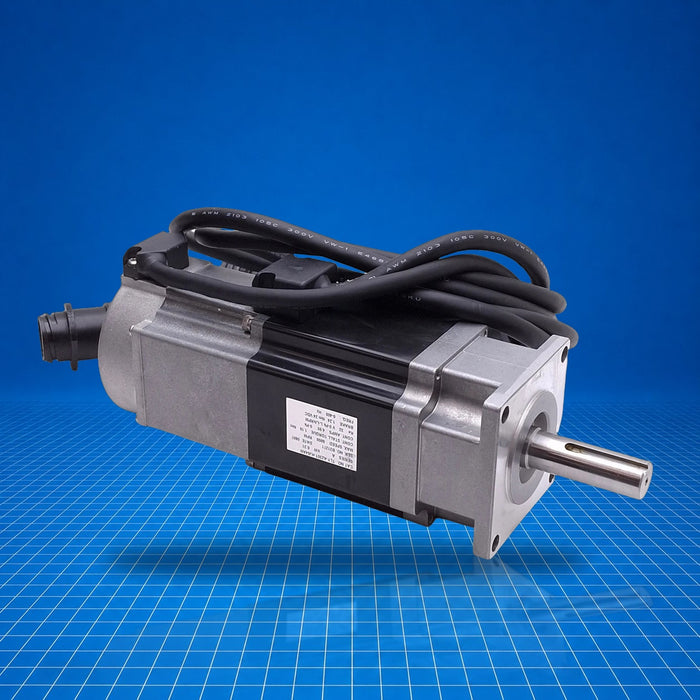

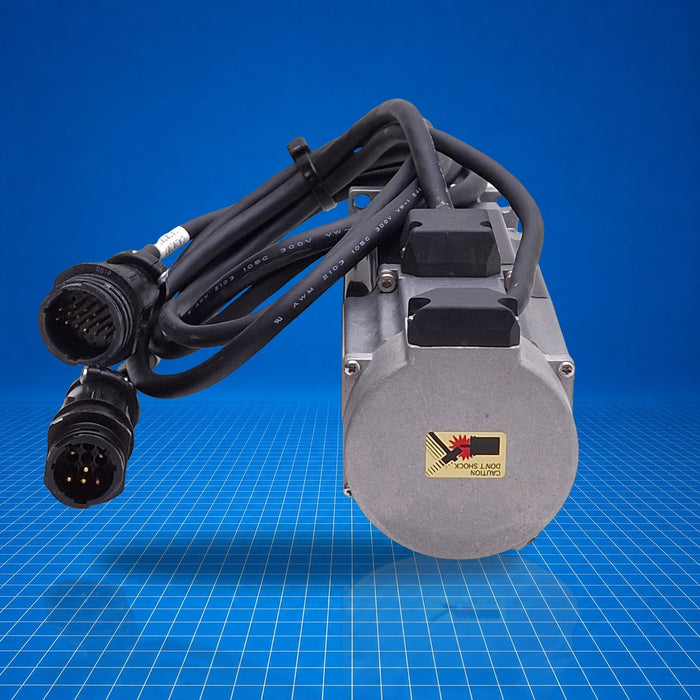

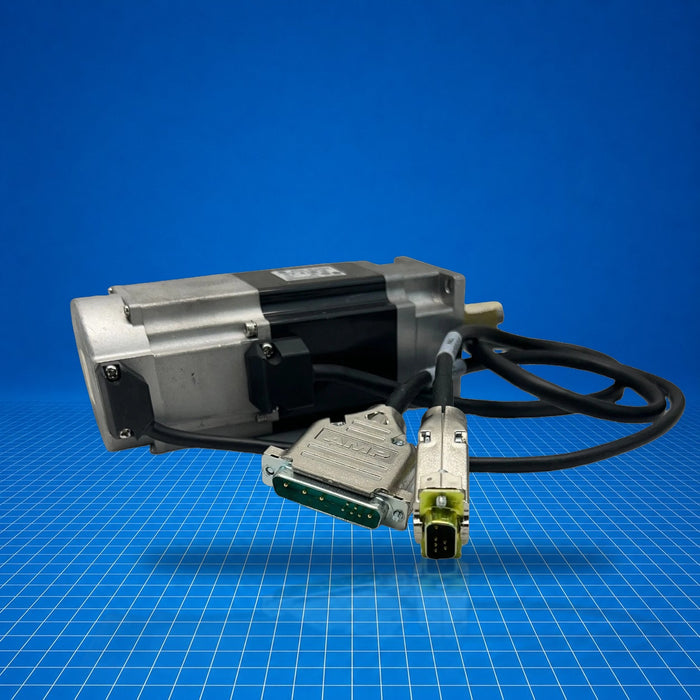

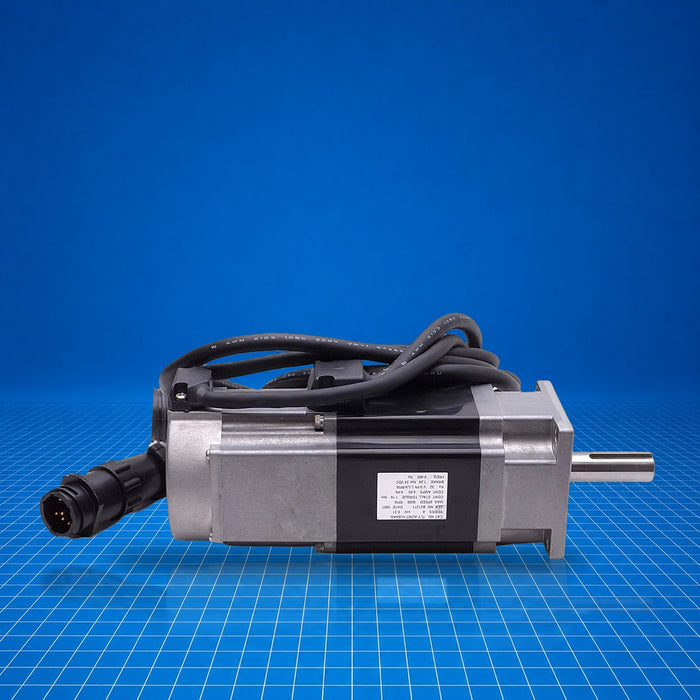

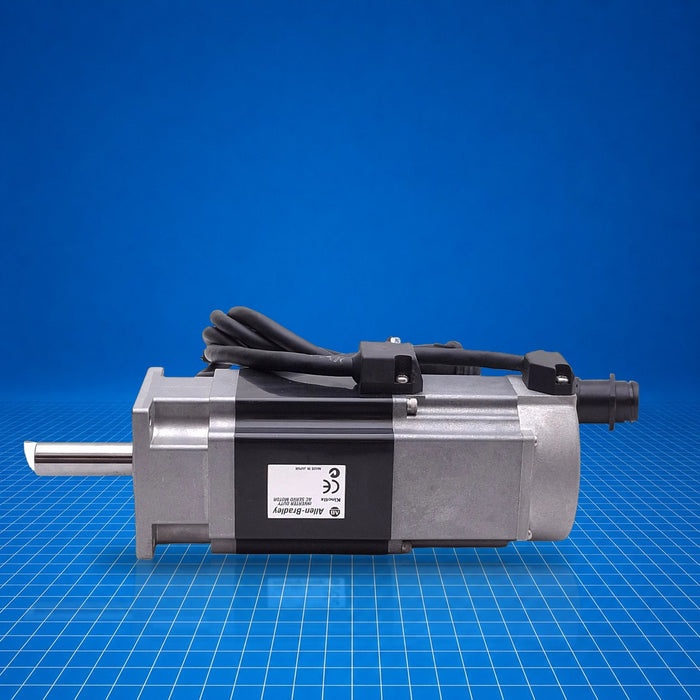

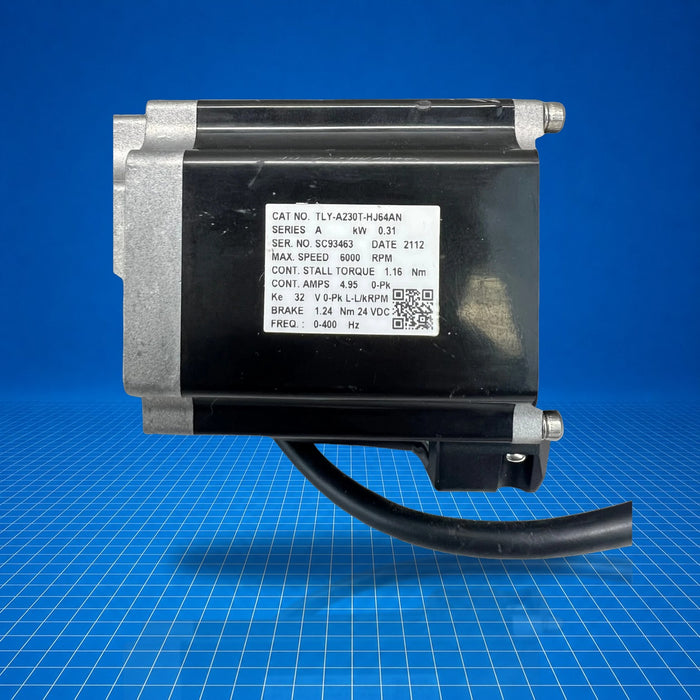

TLY-A230T-HJ64AN is a TL-Series low-inertia 230 V AC rotary servo motor with a 70 mm (NEMA 23) frame, incremental encoder feedback and an integral 24 V DC holding brake. It functions as a precision motion actuator in coordinated servo systems, typically used in compact machine tools, robotics, packaging equipment, and automated assembly systems.
Best Suited For
- Low-inertia motion control applications
- Compact robotics and pick-and-place systems
- Packaging machinery requiring precise positioning
- Automated assembly and specialty industrial machinery
Voltage
230 V AC
Rated speed
6000 rpm
Feedback
2000 lines/rev, incremental encoder
Enclosure rating
IP 65
Technical Specifications
I/O & Electrical
Voltage
230 V AC
Brake voltage
24 V DC
Communication & Power
Feedback type
Incremental encoder, 2000 lines/rev
Connectors
Circular connectors, 1 m cable
Physical & Environmental
Frame size
70 mm (NEMA 23)
Rated speed
6000 rpm
Magnet stack length
30 mm (approx. 3 in.)
Enclosure
IP 65
Weight
5.63 lb (2.55 kg)
Operating temperature
0 to 40 °C
Relative humidity
20-85 % non-condensing
Certifications
EACKCRCM
Certified Eurasian Economic Community, Korean KC, Australian RCM (as of May 20 2026)
