TLY-A2540P-HJ62AA Allen-Bradley
Original price
$1,375.00
-
Original price
$2,327.50
Original price
$1,375.00
$1,375.00
-
$2,327.50
Current price
$1,375.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

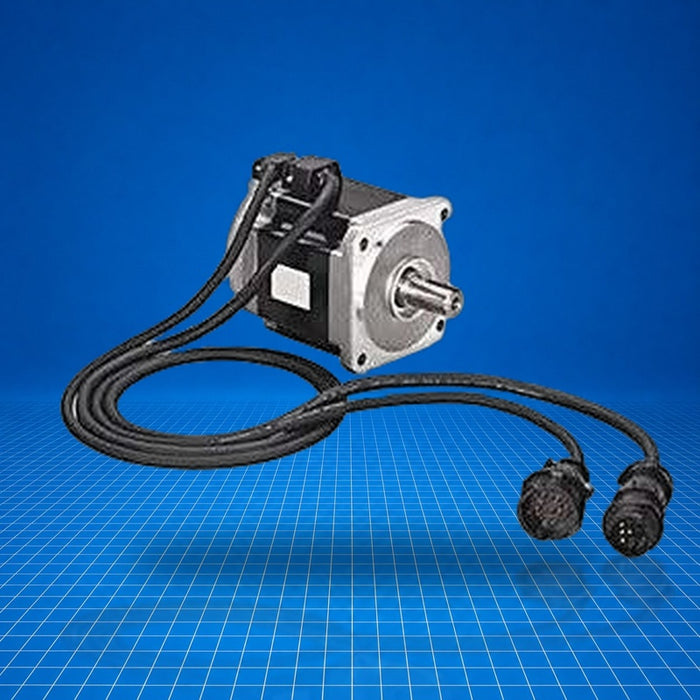

The TLY-A2540P-HJ62AA is a TL-Series compact rotary servo motor, part of Rockwell Automation's Kinetix TLY family. It is a 230 V AC, frame size 90 mm (NEMA 34), 5000 rpm rated, low-inertia motor equipped with a 2000-line incremental encoder. The IP65 housing and shaft key make it suitable for industrial servo control applications such as machine tool positioning, packaging line motion, and automated assembly systems. TLY-A2540P-HJ62AA mounts to standard metric flanges and integrates with Kinetix drives.
Best Suited For
- Precision positioning in automated assembly
- High-speed pick-and-place machinery
- Compact servo applications using Kinetix drives
- Machine tool motion control
Voltage
230 V AC
Rated speed
5000 rpm
Encoder
Incremental, 2000 lines/rev
Frame size
90 mm (NEMA 34)
Enclosure/IP rating
IP65
Technical Specifications
I/O & Electrical
Armature voltage
230 V AC
Rated speed
5000 rpm
Magnet stack length
Four-stack
Communication & Power
Feedback
Incremental encoder, 2000 lines/rev
Connectors
Circular connectors, 1 m cables
Physical & Environmental
Frame size
90 mm (3.54 in) NEMA 34
Mounting
90 mm metric flange bolt circle
Enclosure rating
IP65
Weight (approx)
3.5 kg (7.7 lb) - incremental feedback option
Certifications
Korean KC
Certified for Korean KC. Other regional certifications may apply; refer to product label.
