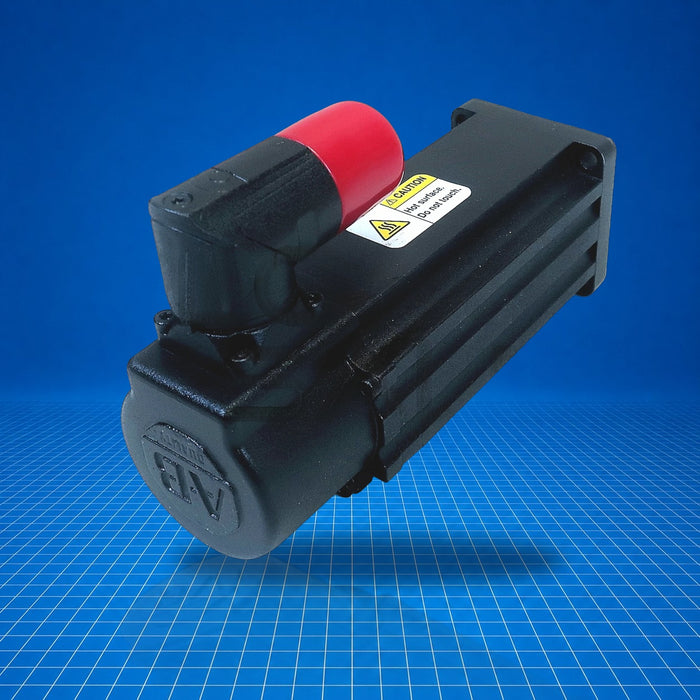

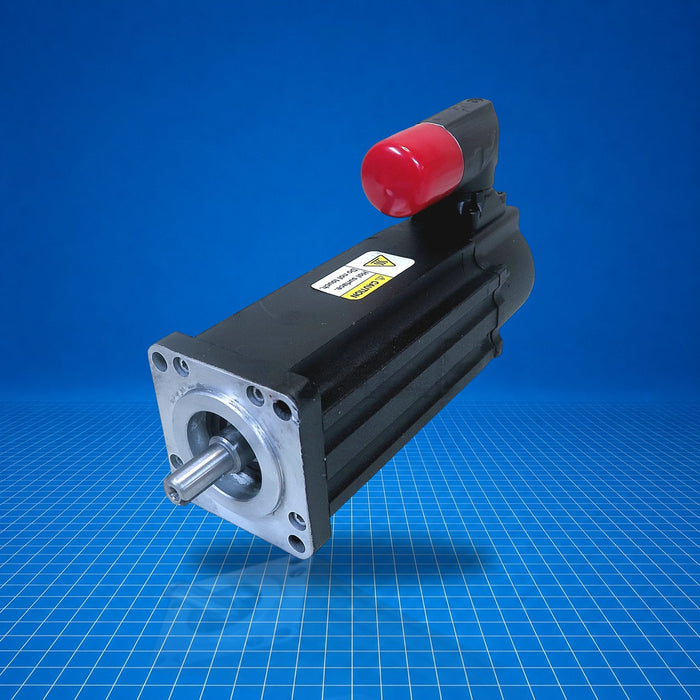

VPL-A0631M-PJ14AA Allen-Bradley
Original price
$500.00
-
Original price
$2,388.75
Original price
$500.00
$500.00
-
$2,388.75
Current price
$500.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The VPL-A0631M-PJ14AA is an Allen-Bradley Kinetix VP low-inertia servo motor (200 V class), 63 mm frame. It includes a single magnet stack, 18-bit single-turn plus 12-bit multi-turn digital encoder using Hiperface DSL, keyed shaft, single SpeedTec DIN connector, and 24 V DC holding brake. It is designed for precise motion control in machine automation systems, typically paired with Kinetix 5500 or 5700 servo drives, for applications requiring dynamic response and encoder feedback in packaging, indexing, or general motion systems.
Best Suited For
- Use with Kinetix 5500/5700 servo drives
- High-speed motion control in compact 63 mm frame systems
- Feedback-based position control using Hiperface DSL encoder
- Systems requiring integrated brake for holding load
Frame size
63 mm
Rated speed
7200 rpm
Feedback
18-bit single-turn + 12-bit multi-turn encoder
Brake
24 V DC holding brake
Technical Specifications
I/O & Electrical
System continuous stall current
1.92 A (0-pk)
System peak stall current
6.48 A (0-pk)
System continuous stall torque
0.46 N·m (4.0 lb·in)
System peak stall torque
1.33 N·m (12.0 lb·in)
Motor rated output
0.28 kW (0.38 Hp)
Communication & Power
Feedback type
18-bit single-turn + 12-bit multi-turn digital absolute (Hiperface DSL)
Power class
200 V-class (240 V AC)
Physical & Environmental
Magnet stacks
1
Shaft style
Keyed shaft
Connector
Single SpeedTec DIN
Mounting
IEC metric mounting flange
