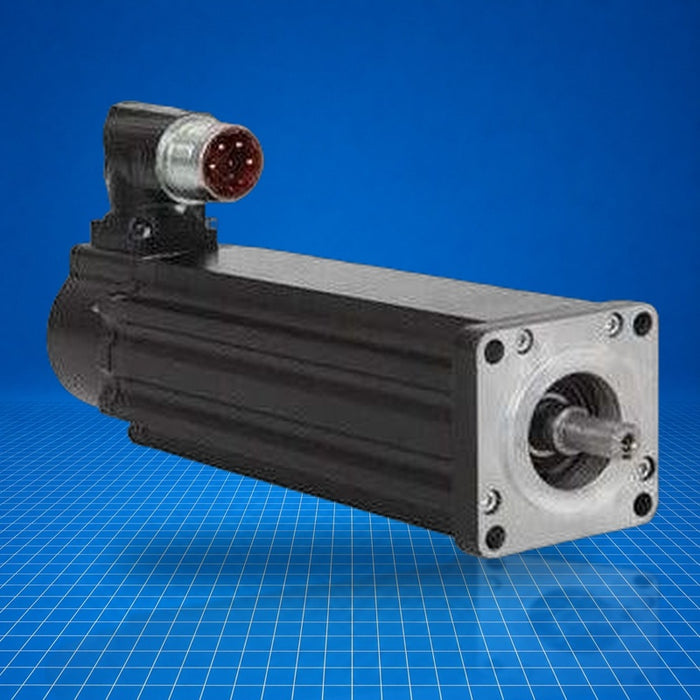

VPL-B1153F-PJ14AS Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

VPL-B1153F-PJ14AS Allen-Bradley

$3,600.00 - $4,278.23
$3,600.00
$3,600.00 - $4,278.23
$3,600.00
Surplus - Tested (With Warranty)
Need a Specific Revision?
$3,600.00
5 in stock
New / Open-Box Surplus
Need a Specific Revision?
$4,278.23
2 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (5) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The VPL-B1153F-PJ14AS is an Allen-Bradley (Rockwell Automation) Kinetix VP low-inertia distributed servo motor in the 400 V class. The "B1153" indicates a 115 mm bolt-circle frame with three magnet stacks; "F" denotes the winding; "PJ14AS" includes a multi-turn absolute encoder (Hiperface DSL), 24 V DC holding brake, SpeedTec right-angle DIN connector, keyed shaft with IP66 shaft seal. This motor delivers precision feedback and compact integration for motion control in industrial automation systems.

Best Suited For

  • Integration with Kinetix 5500/5700 servo drives via EtherNet/IP
  • Applications requiring sealed shaft (IP66) in harsh environments
  • High-precision positioning using Hiperface DSL multi-turn feedback
  • On-machine mounting where compact, low-inertia motors are needed
  • Use in distributed ArmorKinetix drive systems with 24 A peak current
Frame size
115 mm
Rated speed
4500 RPM
Magnet stacks
3
Encoder
18-bit multi-turn, Hiperface DSL
Brake
24 V DC holding brake

Technical Specifications

I/O & Electrical

Input voltage class
400 V AC class
Magnet stacks
3

Communication & Power

Feedback type
18-bit multi-turn, Hiperface DSL
Connector
SpeedTec right-angle DIN
Holding brake voltage
24 V DC

Physical & Environmental

Frame size
115 mm bolt-circle
Shaft style
Keyed shaft extension
Shaft seal
IP66 shaft seal fitted
Mounting flange
IEC metric
Peak current (ArmorKinetix)
24 A peak (distributed servo motor)
