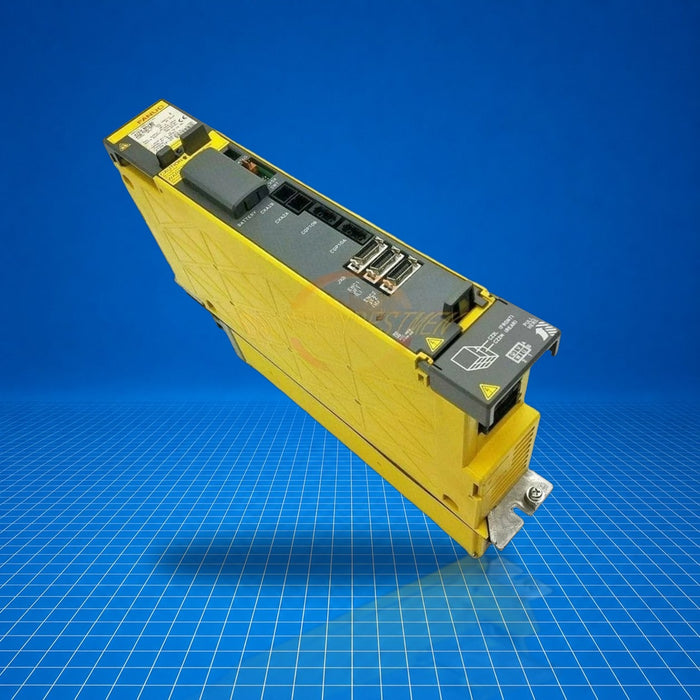

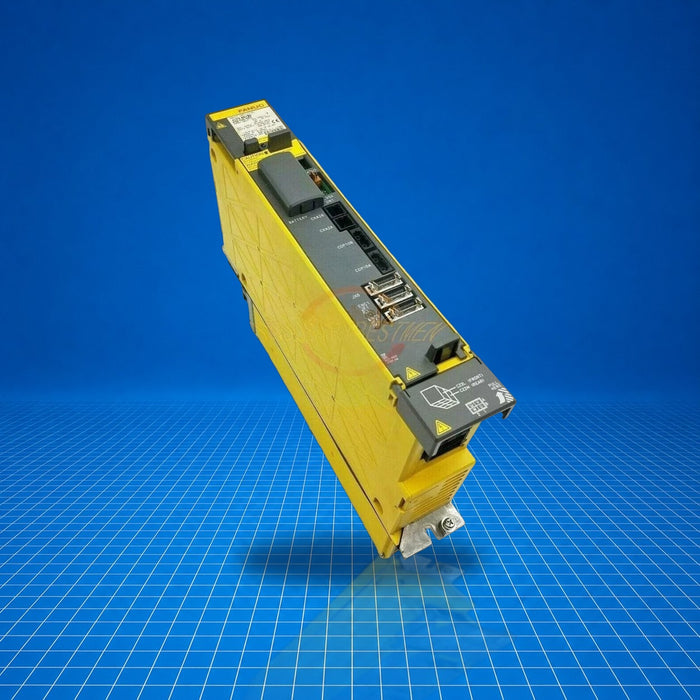

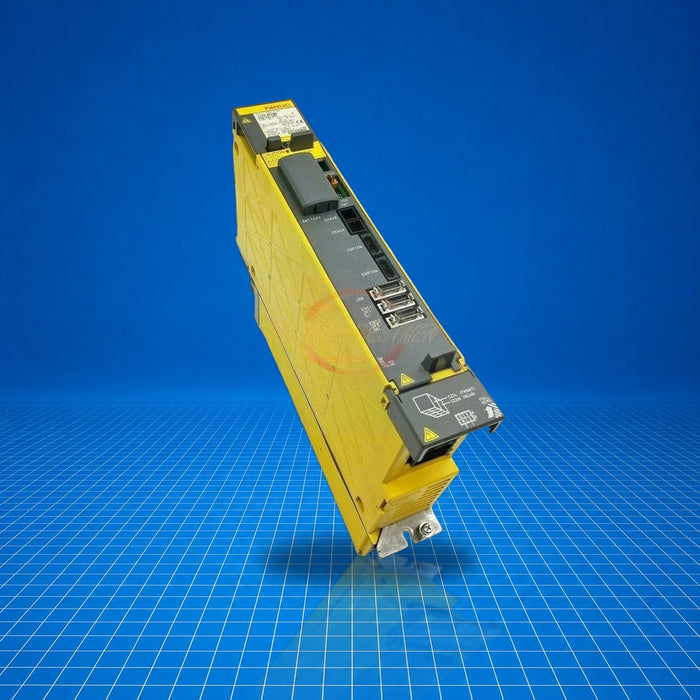

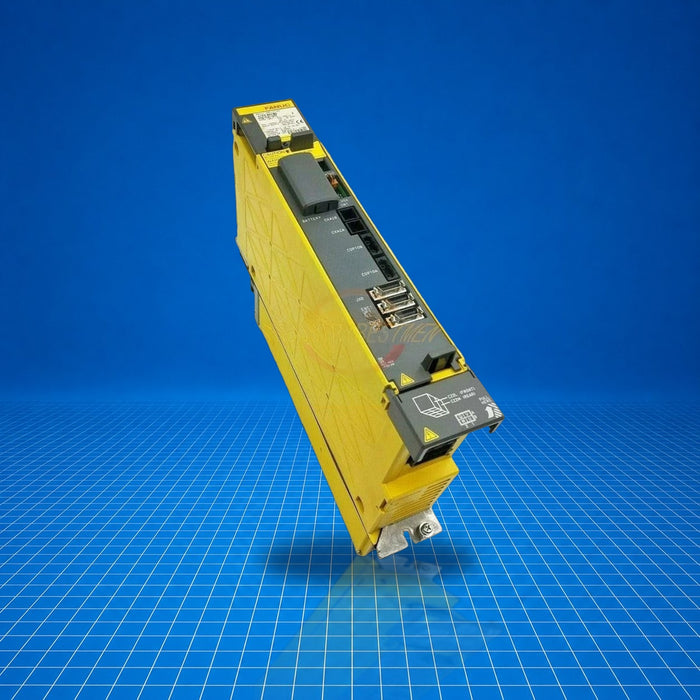

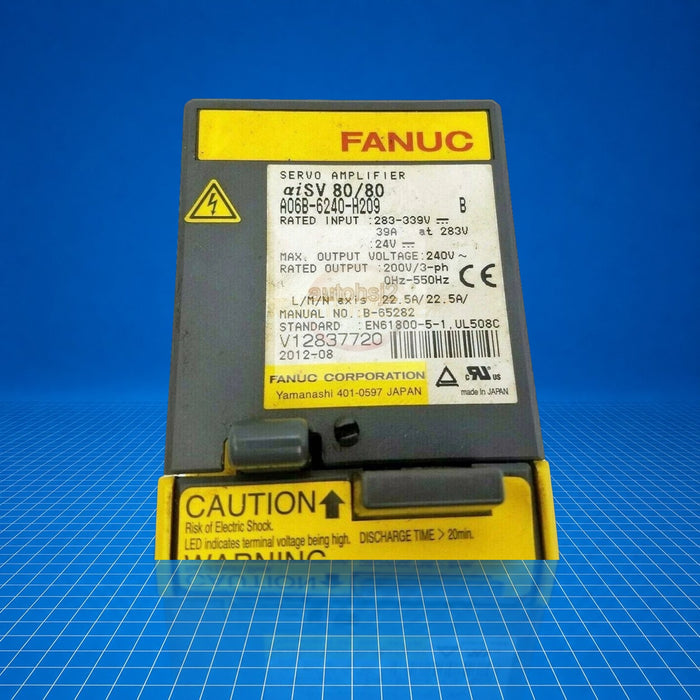

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
A06B-6240-H209 GE Fanuc
Original price
$3,222.00
-
Original price
$3,238.20
Original price
$3,222.00
$3,222.00
-
$3,238.20
Current price
$3,222.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The A06B-6240-H209 is a three-phase servo amplifier module in FANUC's A06B series. It converts DC input to AC output to drive servo motors, providing independent output currents for L-axis and M-axis. It is typically used in CNC or robotic motion control systems requiring precise servo amplification. The module accepts high-voltage DC and outputs controlled AC across a range of frequencies, fitting into servo drive racks of automated machinery. A06B-6240-H209 is designed for industrial control cabinets and power distribution setups.
Best Suited For
- Dual-axis servo drive systems (L-axis and M-axis)
- CNC servo motor control applications
- Robotic motion control requiring 200-240 VAC outputs
- Environments with 283-339 VDC supply available
Output voltage
200-240 VAC
Rated output current
22.5 A (L-axis), 22.5 A (M-axis)
Input voltage
283-339 VDC
Operating temperature range
0 °C to 55 °C
Technical Specifications
I/O & Electrical
Input voltage
283-339 VDC
Rated input current
39 A at 283 V
Input frequency
50/60 Hz
Output voltage
200-240 VAC
Output frequency range
0-550 Hz
Rated output current
22.5 A (L-axis), 22.5 A (M-axis)
Physical & Environmental
Ambient operating temperature
0 °C to 55 °C
Weight
15.00 lbs (6.80 kg)
