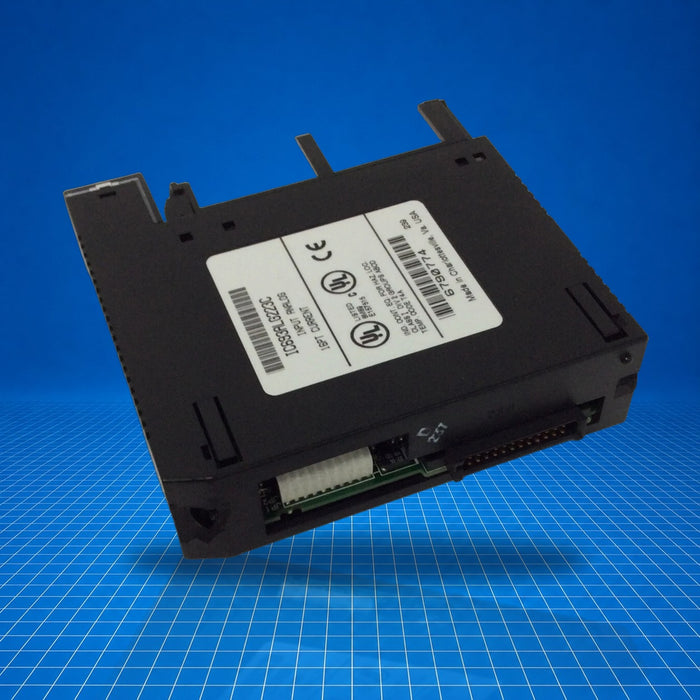

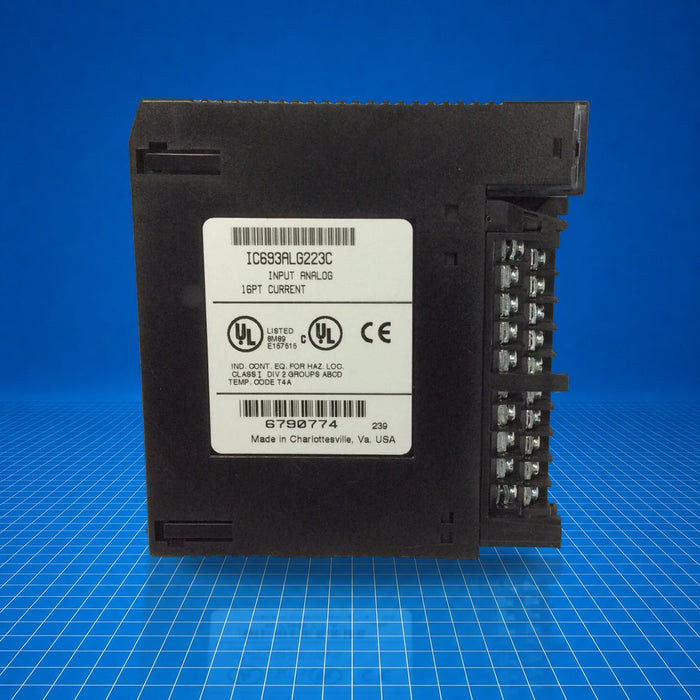

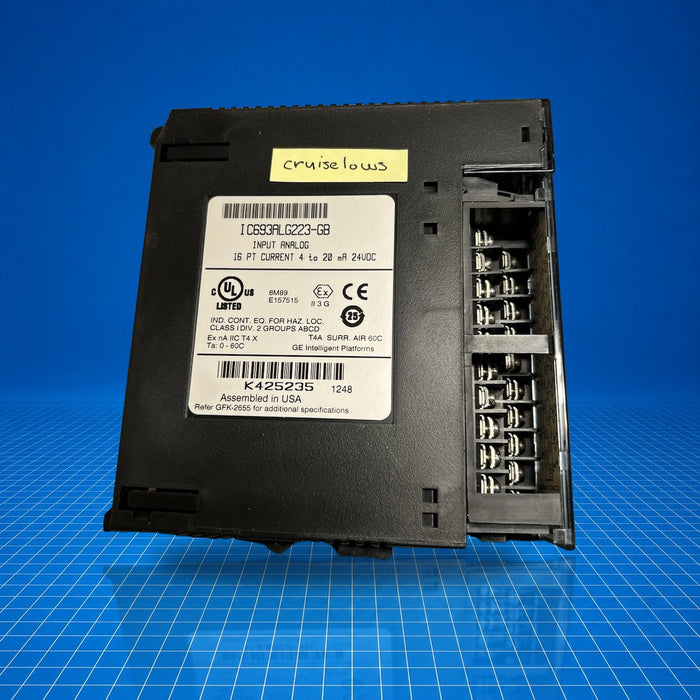

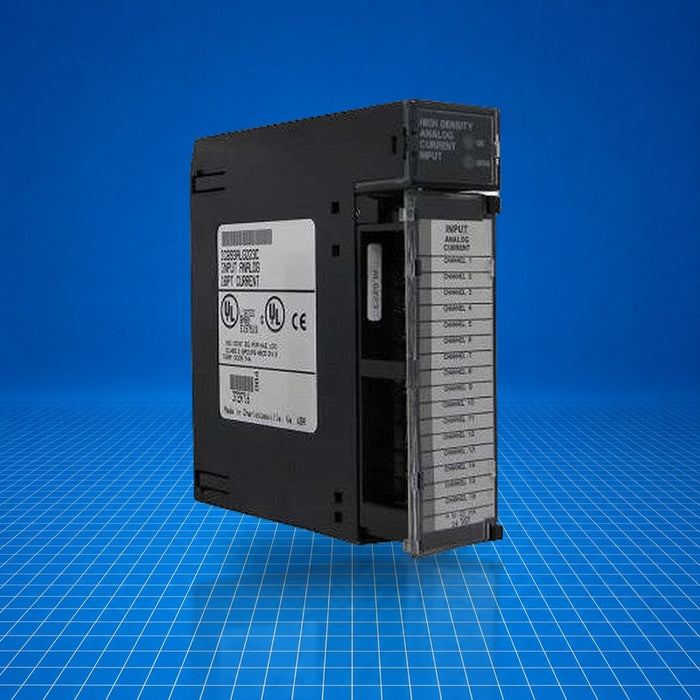

IC693ALG223 GE Fanuc
Original price
$330.00
-
Original price
$3,195.79
Original price
$330.00
$330.00
-
$3,195.79
Current price
$330.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The IC693ALG223 is a GE Fanuc Series 90-30 analog current input module designed to interface sixteen single-ended 0-20 mA or 4-20 mA (standard and enhanced) field signals to a PLC. It provides 12-bit resolution, channel update every 13 ms, and 1 500 V RMS isolation between field and logic. Installed in a single I/O slot on a 5- or 10-slot baseplate, it supports precise analog measurement for process monitoring tasks such as flow, level, temperature, and speed feedback. Typical in distributed I/O racks with CPUs up to the 300-series.
Best Suited For
- Multi-channel analog current signal acquisition
- Process variable monitoring (flow, level, temperature)
- Integration into Series 90-30 baseplates
- Applications requiring compact, single-slot module
Channels
16
Resolution
12-bit
Update rate
13 ms
Isolation
1500 V RMS
Input ranges
0-20 mA, 4-20 mA
Technical Specifications
I/O & Electrical
Number of channels
16 single-ended
Input ranges
0-20 mA; 4-20 mA (standard and enhanced)
Resolution at 4-20 mA
4 µA
Resolution at 0-20 mA
5 µA
Input impedance
250 Ω
Accuracy @ 25 °C
±0.25 % of full scale
Accuracy over temperature range
±0.5 % of full scale
Input filter response
200 Hz
Communication & Power
Update rate (all channels)
13 ms
Internal power consumption
120 mA at 5 V DC; 65 mA at 24 V DC (user supplied)
External supply range
20-30 V DC
Isolation
1500 V RMS field-to-logic
Physical & Environmental
Weight
1.06 lb (0.48 kg)
