IC693ALG223D GE Fanuc
Original price
$330.00
-
Original price
$1,108.11
Original price
$330.00
$330.00
-
$1,108.11
Current price
$330.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

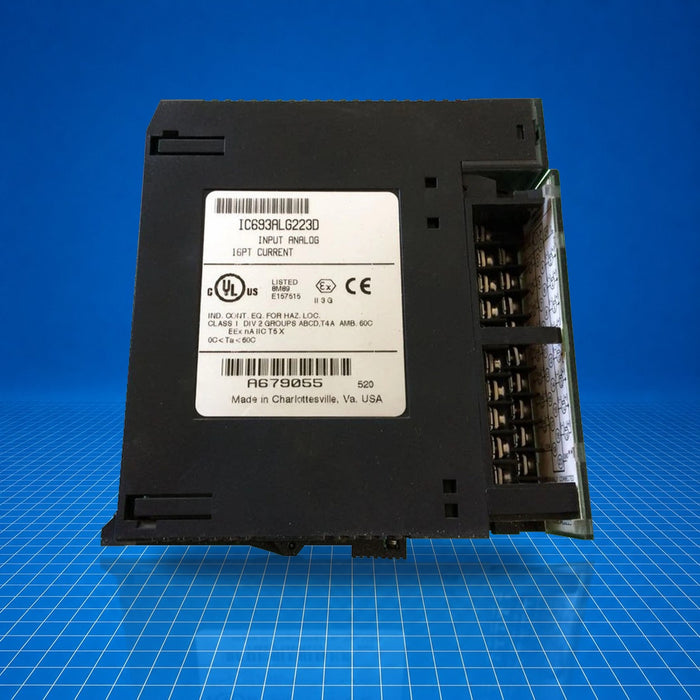

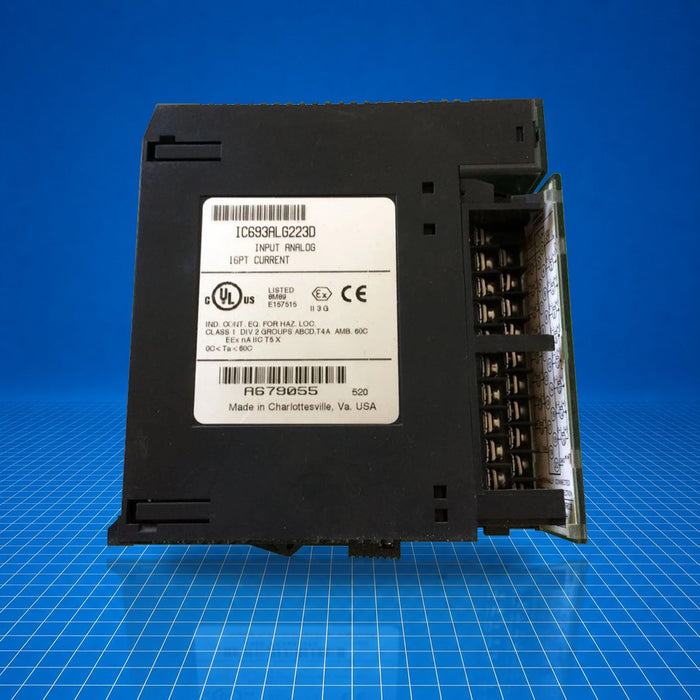

The IC693ALG223D is a GE Fanuc Series 90-30 analog current input module (Series D revision) used in industrial PLC systems. It provides sixteen single-ended input channels capable of reading 0-20 mA, 4-20 mA and enhanced 4-20 mA signals. Designed for installation in any slot of a 5- or 10-slot Series 90-30 baseplate, it interfaces field sensors such as transmitters or VFD feedback to the logic system using 12-bit resolution. Typical applications include process monitoring and instrumentation signal collection.
Best Suited For
- Process variable measurement (flow, level, temperature)
- Integration with Series 90-30 PLC systems
- High-density analog current input requirements
- Retrofit of existing Series 90-30 racks
- Systems requiring ±0.25 % accuracy at 25 °C
Channels
16
Signal ranges
0-20 mA, 4-20 mA, 4-20 mA enhanced
Resolution
12-bit (≈4 µA or 5 µA)
Update rate
13 ms (all channels)
Isolation
1500 V RMS field-to-logic
Technical Specifications
I/O & Electrical
Number of channels
16 single-ended inputs
Input signal ranges
0-20 mA; 4-20 mA; 4-20 mA enhanced
Input impedance
250 Ω
Resolution at 4-20 mA
4 µA
Resolution at 0-20 mA
5 µA
Accuracy
±0.25 % full scale @ 25 °C; ±0.5 % over operating range
Input filter response
200 Hz
Update rate
13 ms (all channels)
Isolation
1500 V RMS field-to-logic
Communication & Power
Power consumption (logic)
120 mA at 5 V DC
Power consumption (external)
65 mA from user-supplied 24 V DC (20-30 V DC)
External supply range
20-30 V DC, 10 % ripple allowed
Physical & Environmental
Weight
1.06 lbs (0.48 kg)
Installation
Single slot on Series 90-30 5- or 10-slot baseplate
