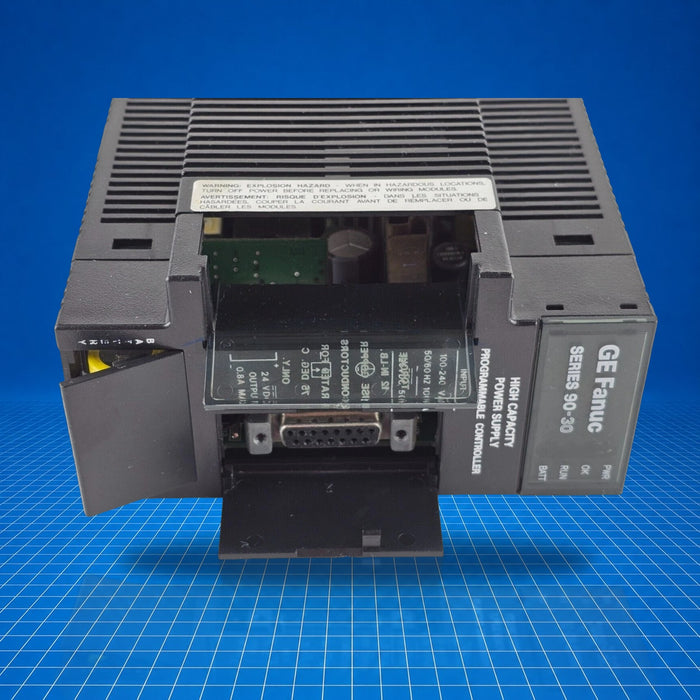

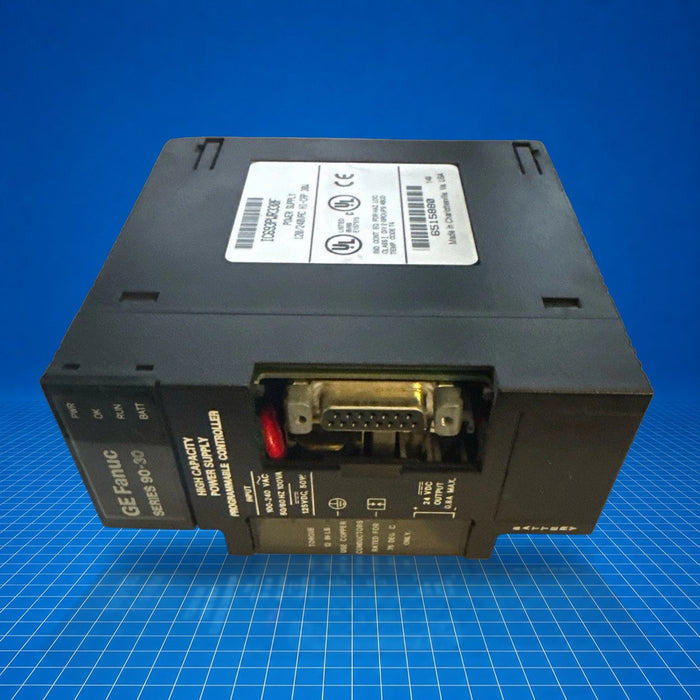

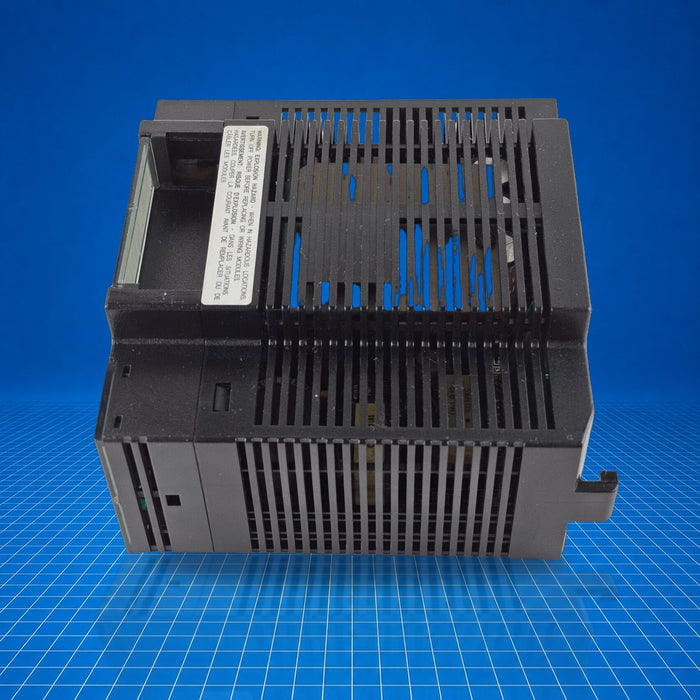

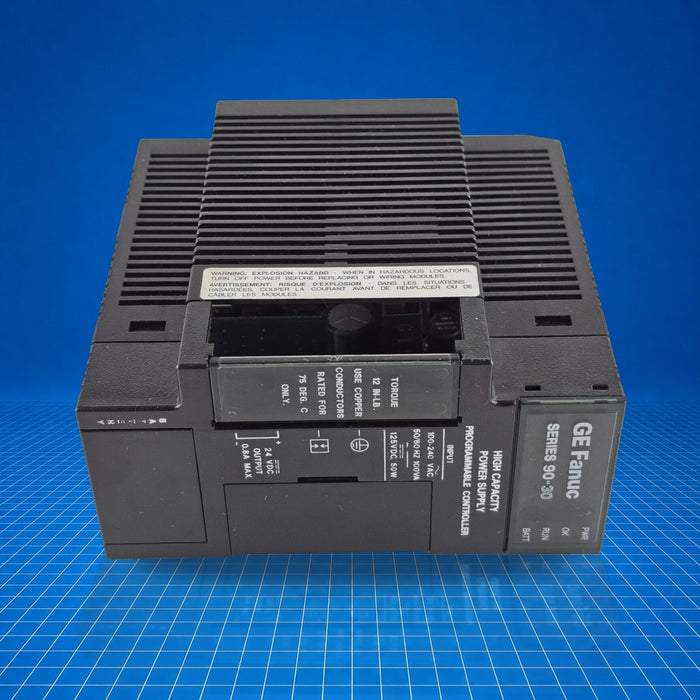

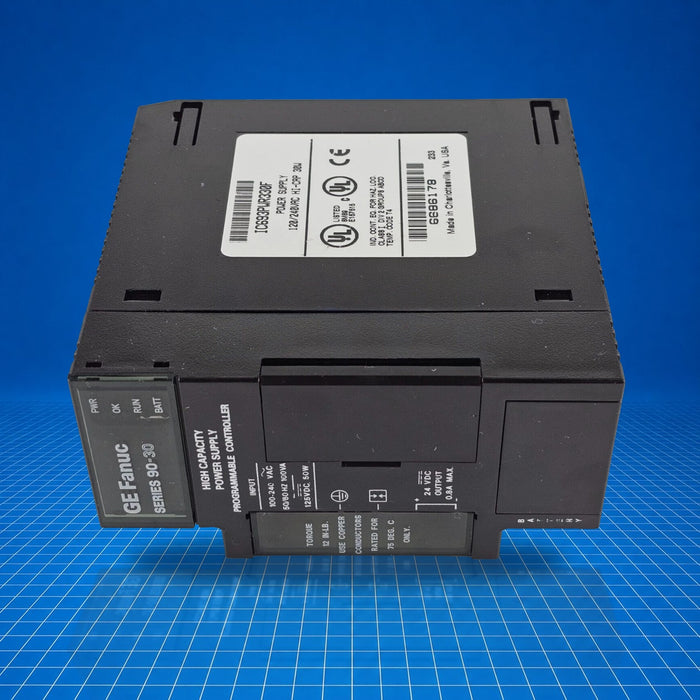

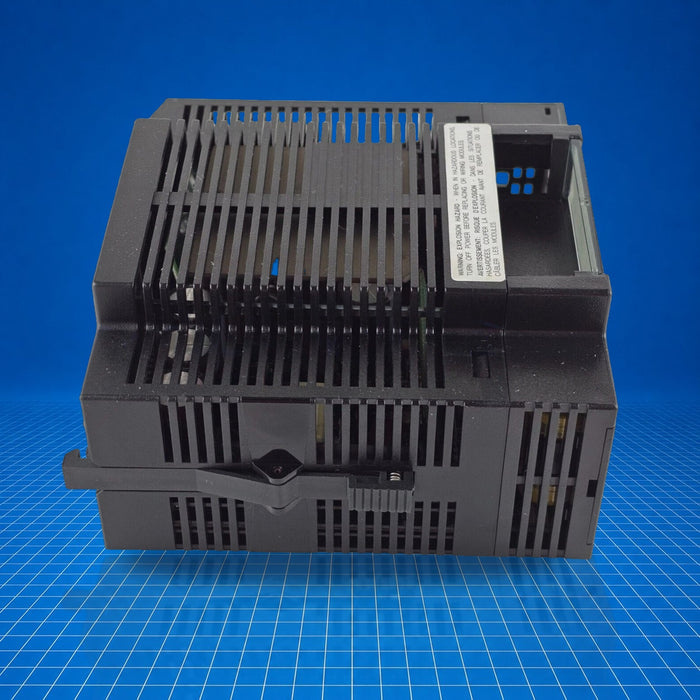

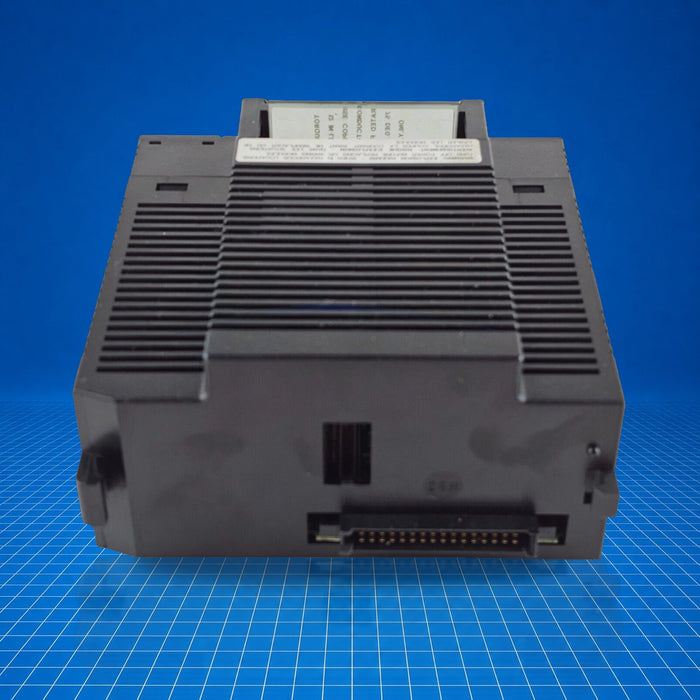

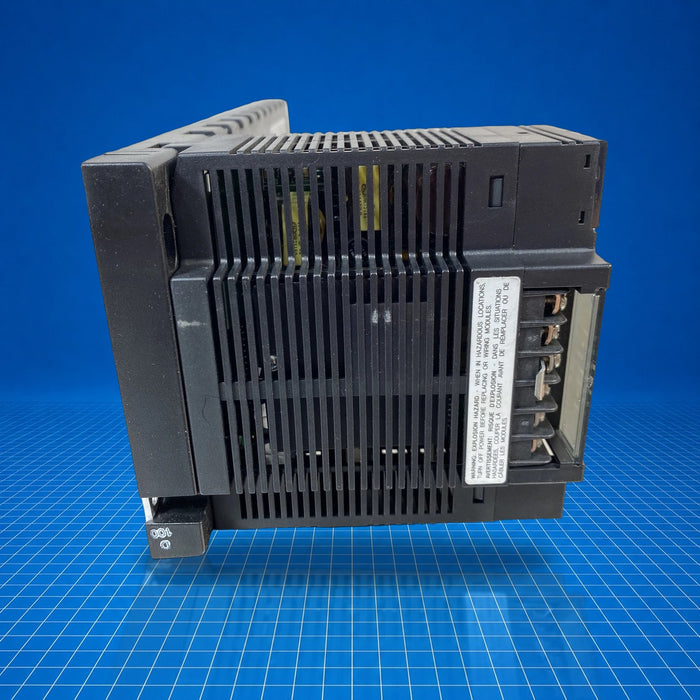

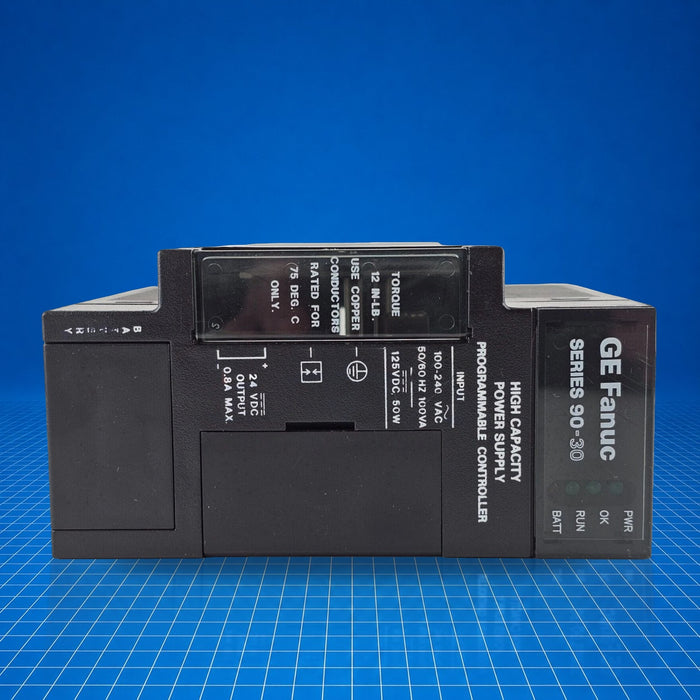

IC693PWR330F Fanuc
Original price
$0.00
-
Original price
$375.00
Original price
$375.00
$0.00
-
$375.00
Current price
$375.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

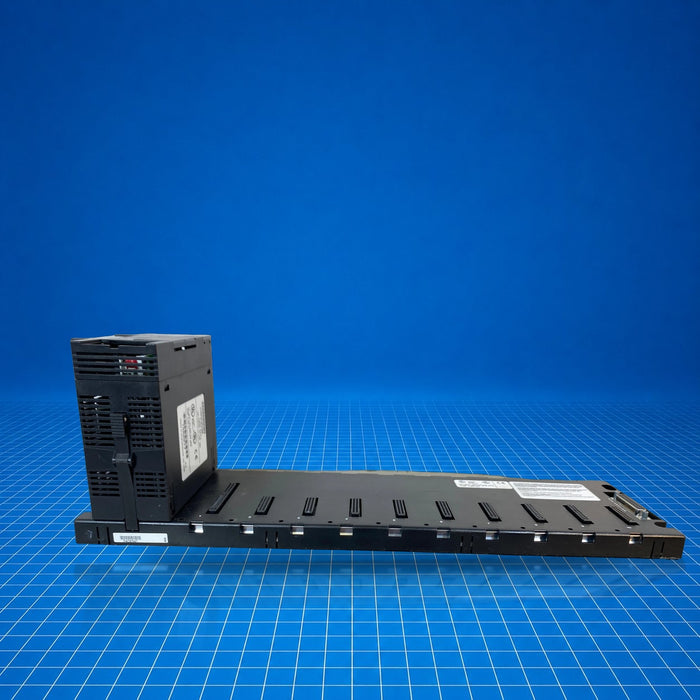

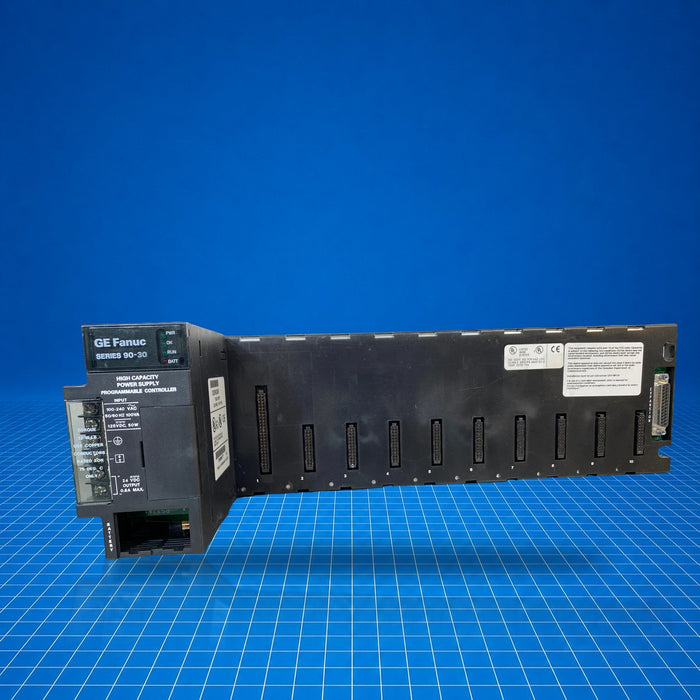

The IC693PWR330F is a high-capacity power supply module from the GE Fanuc Series 90-30 PLC platform. Installed in the leftmost rack slot, it provides backplane power and supports heavy +5 VDC loading required by large rack configurations. The IC693PWR330F delivers multiple outputs (+5 VDC, +24 VDC isolated, +24 VDC relay) and includes RS-485 communication for monitoring and configuration. Typical use cases include complex distributed PLC installations and retrofits requiring enhanced +5 VDC capacity.
Best Suited For
- High-load 90-30 PLC rack installations
- Backplane power for dense module configurations
- Applications requiring expanded +5 VDC output capacity
- Serial RS-485 monitoring or configuration
- Replacement or retrofit in existing 90-30 systems
Input voltage range AC
85-264 VAC
Input voltage range DC
100-300 VDC
Output: +5 VDC
30 W
Output: isolated 24 VDC
20 W
Output: 24 VDC relay
15 W
Technical Specifications
I/O & Electrical
Nominal input voltage
120/240 VAC or 125 VDC
Input power (AC)
90 VA
Input power (DC)
50 W
Inrush current
4 A peak, 250 ms maximum
Hold-up time
≥ 20 ms
+5 VDC output
5.0 - 5.2 V (5.1 V nominal), 30 W max
Isolated 24 VDC output
21.5 - 28 V, 20 W max
24 VDC relay output
24 - 28 V, 15 W max
Communication & Power
Communication interface
RS-485 serial port
Physical & Environmental
Weight
1.25 lbs (0.57 kg)
Certifications
CEUL
