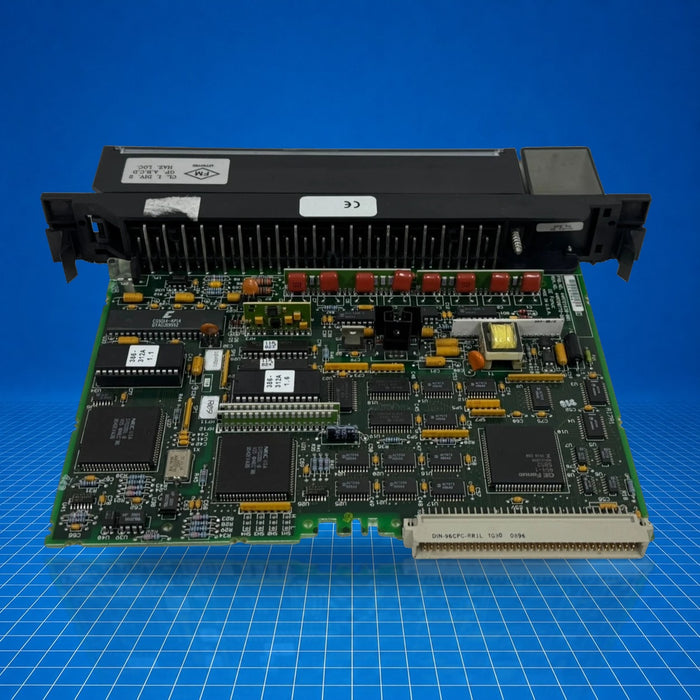

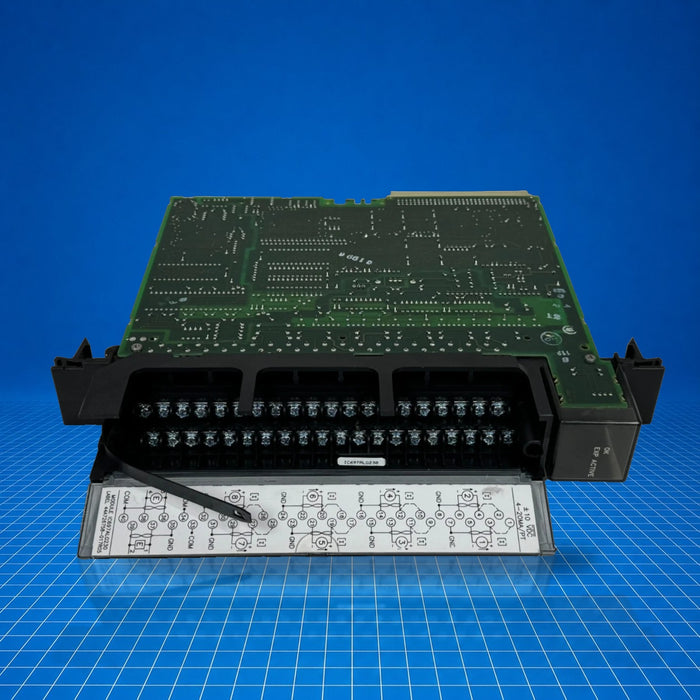

IC697ALG230 GE Fanuc

Name: IC697ALG230 GE Fanuc
Brand: GE Fanuc
SKU: IC697ALG230
Price: 400.0 USD
Availability: InStock

$400.00 - $632.50

$400.00

$400.00 - $632.50

$400.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (5) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized GE Fanuc distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The IC697ALG230 is a Series 90-70 analog base converter module from GE Fanuc (now Emerson Automation). It provides eight differential analog input channels, each independently configurable for ±10 VDC or 4-20 mA input, with 16-bit resolution. The module serves as a high-level analog interface in PLC systems, supporting connection to expander modules (IC697ALG440 current or IC697ALG441 voltage) to scale up inputs. Typical applications include process monitoring, sensor integration, and precise analog signal acquisition in industrial control systems. Part number IC697ALG230 is designed for modular analog I/O expansion in control racks.

Best Suited For

Analog signal acquisition in Series 90-70 PLC racks
Integration of field sensors providing ±10 V or 4-20 mA outputs
Modular expansion via IC697ALG440/ALG441 for scaling input channels
Applications requiring per-channel configuration and diagnostics

Channels

8 differential analog inputs

Signal types

±10 VDC or 4-20 mA

Resolution

16 bits

Update rate

2.4 ms-2.8 ms

Power requirement

0.8 A @ +5 V (4 W)

Technical Specifications

I/O & Electrical

Analog input channels

8 differential

Input signal range (voltage)

-10 V to +10 V

Input signal range (current)

4 to 20 mA (0.0-22.5 mA default)

Resolution

16 bits

Update rate

2.4 ms to 2.8 ms

Linearity

±0.02 % of full scale

Calibration accuracy (voltage)

±0.01 % FS, ±0.02 % value

Calibration accuracy (current)

±0.05 % FS, ±0.1 % value

Temperature coefficient (typical)

±5 ppm/°C

Power requirement

0.8 A @ +5 V (4 W)

Communication & Power

Compatible expander modules

IC697ALG440 (voltage), IC697ALG441 (current)

Physical & Environmental

Weight

1.81 lbs (0.82 kg)

Mounting interface

40-pin removable connector block
