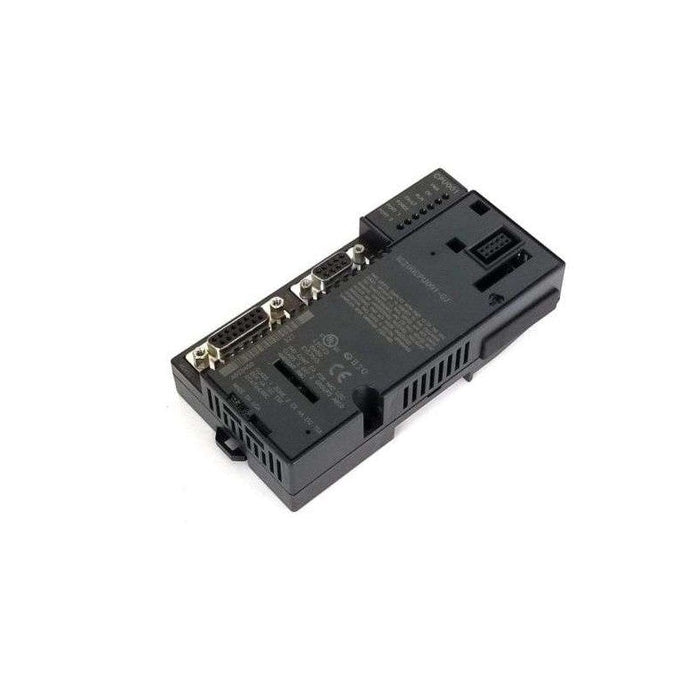

IC200CPU001 GE Fanuc
Original price
$344.85
-
Original price
$1,240.25
Original price
$344.85
$344.85
-
$1,240.25
Current price
$344.85
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The IC200CPU001 is a central processing unit (CPU) module in the Versamax platform from GE Fanuc (now under Emerson Automation). It executes Boolean logic and floating-point operations for discrete and analog I/O in compact PLC systems. The CPU provides onboard non-volatile program storage with battery-backed real-time clock and two serial communication ports. It is typically used in machine-level control, distributed I/O, and SCADA interface applications. IC200CPU001 is designed for DIN-rail or panel mounting, offering up to 2,048 discrete input and output points.
Best Suited For
- Local discrete I/O control in Versamax systems
- Distributed I/O architectures via RS-232/RS-485
- Timed logic or scheduling using real-time clock
- Floating-point processing in compact applications
Discrete I/O capacity
2048 inputs / 2048 outputs
Configurable memory
34 KB (program, registers, analog words)
Boolean execution speed
1.8 ms per 1 K contacts
Serial ports
1 × RS-232, 1 × RS-485
Backplane current draw
140 mA @ 5 V; 100 mA @ 3.3 V
Technical Specifications
I/O & Electrical
Discrete inputs
2048 points
Discrete outputs
2048 points
Internal discrete bits
1024 points
Temporary bits
256 points
Global discrete bits
1280 points
Communication & Power
Configurable memory
34 KB (program/registers/analog words)
Memory storage type
Flash and battery-backed RAM
Real-Time Clock accuracy
100 ppm (±9 sec/day)
Serial ports
RS-232 and RS-485
Supported protocols
SNP Slave, RTU Slave, Serial I/O
