Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

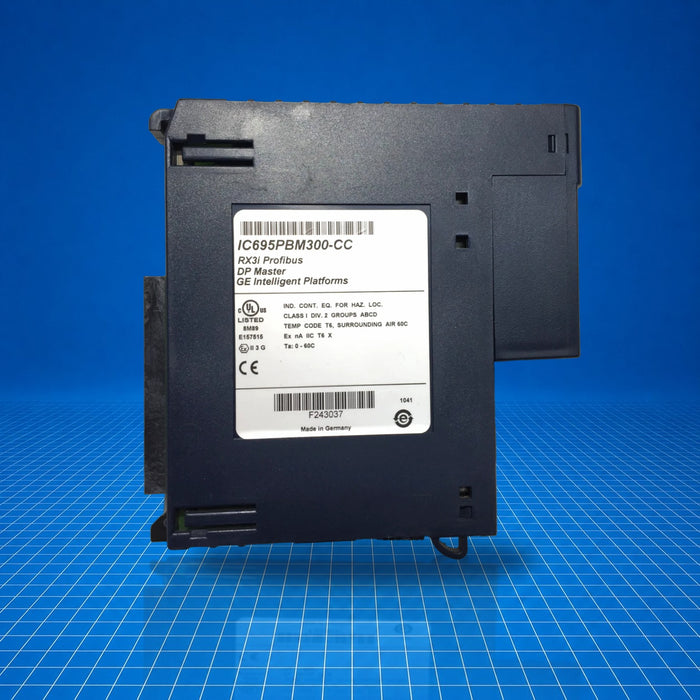

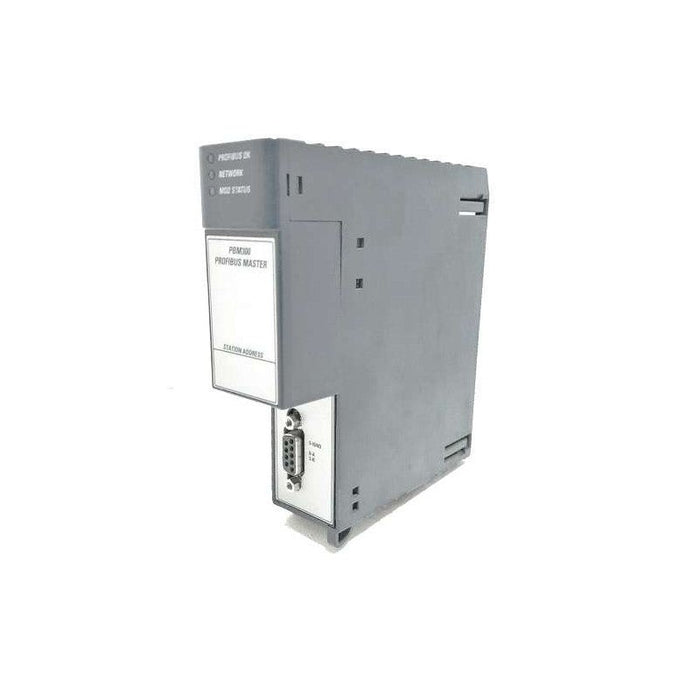

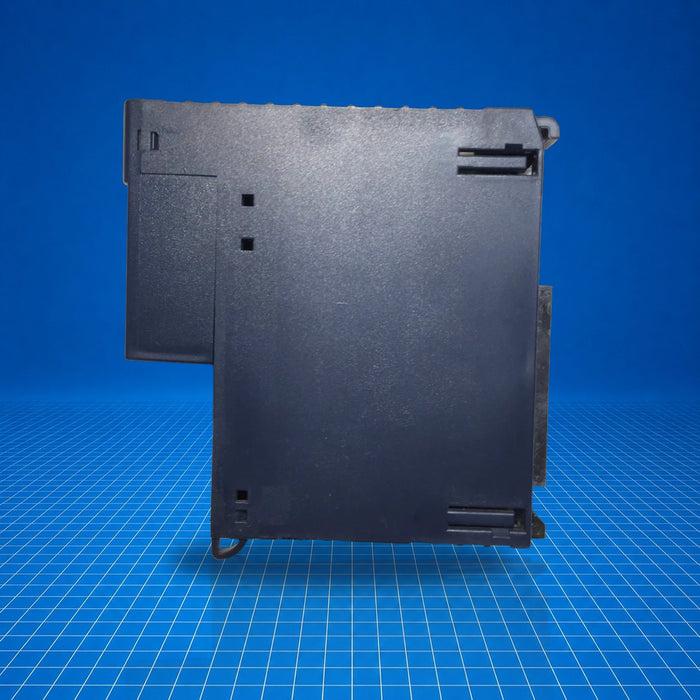

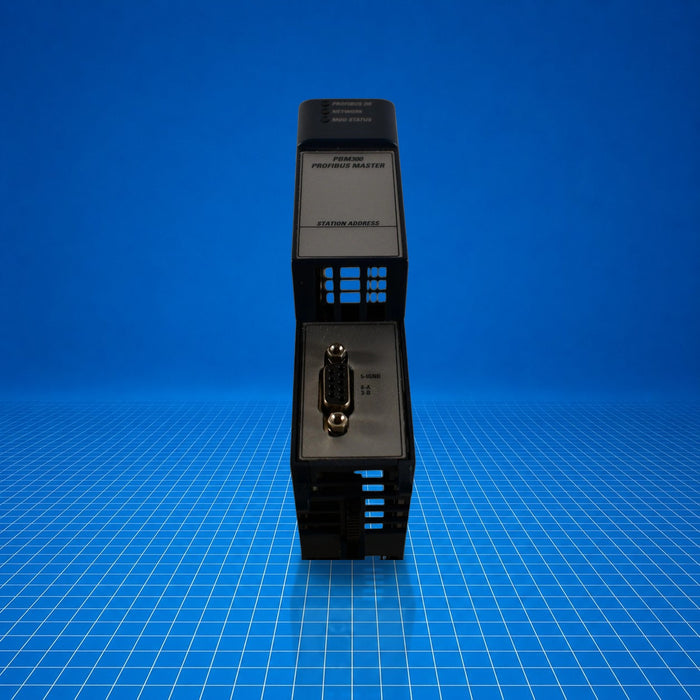

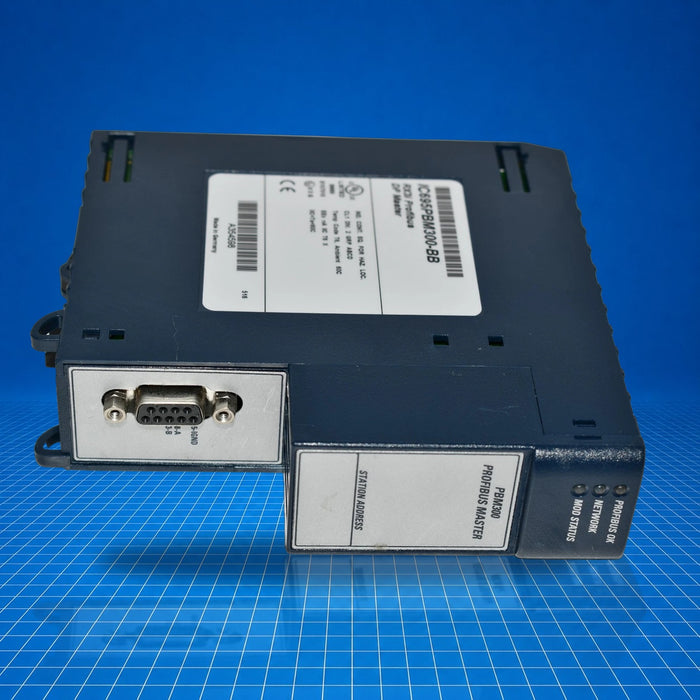

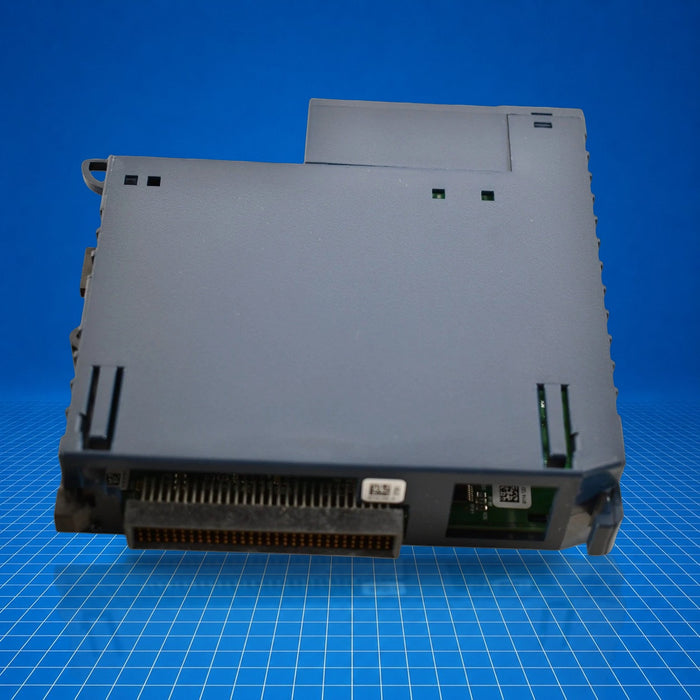

The IC695PBM300 is a GE Fanuc (now Emerson PACSystems RX3i) PROFIBUS-DP Master module employed in industrial control systems to interface the RX3i PAC controller with PROFIBUS-DP field networks. It occupies a single backplane slot and allows a PACSystems RX3i CPU (firmware v2.9 or later) to act as master to a PROFIBUS network, supporting up to 125 DP-slave devices. Typical uses include integration of distributed I/O, drive control, and PROFIBUS-based instrumentation within an RX3i rack.
Best Suited For
- Connecting RX3i CPU to PROFIBUS-DP networks
- Distributed I/O integration over PROFIBUS-DP
- Fieldbus communication for instrumentation or drives
- RX3i control systems requiring PROFIBUS master capability
PROFIBUS-DP slaves supported
125
Per-slave I/O data
244 Bytes input / 244 Bytes output
Total I/O data capacity
3 584 Bytes input / 3 584 Bytes output
Backplane current draw
440 mA @ 3.3 V DC
Operating temperature
0 °C to 60 °C
Technical Specifications
I/O & Electrical
Current draw
440 mA @ 3.3 V DC
Per-slave input data size
244 Bytes
Per-slave output data size
244 Bytes
Total input data capacity
3 584 Bytes
Total output data capacity
3 584 Bytes
Communication & Power
Interface
One PROFIBUS master port (RS-485)
Baud rates supported
9.6 k, 19.2 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M baud
Communication protocol support
PROFIBUS-DP, DP-V1 read/write and alarms
Status diagnostics
Slave status bit array, network diagnostic counters, DP master diagnostic counters, slave diagnostic address
Firmware update method
Via host CPU / WinLoader
Physical & Environmental
Mounting
Single slot in RX3i universal backplane
Weight
0.31 lbs (0.14 kg)
Operating temperature
0 °C to 60 °C
Storage temperature
-40 °C to 85 °C
Backplane compatibility
RX3i backplane, host CPU firmware v2.9+
