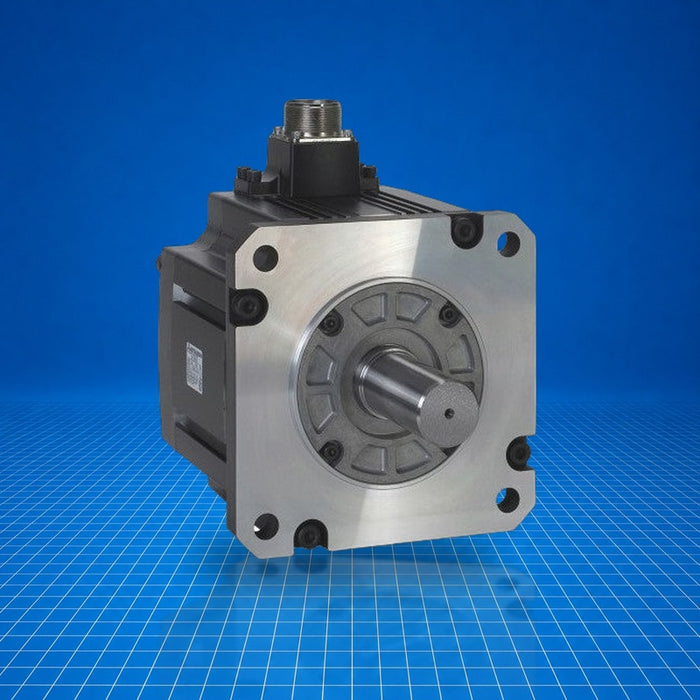

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
HF-SP102B Mitsubishi
Original price
$948.72
-
Original price
$1,184.70
Original price
$948.72
$948.72
-
$1,184.70
Current price
$948.72
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Mitsubishi HF-SP102B is a 1.0 kW general-purpose, 3-phase AC servo motor in Mitsubishi's HF-SP "2000 r/min series". It integrates a built-in absolute encoder for position feedback and includes an electromagnetic brake. Rated for 200-230 V AC, 50/60 Hz, it is flange-mountable (130 × 130 mm) with IP67 protection. It is used for precise motion control in manufacturing, CNC machinery, assembly, and pick-and-place equipment. HF-SP102B supports dynamic speed and torque requirements in industrial servo control systems.
Best Suited For
- Integration with MR-J3 servo amplifiers
- Flange-mount installation in CNC machines
- Applications requiring IP67 wash-down protection
- Precise positioning with built-in absolute encoder
- Brake-controlled stop in automation systems
Rated output
1.0 kW
Rated speed
2000 r/min
Maximum torque
14.3 N·m
IP rating
IP67
Mounting
130 × 130 mm flange
Technical Specifications
I/O & Electrical
Power supply
200-230 V AC, 50/60 Hz
Rated output
1.0 kW
Rated torque
4.77 N·m
Maximum torque
14.3 N·m
Rated speed
2000 r/min
Maximum speed
3000 r/min
Rated current
5.3 A
Maximum current
15.9 A
Communication & Power
Feedback
Built-in absolute encoder (18-bit, 262144 p/rev)
Physical & Environmental
Protection
IP67
Mounting method
130 × 130 mm flange
Inertia (with brake)
14.0 × 10⁻⁴ kg·m²
Moment of inertia (standard)
11.9 × 10⁻⁴ kg·m²
