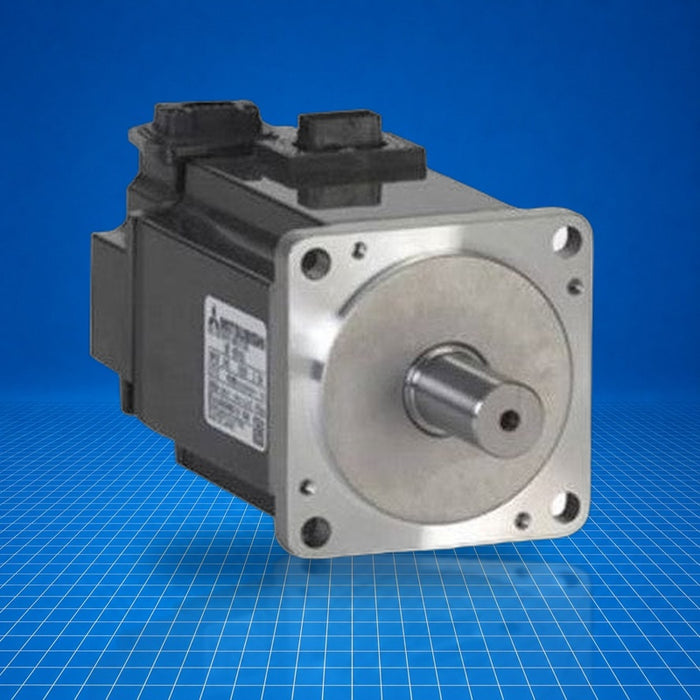

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
HG-SR52 Mitsubishi
Original price
$1,375.00
-
Original price
$1,750.00
Original price
$1,750.00
$1,375.00
-
$1,750.00
Current price
$1,750.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The HG-SR52 is a rotary AC servo motor from Mitsubishi Electric's HG-SR series within the MELSERVO-J4 platform. With a 0.5 kW (500 W) continuous output, it provides 2.4 Nm rated torque and up to 7.2 Nm peak torque, operating at a nominal 2000 rpm and maximum 3000 rpm. It integrates a 22-bit encoder and IP67-rated self-cooling construction. The HG-SR52 functions as a precise motion actuator in servo control systems, suited for mid-range torque positioning, conveyor indexing, pick-and-place, or machine tool axis control.
Best Suited For
- Mid-range precision positioning axes
- Conveyor indexing applications
- Pick-and-place systems
- Retro-fit into MR-J series servo systems
Output power
0.5 kW
Rated torque
2.4 Nm
Maximum torque
7.2 Nm
Protection rating
IP67
Encoder resolution
22-bit (4 194 304 p/rev)
Technical Specifications
I/O & Electrical
Rated current
2.9 A
Maximum current
9 A
Input voltage
200 V AC
Communication & Power
Encoder
22-bit, 4 194 304 p/rev
Physical & Environmental
Cooling / Structure
Self-cooling
Protection rating
IP67
Ambient temperature (operation)
0-40 °C
Ambient humidity (operation)
≤ 80 % RH (no condensation)
Weight
4.8 kg
Dimensions (W × D × H)
130 × 173.5 × 177.5 mm
