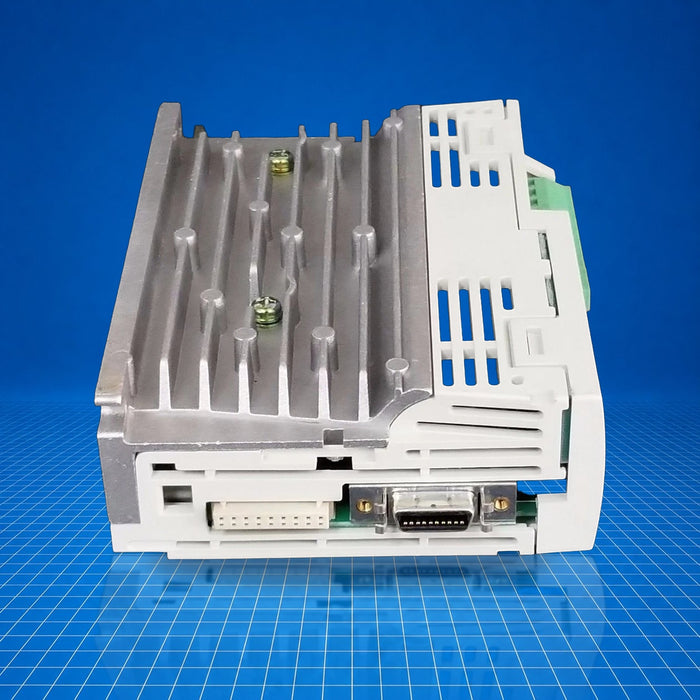

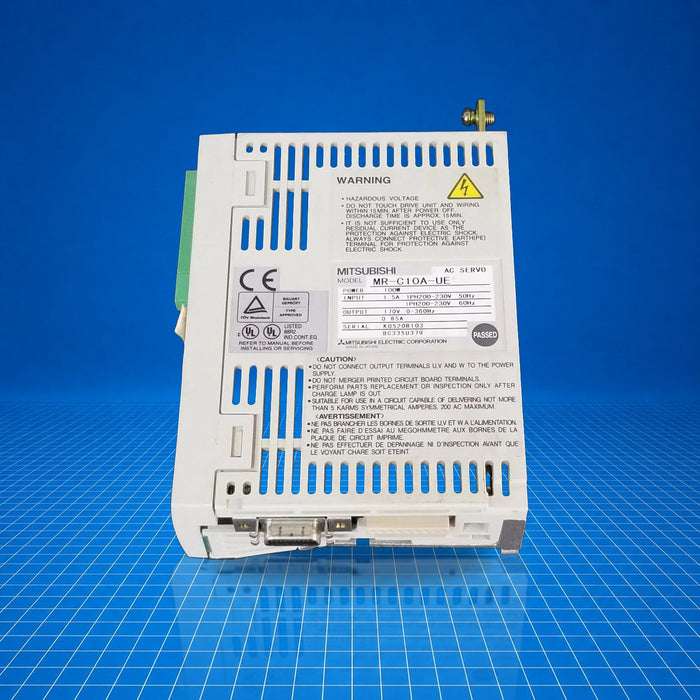

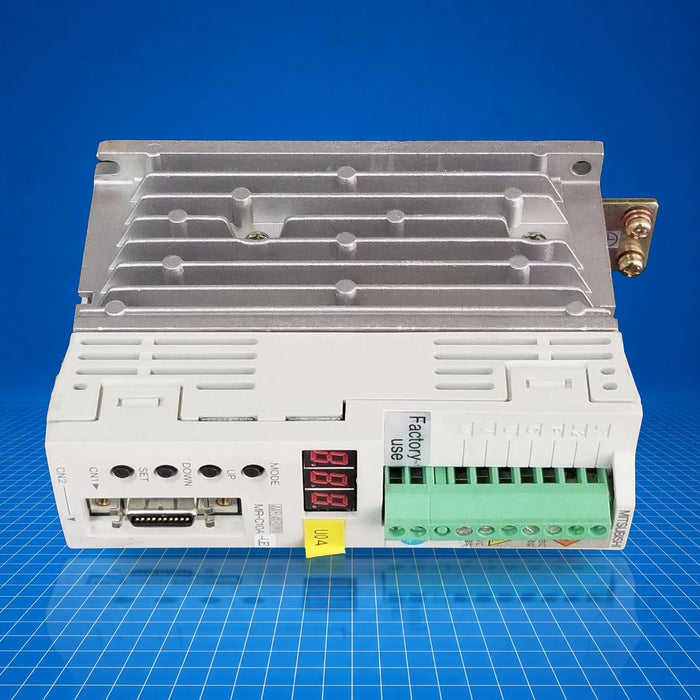

MR-C10A Mitsubishi
Original price
$400.00
-
Original price
$953.65
Original price
$400.00
$400.00
-
$953.65
Current price
$400.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The MR-C10A is a Mitsubishi Electric general-purpose AC servo amplifier in the MR-C series. It forms part of a matched servo system, delivering position control to compatible HC-PQ servomotors via pulse-train input. Typically mounted in control panels for machine automation, it handles single-phase AC power and supports functions including auto-tuning, diagnostics, and status display. MR-C10A is used in motion control applications such as positioning axes in machining centers, assembly equipment, and robotics.
Best Suited For
- Controlling HC-PQ033/053/13 series servomotors
- Panel-mounted single-phase AC motion control
- Position control via pulse-train input
- Applications needing real-time auto-tuning and diagnostics
Rated output current
0.85 A
Max output current
5.0 A
Supply voltage
Single-phase AC 200-230 V, 50/60 Hz
Protection type
Open-type; install in metal cabinet
Weight
0.6 kg (1.323 lb)
Technical Specifications
I/O & Electrical
Rated output current
0.85 A
Maximum output current
5.0 A
Power supply voltage
Single-phase AC 200-230 V 50/60 Hz
Permissible voltage fluctuation
AC 170-253 V
Pulse input
Max 200 kpps pulse-train input
Communication & Power
Control pulse input
Pulse-train position control
Command pulse multiple
Electronic gear A/B multiple; 1-199 ×; 1/50 < A/B < 20
RS-232C interface
Optional via MR-C-T01 unit
Physical & Environmental
Ambient operating temperature
0-50 °C
Storage temperature
-20 to 65 °C
Humidity
90 % RH or below (non-condensing)
Weight
0.6 kg
Mounting requirement
Panel-mount, metal enclosure, UL 50, pollution degree 2
Short-circuit current rating (SCCR)
Up to 100 kA rms symmetrical, 500 V max
