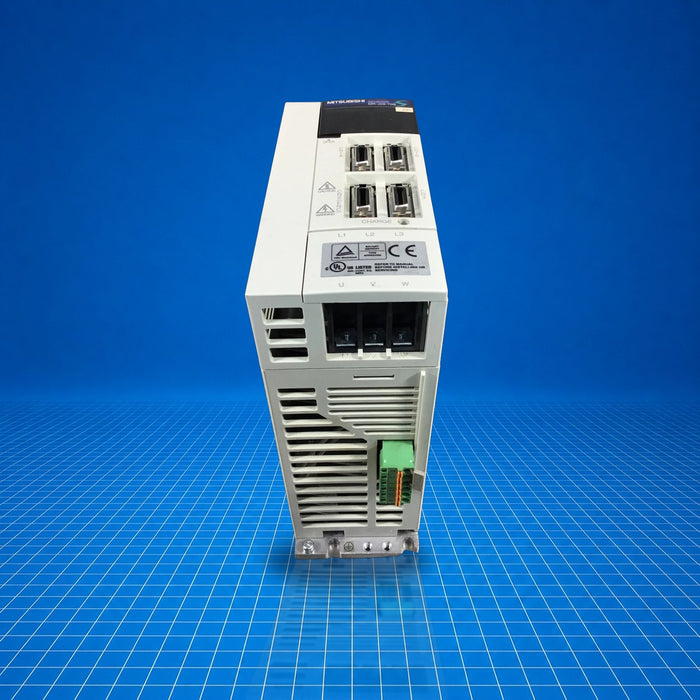

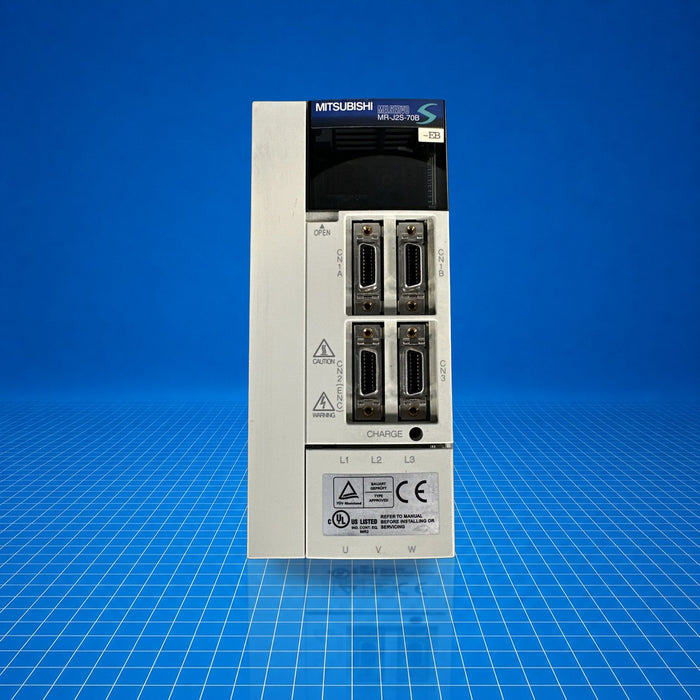

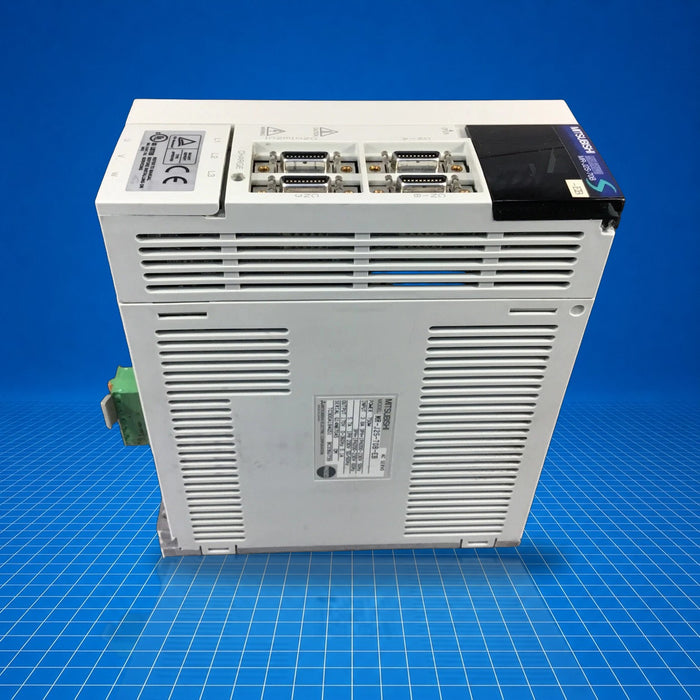

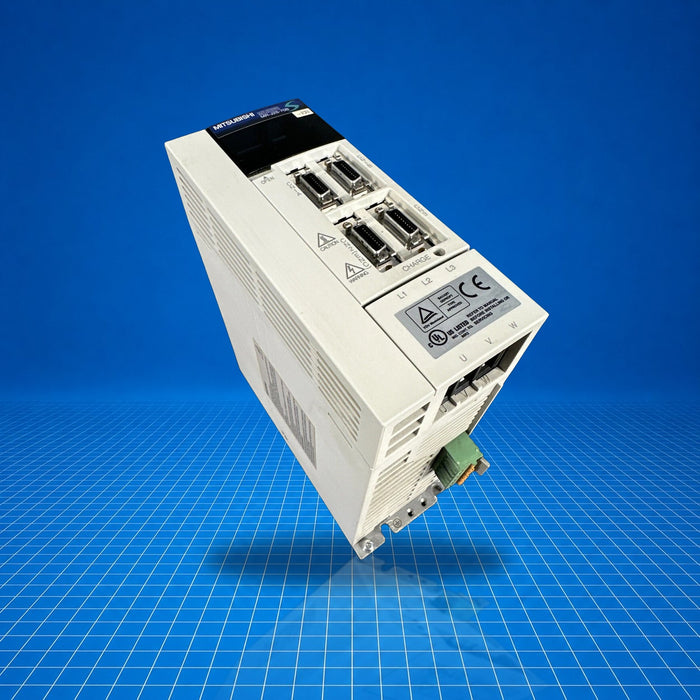

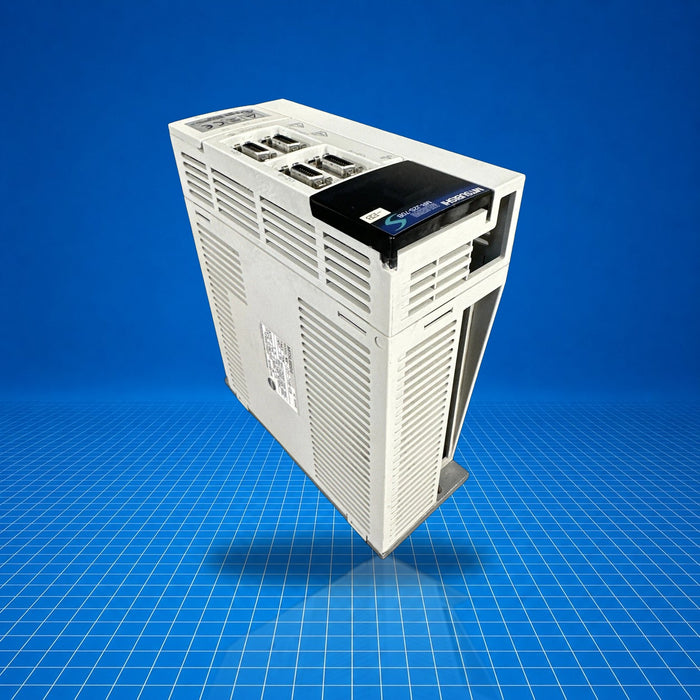

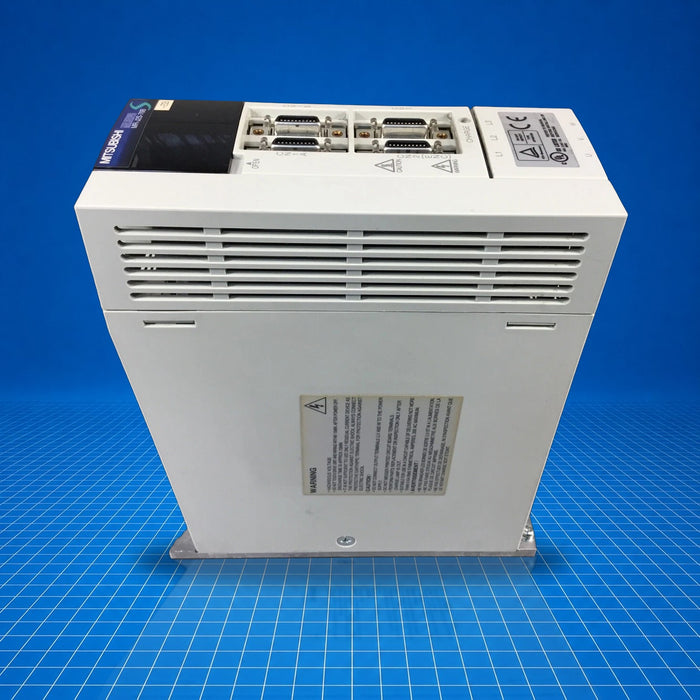

MR-J2S-70B Mitsubishi
Original price
$364.47
-
Original price
$2,450.00
Original price
$364.47
$364.47
-
$2,450.00
Current price
$364.47
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The MR-J2S-70B is a Mitsubishi Electric general-purpose AC servo amplifier from the MELSERVO-J2S (MR-J2S-B) family. It accepts three-phase 200-230 VAC (50/60 Hz) or single-phase 230 VAC input and provides closed-loop PWM current control to drive compatible HC/HA servo motors. In a control system, this amplifier modulates motor torque and speed, providing protection functions and interfaces for motion control. Applications typically include machine tools, assembly lines, robotics, and packaging machinery where precise motion control is required.
Best Suited For
- Mid-power servo control for HC/HA series motors
- Machines requiring 200-230 VAC single or three-phase input
- Applications needing built-in protection (overcurrent, overspeed, regeneration)
- Installation in IP00 indoor environments where forced-cooling is acceptable
Power supply
3-phase 200-230 VAC or single-phase 230 VAC
Control method
Sine-wave PWM / current control
Protection functions
Overcurrent, regeneration-OV, overload, overspeed, encoder fault, undervoltage, power failure
Cooling / Structure
Self-cooled, open (IP00)
Weight
1.7 kg (3.75 lb)
Technical Specifications
I/O & Electrical
Power supply (voltage/frequency)
3-phase 200-230 VAC, 50/60 Hz or single-phase 230 VAC, 50/60 Hz
Permissible voltage fluctuation
3-phase 170-253 VAC; single-phase 207-253 VAC
Permissible frequency fluctuation
Within ±5 %
Communication & Power
Control method
Sine-wave PWM control, current control
Dynamic brake
Built-in
Protective functions
Overcurrent shut-off; regenerative over-voltage shut-off; overload (electronic thermal relay); servo motor overheat; encoder error; regeneration error; undervoltage; instantaneous power failure protection; overspeed; excessive error
Physical & Environmental
Structure / Cooling
Self-cooling, open (IP00)
Ambient temperature (operation)
0 to 55 °C (non-freezing)
Ambient temperature (storage)
-20 to 65 °C (non-freezing)
Ambient humidity
90 %RH or less, non-condensing (operation & storage)
Environment
Indoors, no direct sunlight, no corrosive/flammable gas, oil mist, dust, dirt
Altitude
1000 m or less above sea level
Vibration
≤5.9 m/s²
Weight
1.7 kg
Certifications
ENULcUL
