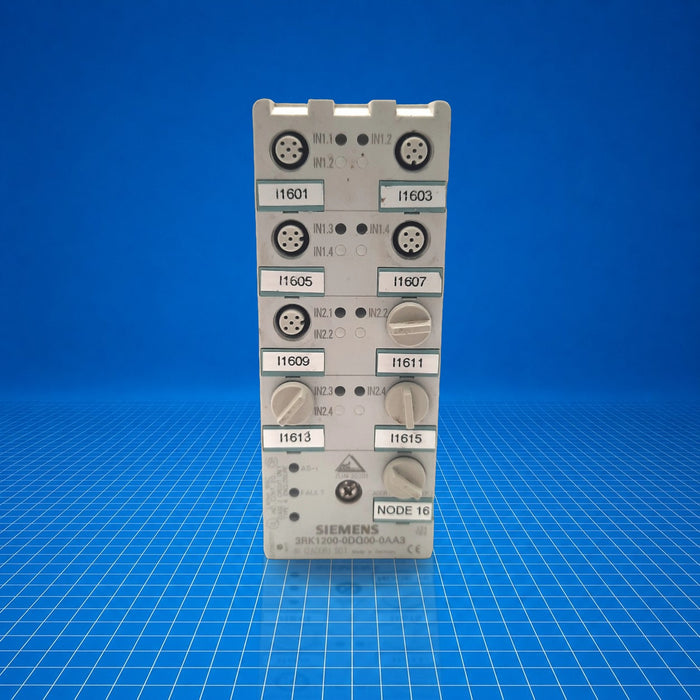

3RK1200-0DQ00-0AA3 Siemens
Original price
$824.86
-
Original price
$987.47
Original price
$987.47
$824.86
-
$987.47
Current price
$987.47
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

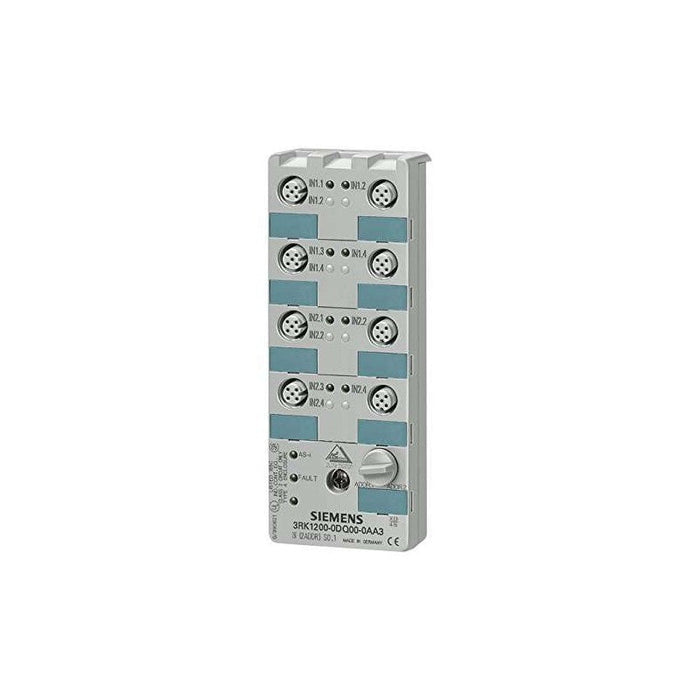

The 3RK1200-0DQ00-0AA3 is a Siemens AS-Interface (AS-i) compact digital input module from the K60 IP67-sealed family, integrating eight digital inputs via M12 sockets. It connects field-level signals to AS-i networks and is suited for applications in industrial environments requiring direct connection of sensors under harsh conditions. Typical use cases include machine-mounted input expansion, modular or distributed I/O architectures, and compact automation stations with minimal enclosure protection.
Best Suited For
- AS-Interface field-level digital input expansion
- Machine-mounted sensor integration in harsh environments
- IP67-rated distributed I/O installations
- Compact automation systems requiring eight digital inputs
Digital inputs
8 x DI
AS-Interface network
AS-i interface
Ingress protection
IP67
Connection type
8 x M12 sockets
Weight
0.190 kg
Technical Specifications
I/O & Electrical
Digital inputs
8 DI
Max input current per module
200 mA
Communication & Power
Network interface
AS-Interface
Physical & Environmental
Ingress protection
IP67
Connection method
M12 sockets (Y-II assignment)
Weight
0.190 kg
Country of origin
Czech Republic
