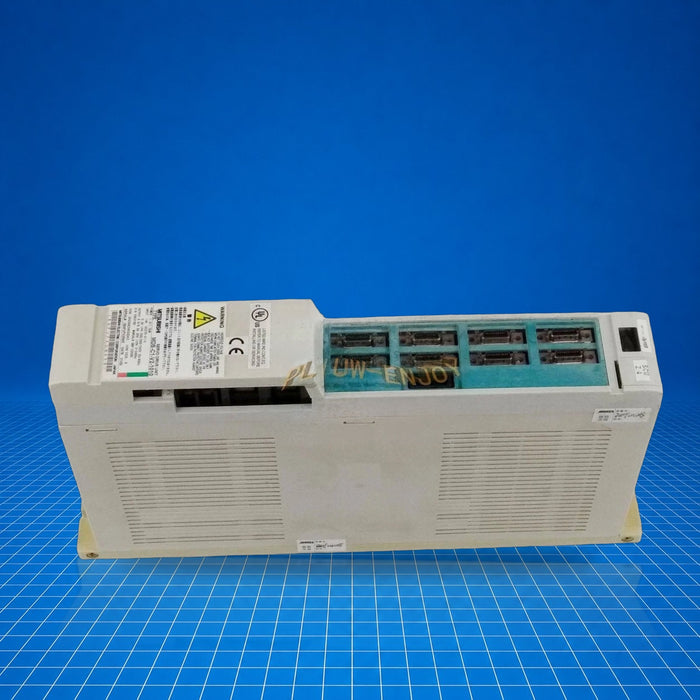

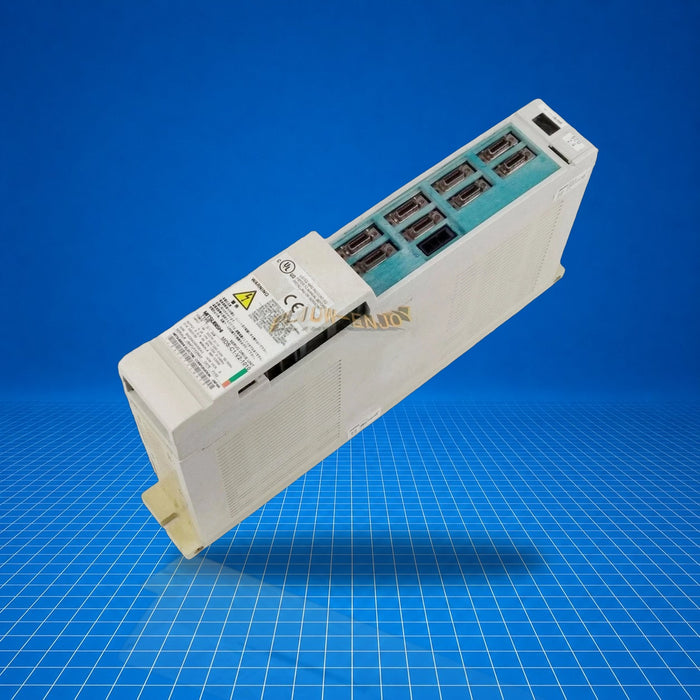

MDS-C1-V2-1010 Mitsubishi
Original price
$0.00
-
Original price
$3,300.00
Original price
$3,300.00
$0.00
-
$3,300.00
Current price
$3,300.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The MDS-C1-V2-1010 is a dual-axis AC servo drive from Mitsubishi's MDS-C1-V2 family. It provides independent drive control for two servo motors in CNC or motion control systems. The unit supports regenerative and dynamic braking, dual-axis output at approximately 1.0 kW per axis, and uses sine-wave PWM / current control. It integrates into factory automation systems for machine tool control, robotics, or general motion axis applications. MDS-C1-V2-1010 is typically used where moderate dual-axis servo amplification is required.
Best Suited For
- Dual-axis servo applications in CNC systems
- Machine tool axis amplification
- Mid-power motion control installations
- Retrofit or replacement of legacy MDS-C1 units
Rated output power per axis
1.0 kW + 0.3 kW
Output current per axis
6.8 A + 6.8 A
Input voltage range
270 to 311 V DC (input) / 200-230 V AC (control) 50/60 Hz
Braking methods
Regenerative braking and dynamic brakes
Cooling method
Forced air cooling (fin)
Technical Specifications
I/O & Electrical
Rated output power
1.0 kW + 0.3 kW
Rated output current
6.8 A + 6.8 A
Input voltage (DC)
270 to 311 V DC
Control power voltage
200 to 230 V AC, 50/60 Hz
Max control power current
0.2 A
Max rush current
35 A (≤ 6 ms)
Communication & Power
Control method
Sine-wave PWM / current control
Braking
Regenerative and dynamic braking
Physical & Environmental
Degree of protection
IP20 (excluding terminal block)
Cooling method
Forced air cooling (fin)
Earth leakage current
4 mA (max for 2 axes)
